NESTLE Octoliner

Multi-liner for fast work

Top Features

  • Manual inclination possible in one axis: ± 5 % electronically and additionally ± 8 % mechanically via the adjustable feet.
  • Extremely simple operation for fast work.
  • Clear and stable laser lines due to motorised self-levelling no wobbling of the line as with pendulum lasers.
  • Versatility in use due to 360° horizontal line in combination with exactly perpendicular vertical planes.

Variants

Variant

Technical Data

Working range* without/with receiver approx. 30 m / approx. 100 m
Working time 4 lines = 7 hrs / 2 lines = 8 hrs.
Weight 1520 g
Threaded connection 5/8"
Laser 635 nm, class 2
Dimensions Ø 15 cm x 22 cm
Optical angle 360° horizontal / 4 x vertical
Pulse mode Yes
Protection class IP54
Self-levelling 4°
Power supply Integrated rechargeable battery or 4 x AA
Tolerance ± 1.5 mm per 10 m
Product Number (PID) 16100001

Highlights at a Glance

  • 4 switchable vertical lines at a 90° angle form the upper plumb point.
  • In addition, a perpendicular point downwards is created.
  • The Octoliner has motorised self-levelling in a range of 4°.
  • With the 5/8 thread connection, the laser can also be mounted on a tripod.
  • The Octoliner is also suitable for use with a receiver for line lasers.
  • Fine side drive for exact alignment of the vertical planes.
  • Self-levelling can be switched off if necessary, e.g. to project crooked lines.
  • Adjustable leg screws to compensate for unevenness outside the self-levelling range.

Description

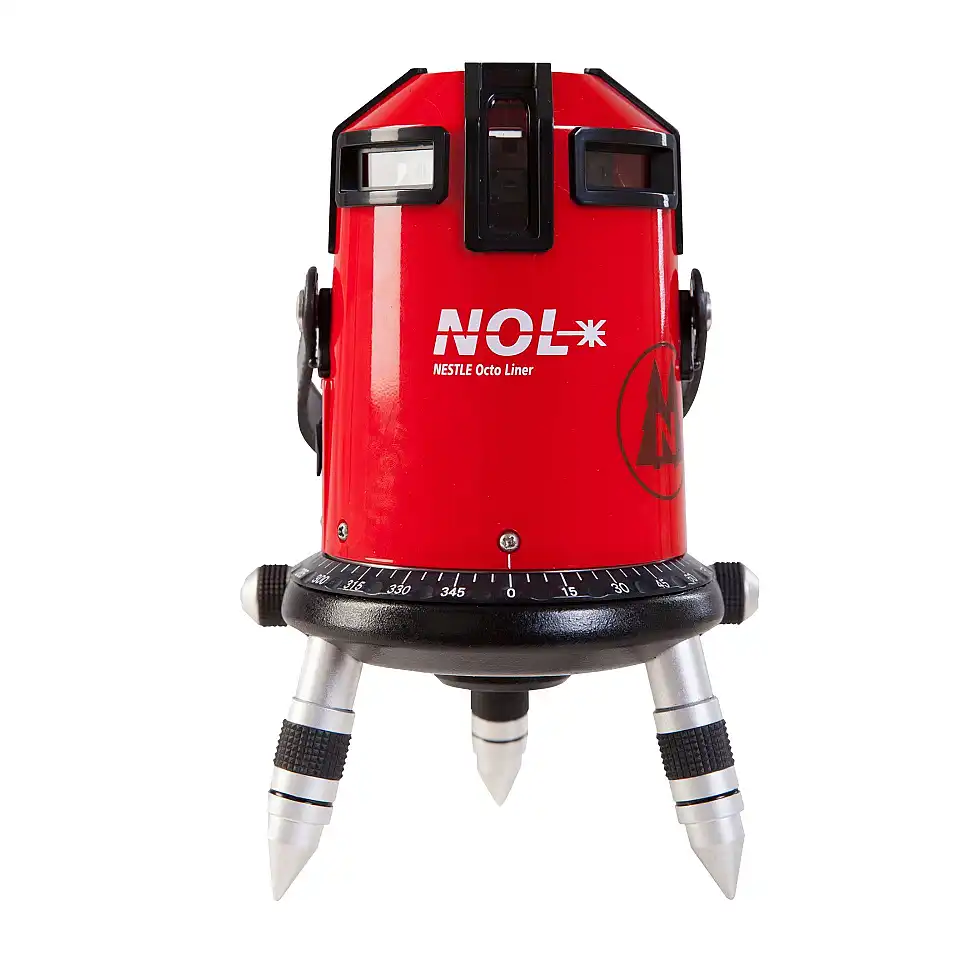

The NESTLE Octoliner is an electronic, self-levelling cross line laser with superior accuracy. It can project four vertical lines at right angles to each other, as well as a 360° horizontal line, a plumb point on the floor and a laser cross on the ceiling with an accuracy of ±1.5 mm/10 m. It levels itself quickly and stably within a range of 4°. It self-levelling is fast and stable within a range of 4°. Self-levelling can be switched off to project laser beams at an angle if required. Another advantage is its adjustable 360° pitch circle for easy angle measurements. The side fine drive supports the exact alignment of the vertical planes.

Scope of Delivery

Octoliner
Carrying case
Battery
Target board
Glasses
Charger
