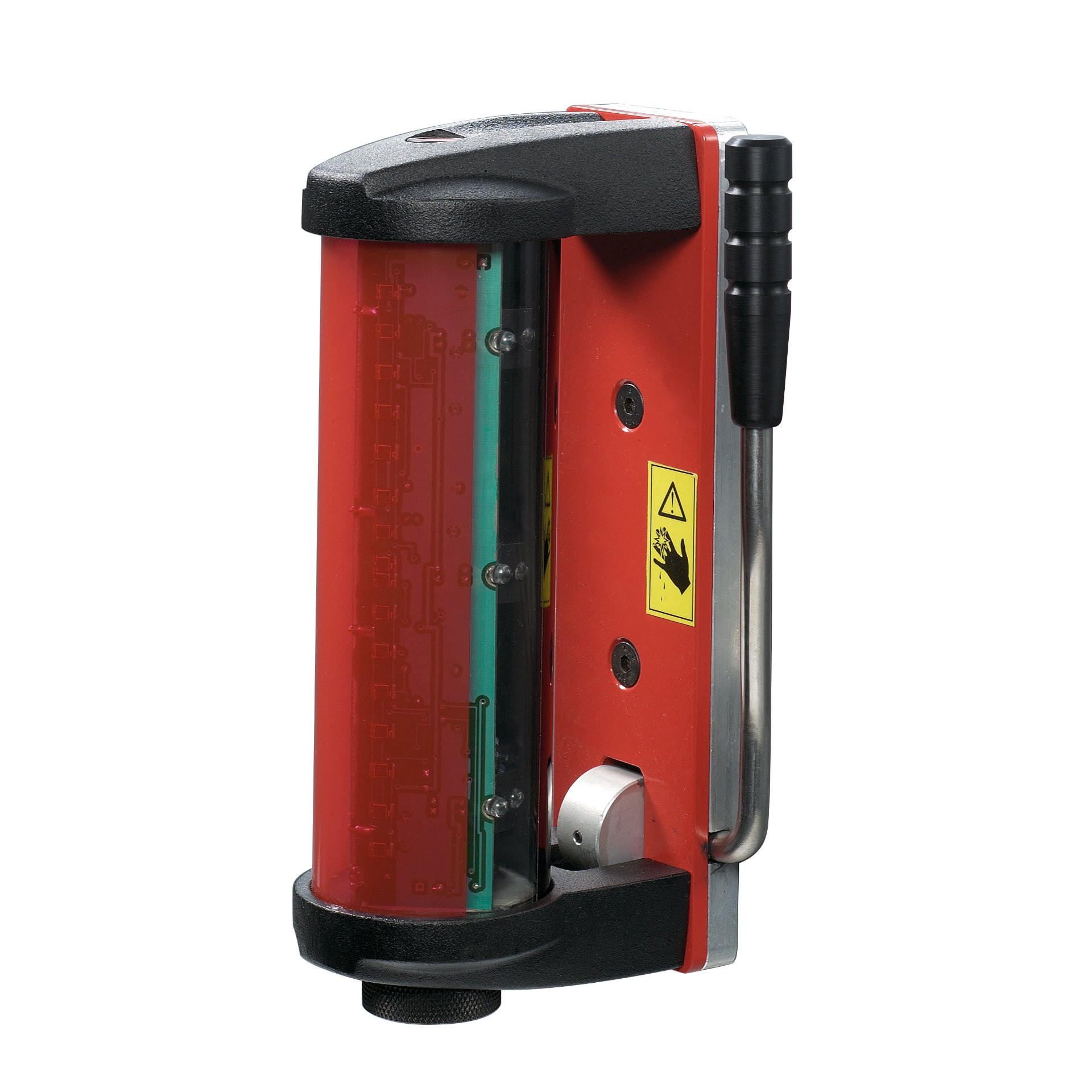

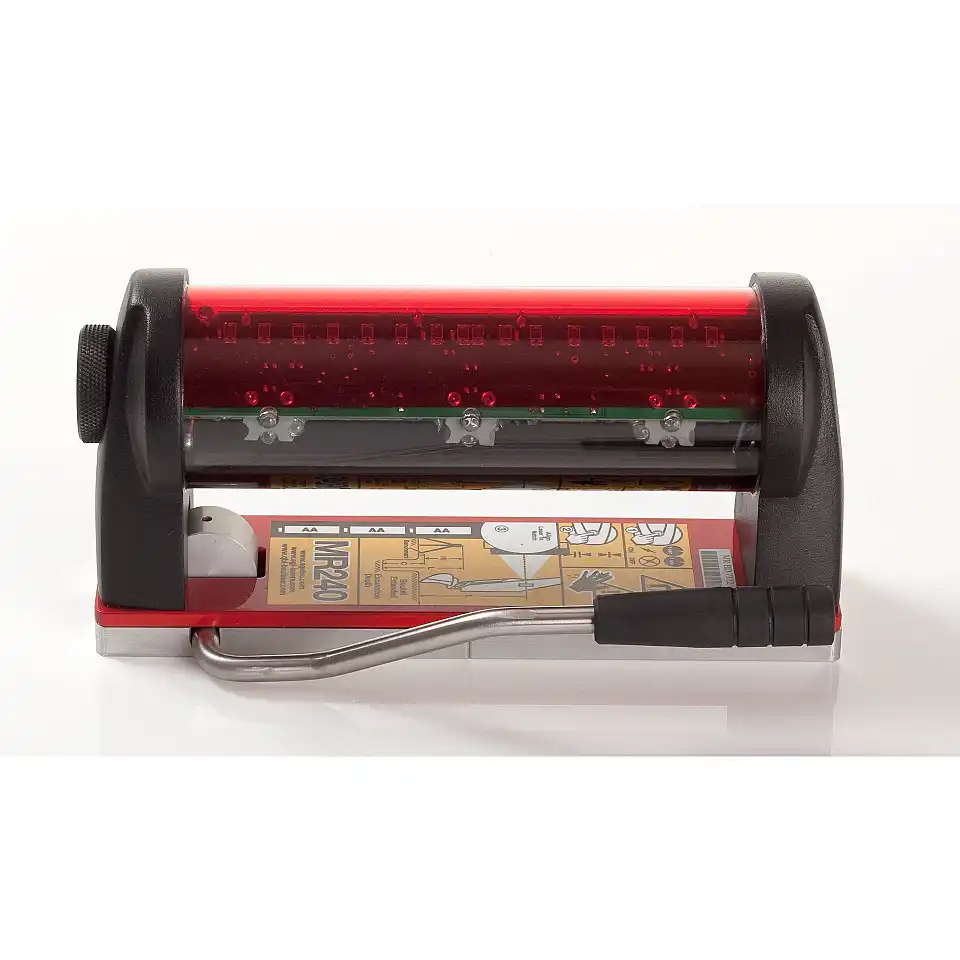

GeoMax MR240 Machine Receiver

Ideal for use with trenchers and mini excavators

Top Features

  • Accurate terrain height/soil depth information for all visual machine control applications.
  • Extra-strong magnets made from rare earths.
  • Robust and waterproof construction.

Variants

Variant

Technical Data

Battery power 130 Hours
Reception area 14 cm
Receiving angle 240°
Accuracy Fine 6 mm
Accuracy Coarse 30 mm
Weight 2200 mm
Dimensions 220 x 120 x 100 mm
Reach 200 m
Protection class IP67
Power supply 3 x AA
Product Number (PID) 27600000

Highlights at a Glance

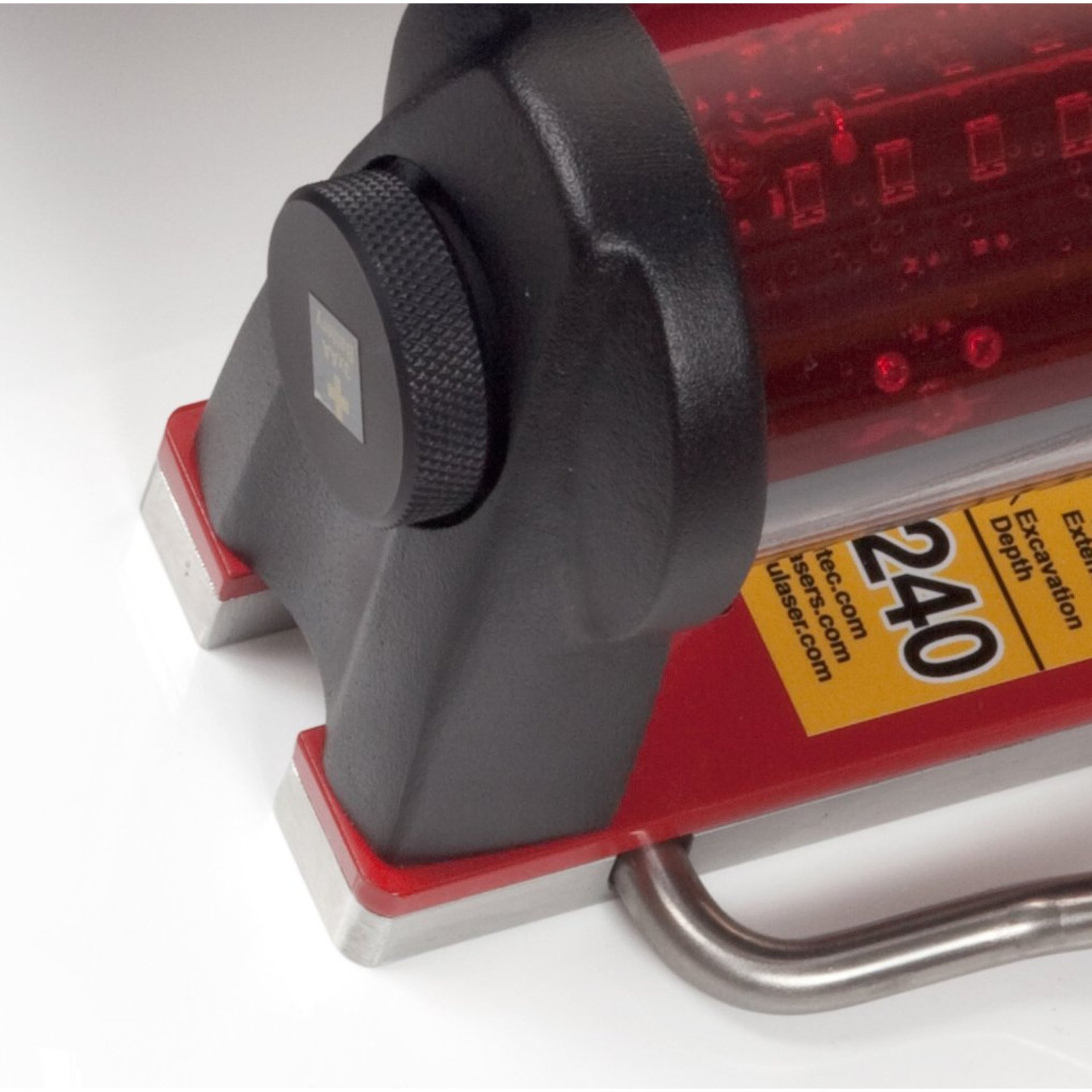

  • Equipped with magnetic holder with extra-strong rare earth magnets.

Description

The MR240 machine receiver is ideal for use with trenchers and mini excavators. The LED display lets you know which direction to move in at all times. The MR240 provides accurate height information for all optical machine control applications with a reception angle of 240°. The strong magnet makes the MR240 easy to mount, even without a mounting bracket.

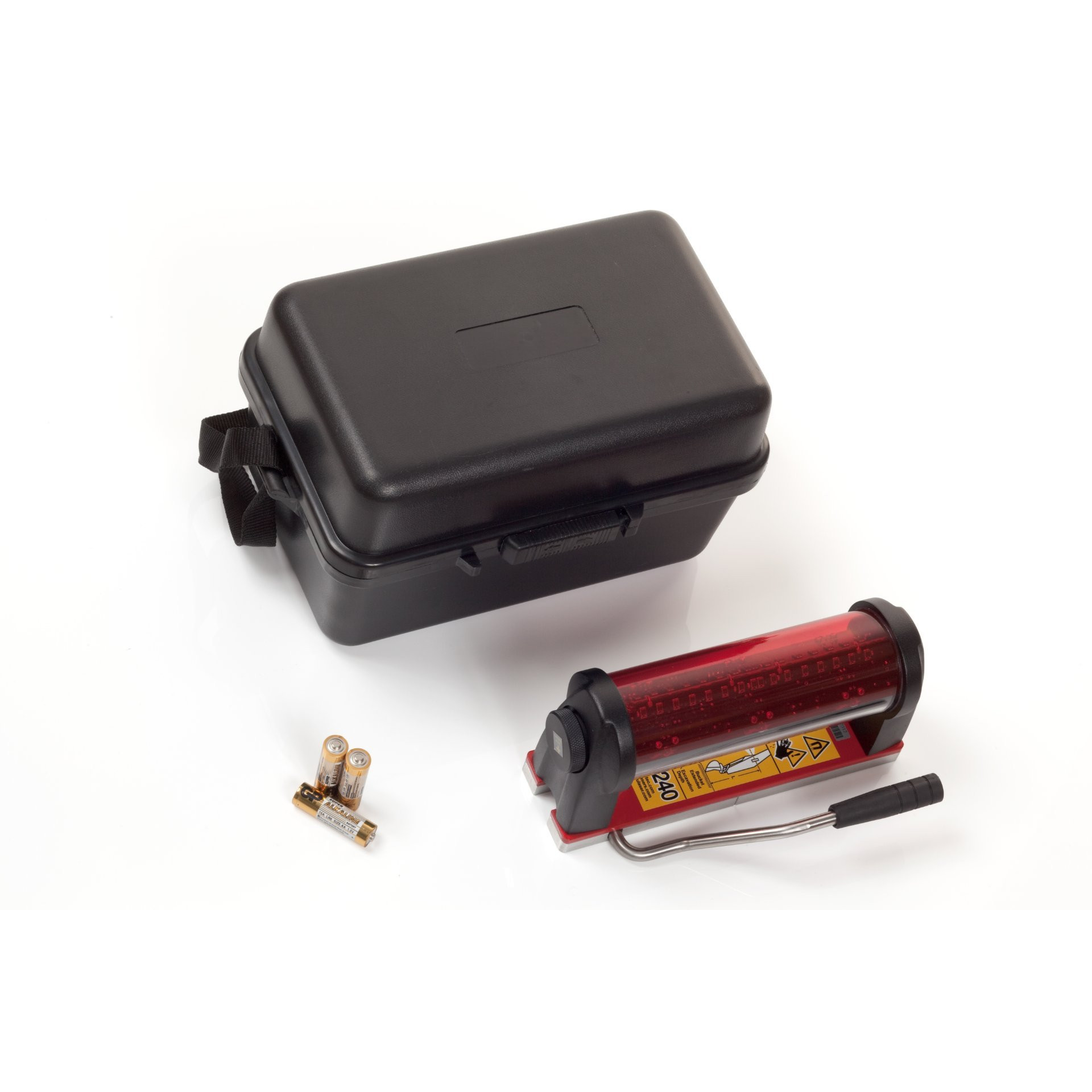

Scope of Delivery

GeoMax MR240 Machine Receiver
Suitcase
Batteries
Soil nail
