GeoMax MR360RE Machine Receiver Set Clamp
Set of machine receiver and remote display MD360
Variants
Variant
Technical Data
| Fastening | Clamp |
|---|---|
| Reception area | 25 cm |
| Receiving angle | 360° |
| Accuracy Fine | 6 mm |
| Accuracy Coarse | 12 mm |
| Reach | 200 m |
| Power supply | MiMh batteries - rechargeable |
| Vertical display | ± 5° |
| Product Number (PID) | 27608000 |
Description

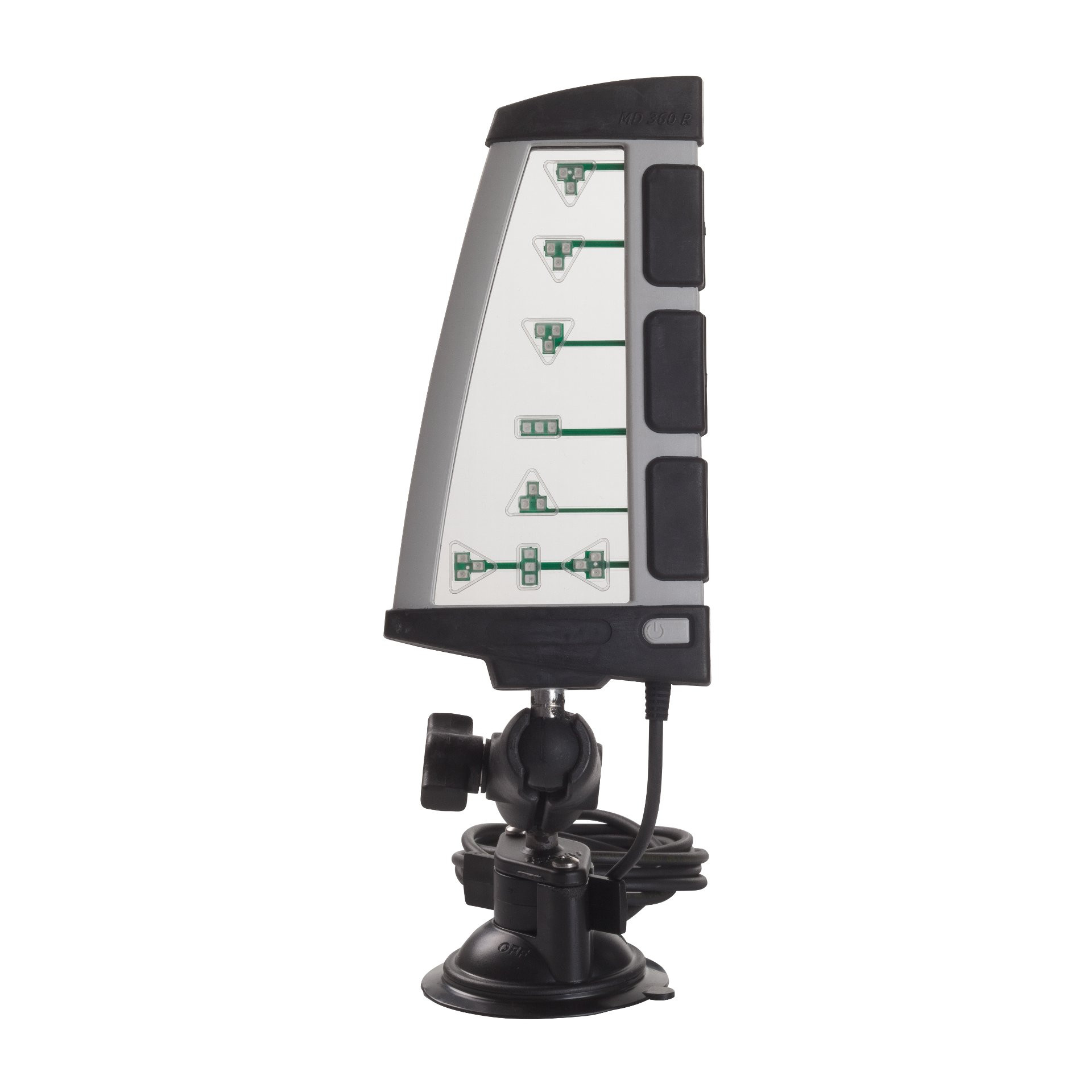

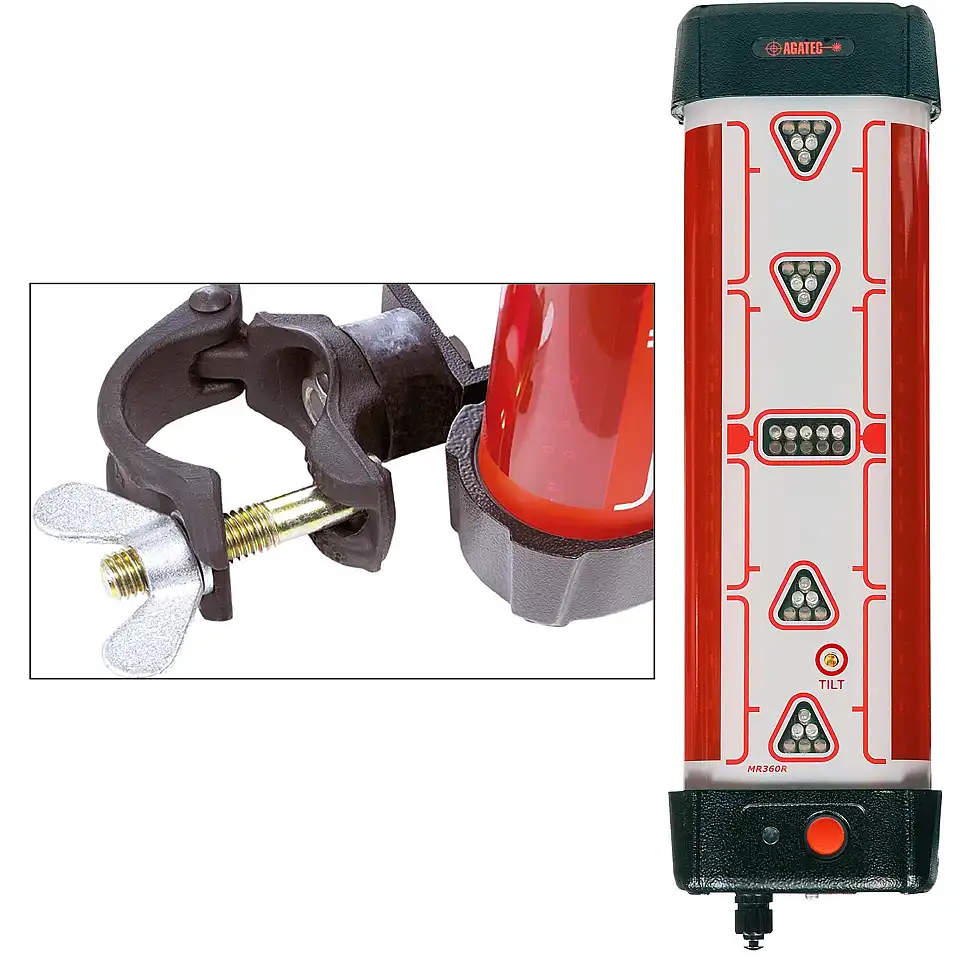

Convenient set consisting of GeoMax MR360RE machine receiver with clamp mount and matching MD360 remote display. The MR360 machine receiver provides accurate slope information for all visual machine control applications. This is made possible by large 360° detection windows that can capture the beams of rotating lasers from any angle. The integrated vertical indicator monitors the angle of the beam and indicates whether it is plumb or under or over extended. The remote display shows directional arrows for precise boom alignment. The receiver is easy to set up. The MD360 cab display receives and displays the signals sent by radio from the machine receiver directly in the cab. This is particularly helpful when there is no view of the machine receiver. Cumbersome cable connections are no longer necessary.
