NESTLE ranging pole support, light version with clamp and leg fixation

Secure stand with additional support through leg fixation

Top Features

  • Secure stand for alignment rods and prism poles with additional leg clamp
  • Painted orange to protect against corrosion.

Variants

Execution

Equipment

Technical Data

Weight 1800 g
Height 100 cm
Paintwork Orange
Product Number (PID) 11902000

Highlights at a Glance

  • Not only suitable for setting up alignment poles on hard ground, but also for positioning prism poles.
  • Very simple operation: fix the prism or ranging pole over the measuring point and bring it to a plumb line.
  • The thin metal base can be pressed into the ground for a secure stand if required.
  • Ideal for our MIDI prism poles in order to be able to position the prism safely and plumb above the measuring point even when space is limited (under canopies, with dense vegetation).

Description

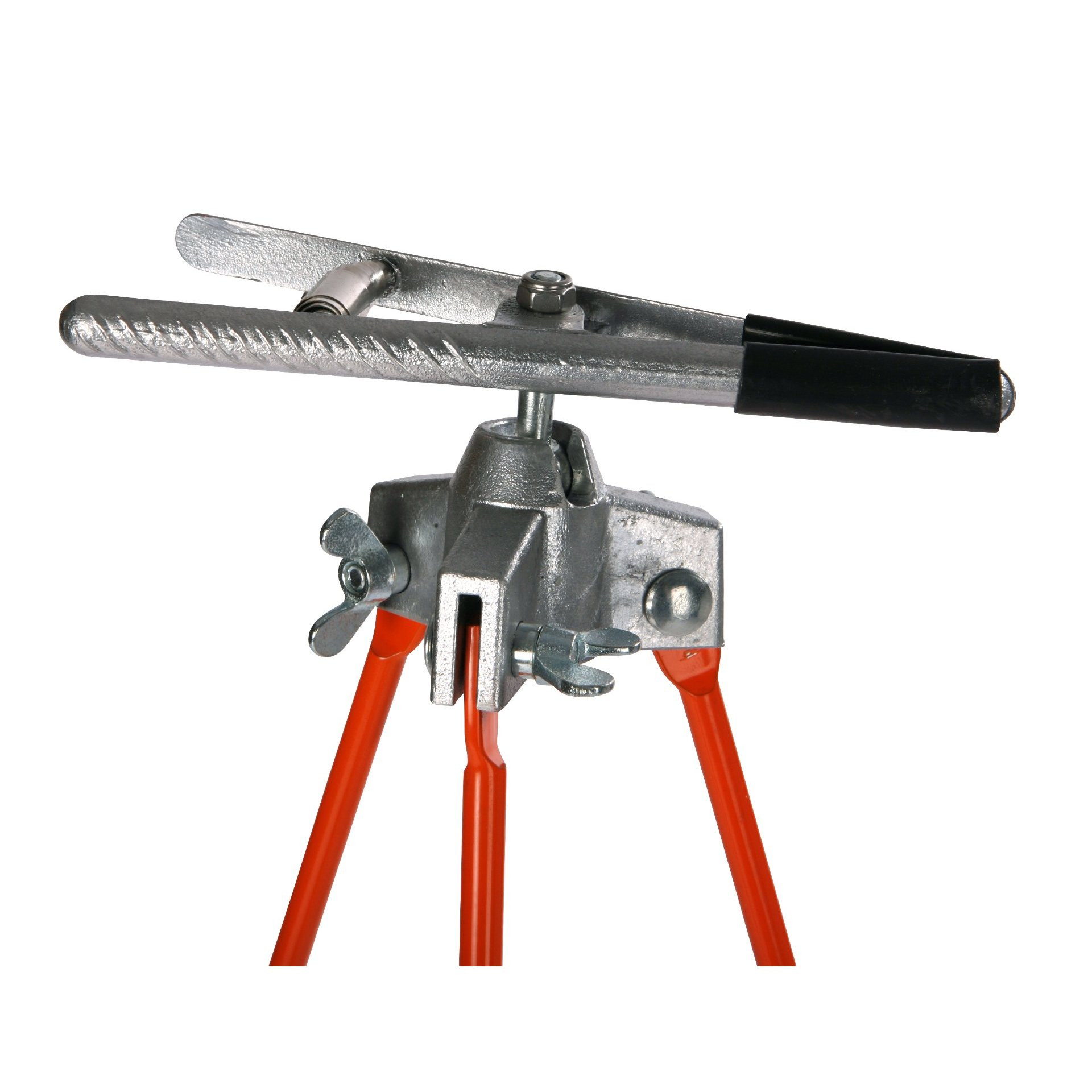

The ranging pole support with clamp and ball joint head is particularly suitable for surveying in the building and cadastral sector. Not only for setting up alignment rods on hard ground, but also for positioning prism poles. The ball joint head makes the positioning of poles particularly easy. The legs can be additionally fixed with clamping screws.

Scope of Delivery

Ranging pole support with clamping bracket and clamping screws for leg fixation
