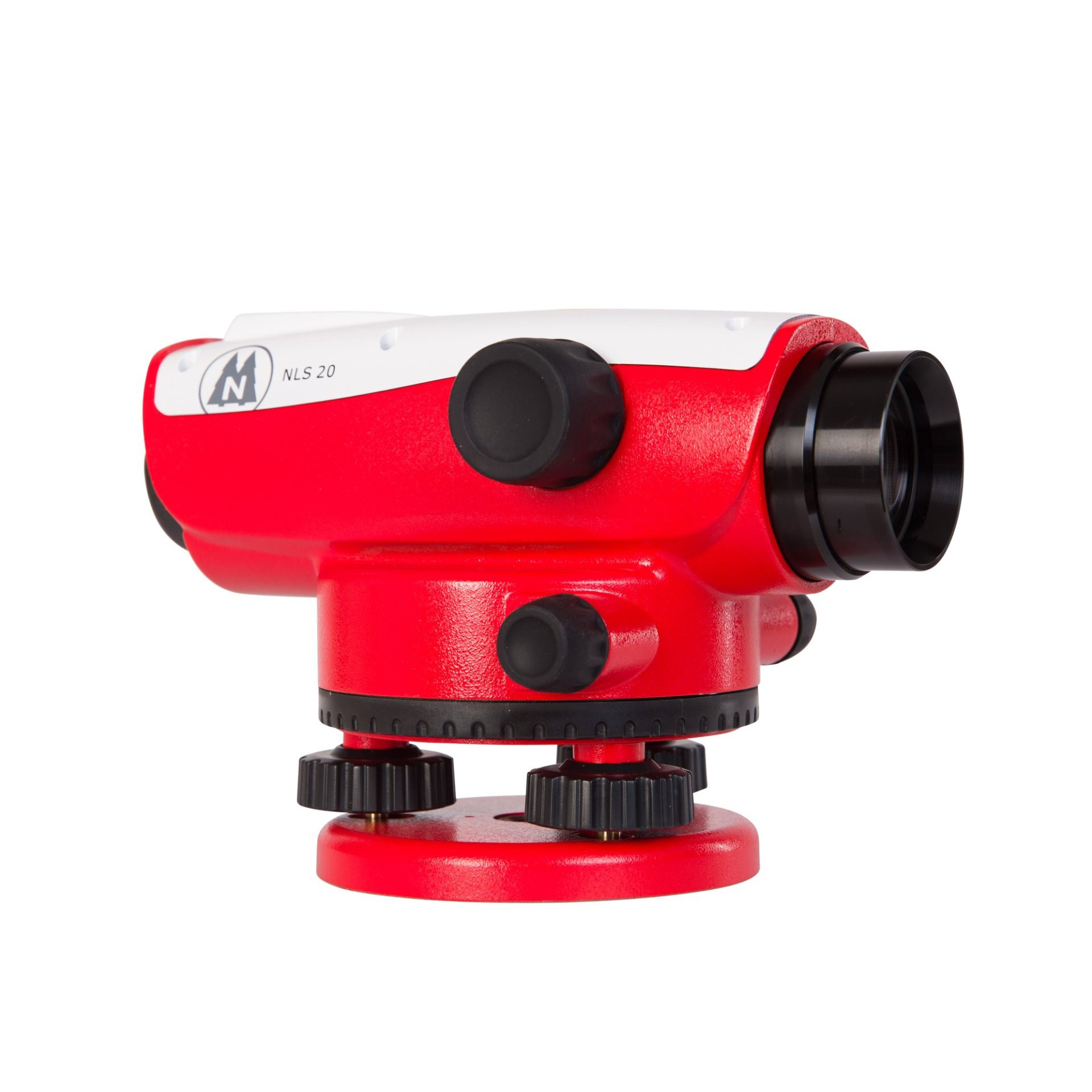

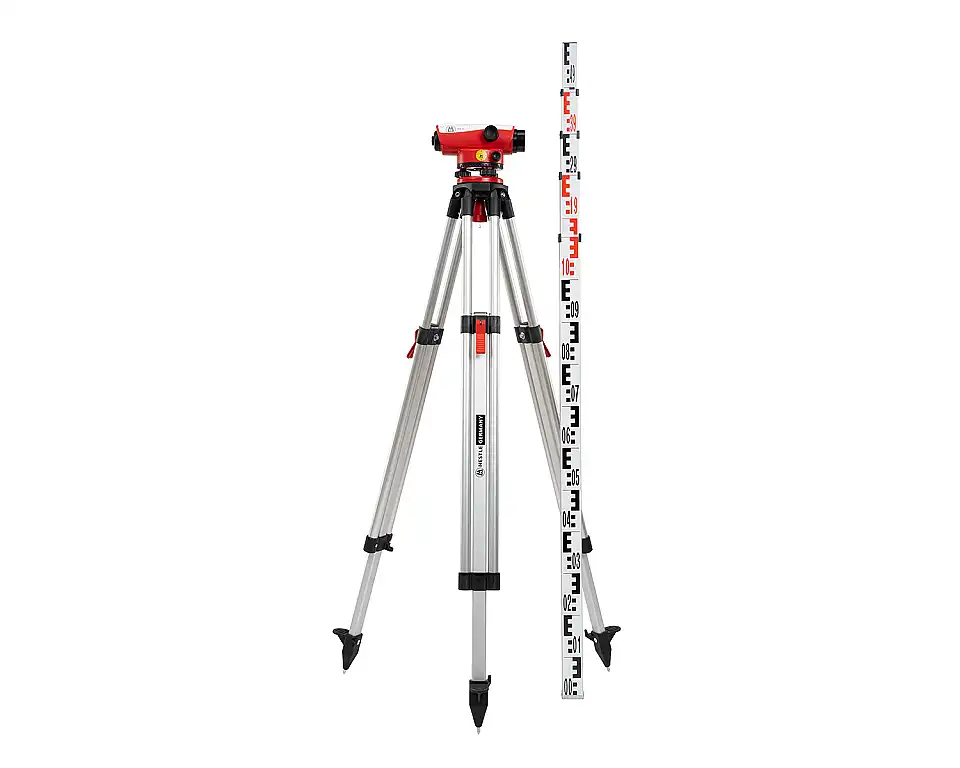

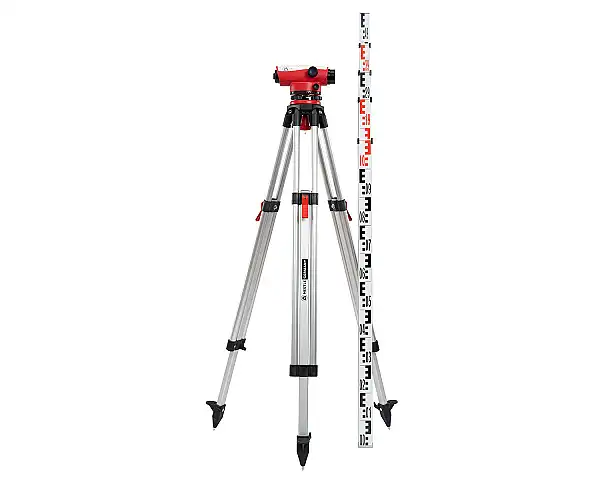

NESTLE Automatic level set NLS 24, consisting of levelling, tripod + staff

Robust and reliable NESTLE premium class!

Top Features

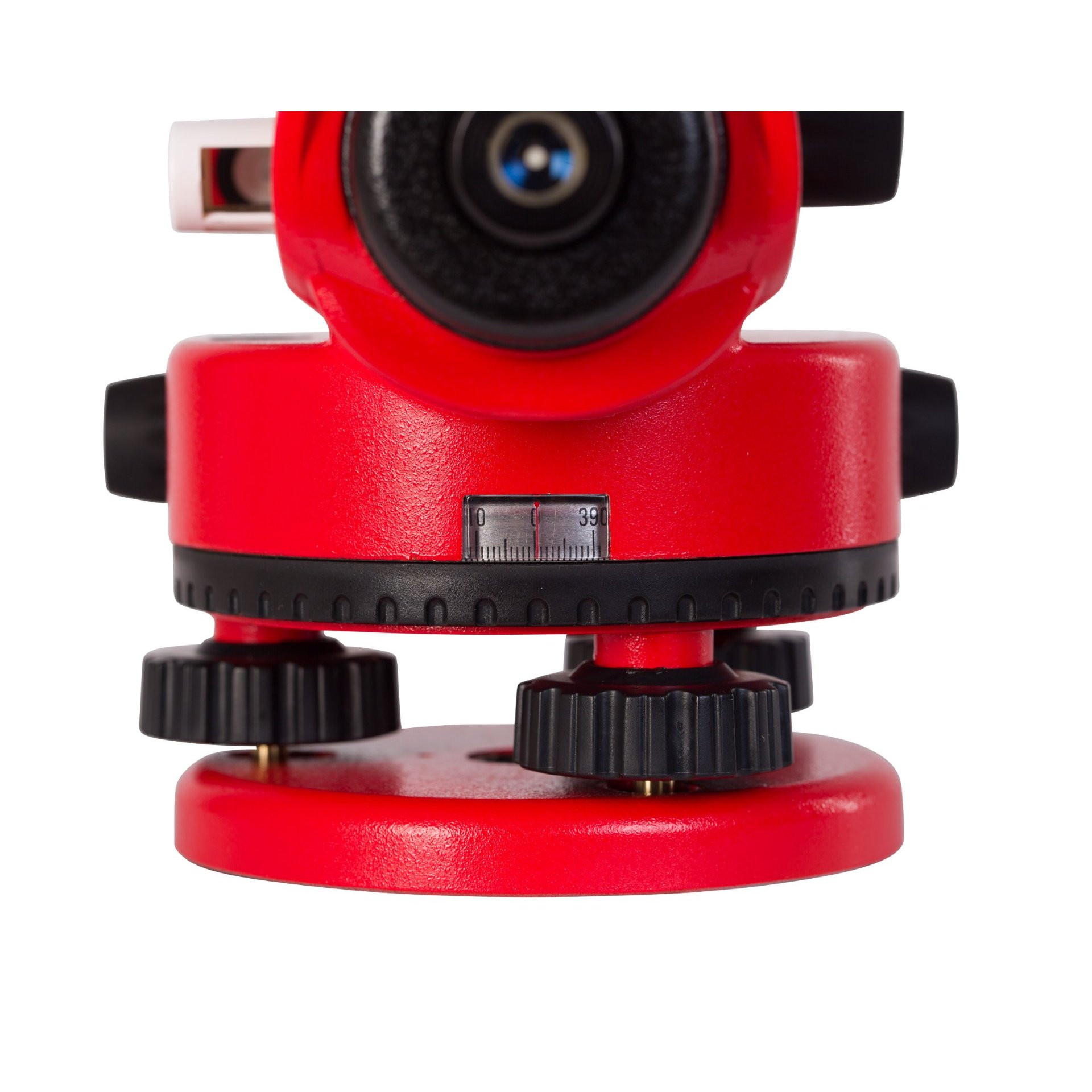

  • Fine adjustment by the magnetically damped compensator.
  • The knobs are easy to reach.
  • Waterproof (IP65)

Variants

Execution

Magnification

Technical Data

Accuracy to 1 km double levelling ± 2.0 mm
Compensator magnetically damped
Shortest target distance 0.65 m
Dragonfly 8' / 2 mm
Dimensions / Weight 220 x 140 x 150 mm / 1.700 g
Multiplication constant 100
Lens aperture 36 mm
Protection class IP65
Sub-circle 400 gon
Tolerance compensator < 0.3 "
Product Number (PID) 15011001

Highlights at a Glance

  • Horizontal angle measurement
  • Determination of the height difference between several points.
  • Optical distance measurement by means of two distance lines
  • Stake out the height of a point
  • Very good appearance with above-average workmanship.
  • Housing base made of aluminium, cover and rotary knobs made of plastic.

Description

The Automatic level of the NLS premium series are predestined for construction and engineering. The high-precision, magnetically damped compensator, the robust all-metal construction and the bright optics make the NLS an absolute professional tool. The HZ circle is smoothly adjustable, the side fine movement works endlessly and can be conveniently operated from both sides. This practical levelling set includes a 5 m telescopic levelling staff in addition to a high-quality aluminium tripod. With this set you are immediately ready for use.

Scope of Delivery

NESTLE NLS 24 levelling device, plumb bob, adjustment tool, operating instructions, case.
Aluminium tripod (light version)
5 m telescopic levelling staff (including bag and spirit level)
