NESTLE scanner coupling carrier X7/X9 version PIN
For a secure connection
Variants
Variant
Execution
Technical Data
| Connection | Trimble X7 / X9 connector-PIN |
|---|---|
| Weight | 400g |
| Accessory for | Nestle 2-way-tripod 13610000 |
| Dimensions | 10.5 x 10.5 x 4.5 cm |
| Fits to base | 13949000 |
| Product Number (PID) | 13956000 |
Description
Scanner quick-release coupling for a 2-way manhole tripod. Use the scanner quick-release coupling when using your instrument overhead. This is the only way to prevent the instrument from accidentally falling.

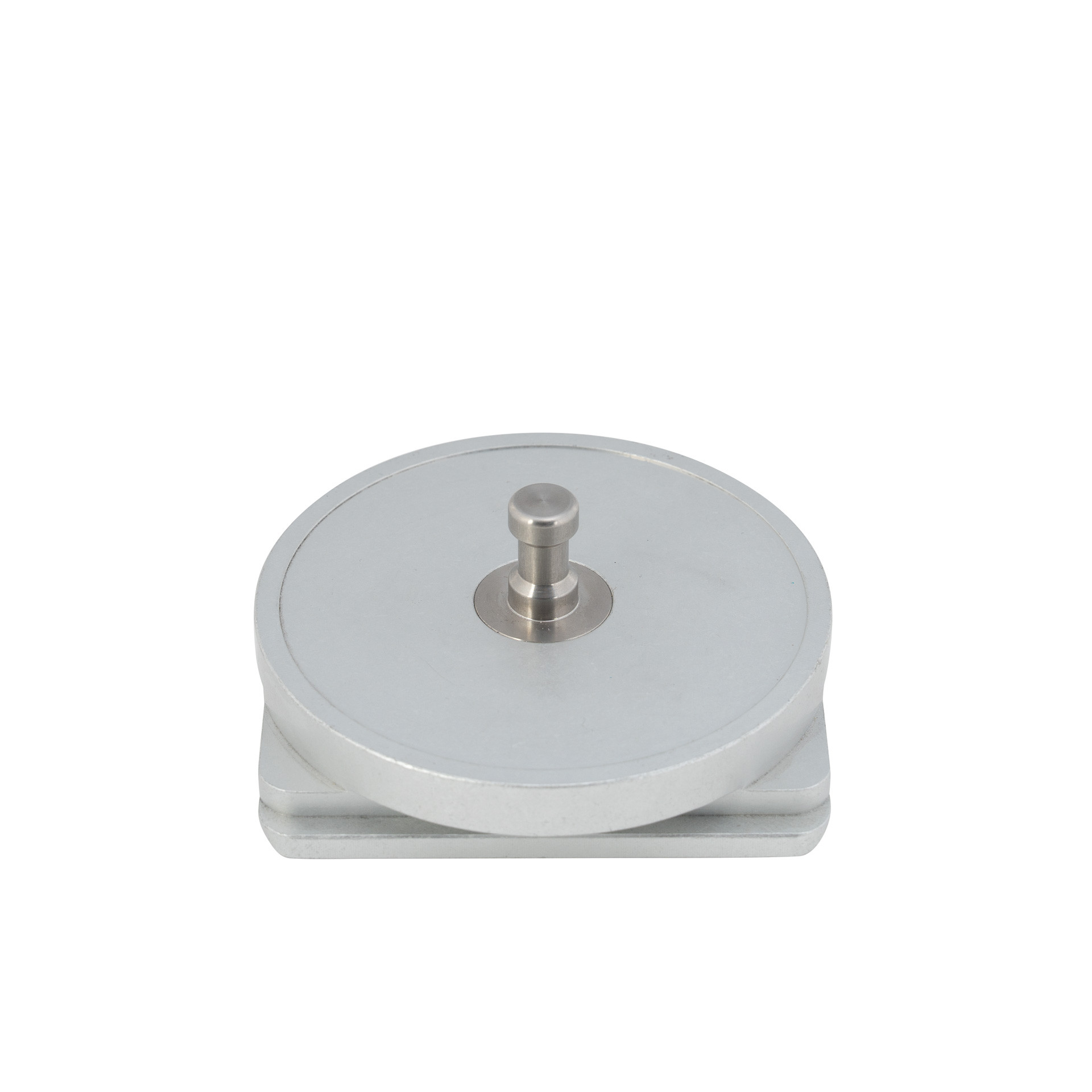

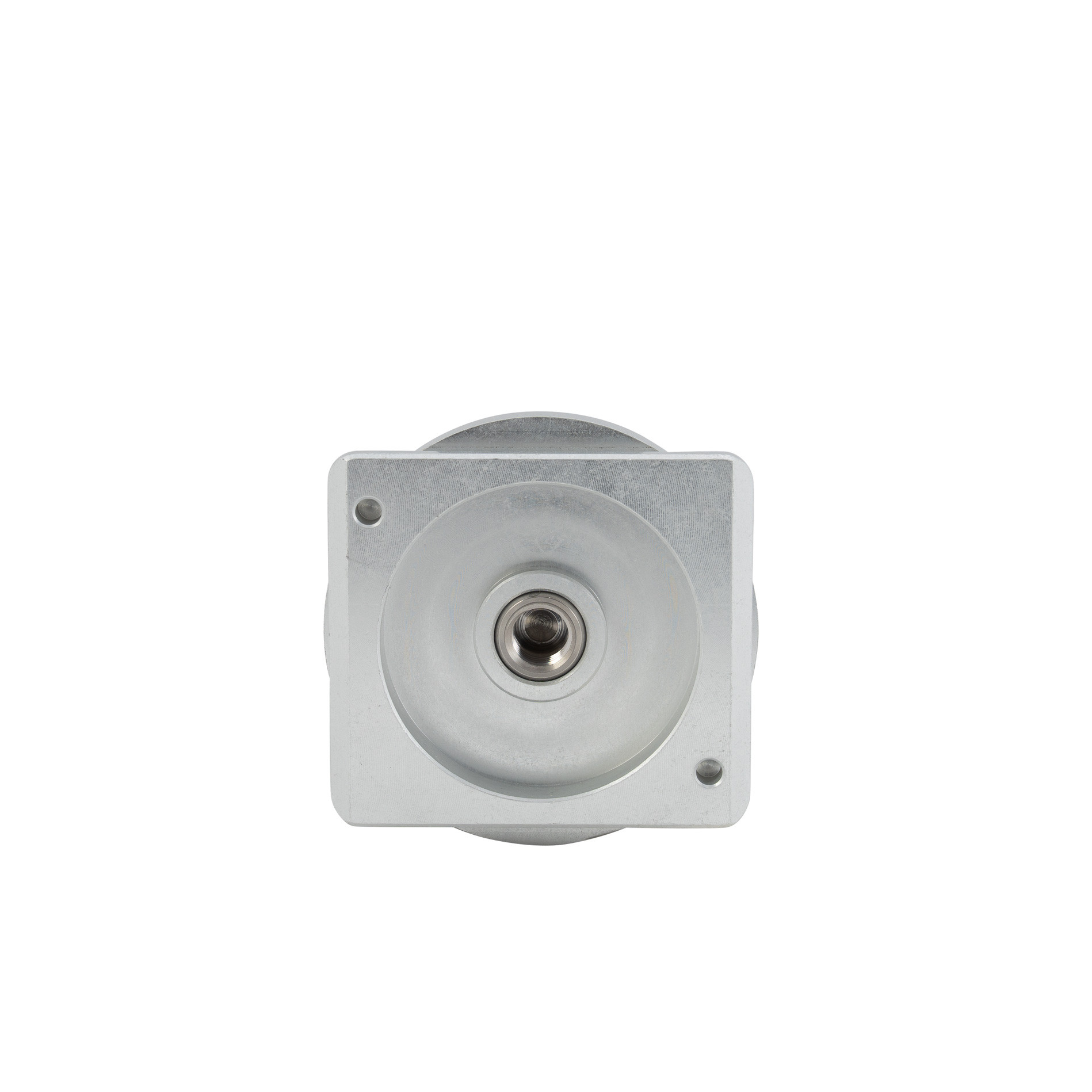

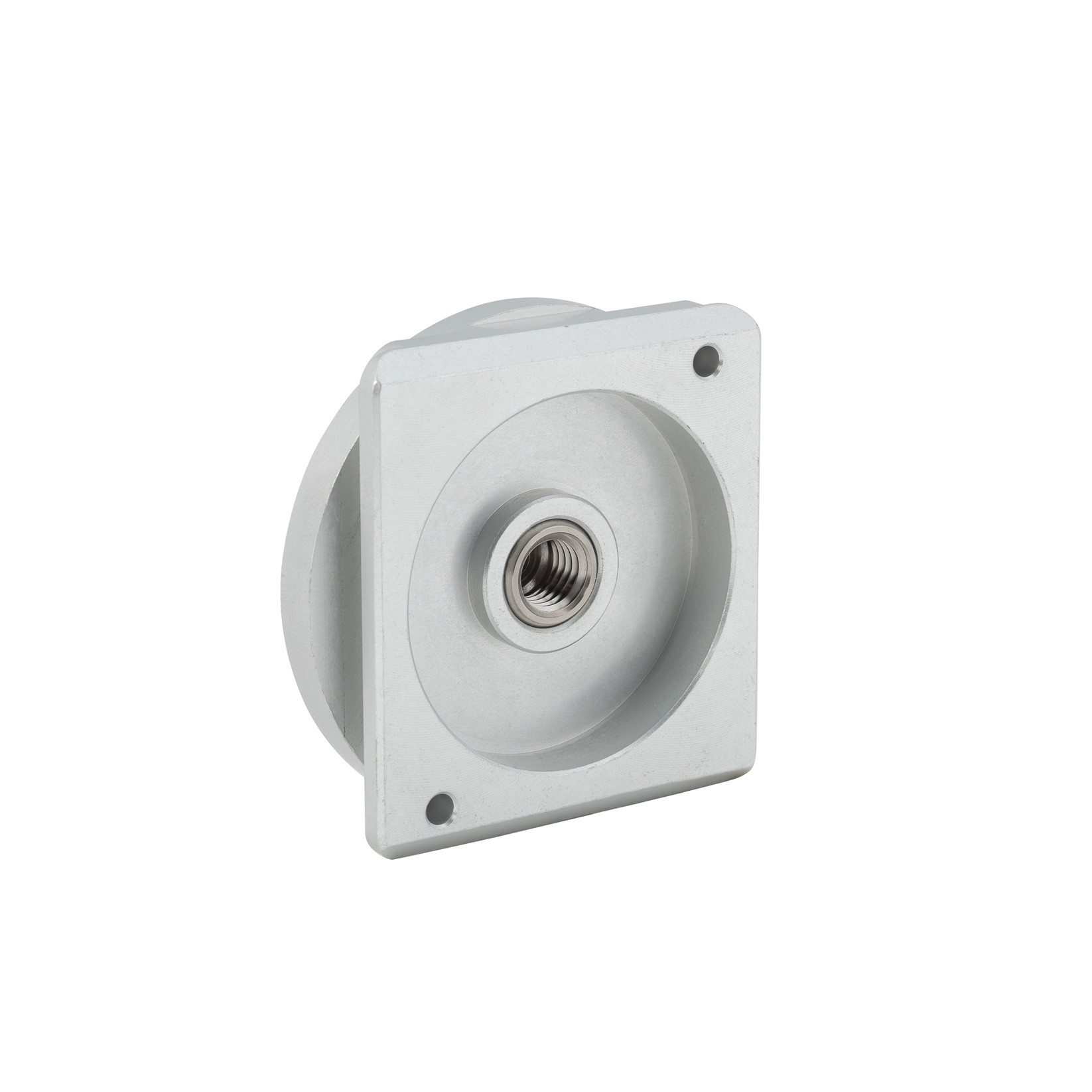

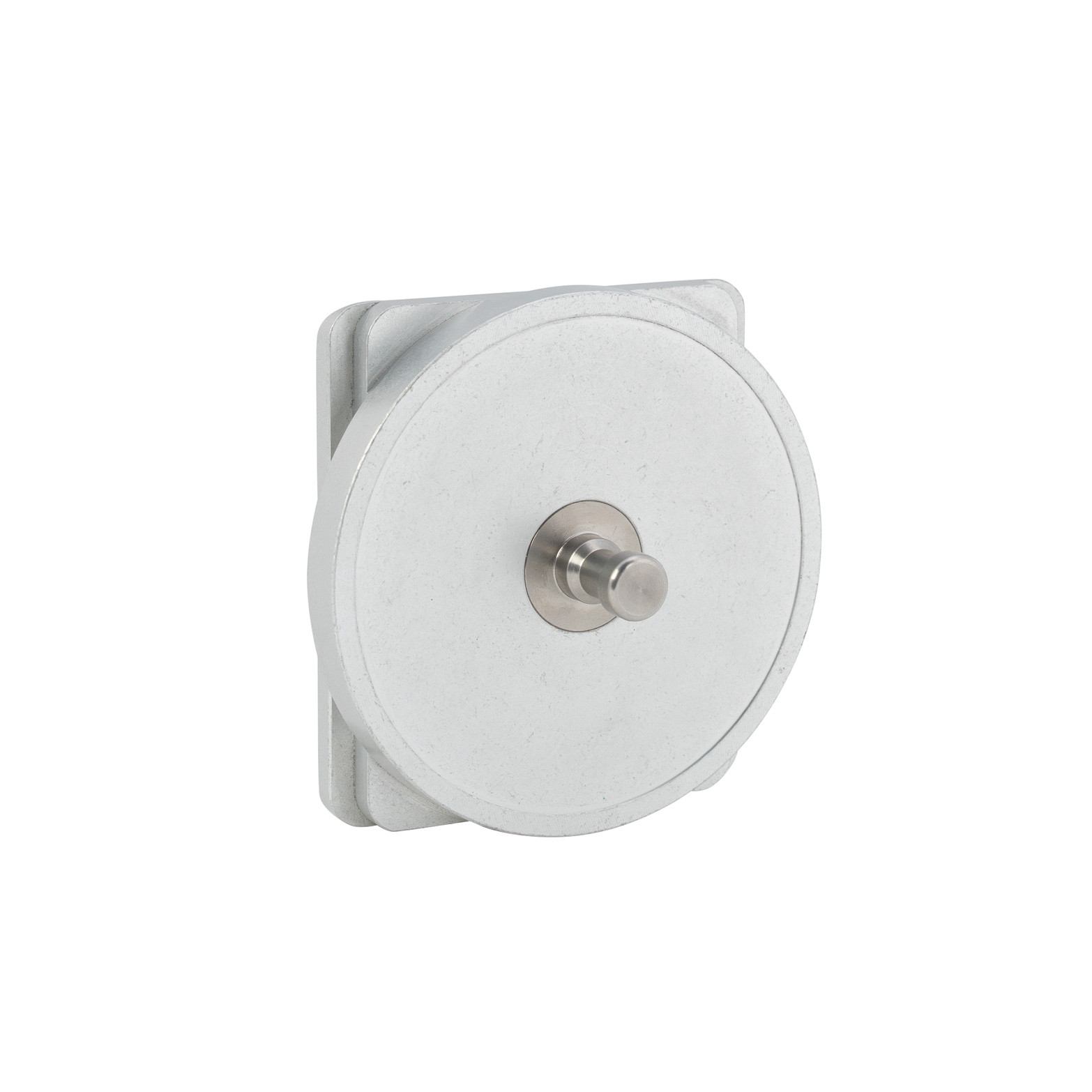

The quick-release coupling consists of a base and a carrier. This carrier is suitable for the Timble Scanner X7 and X9.
Scope of Delivery
Carrier X7 / X9 Version PIN
