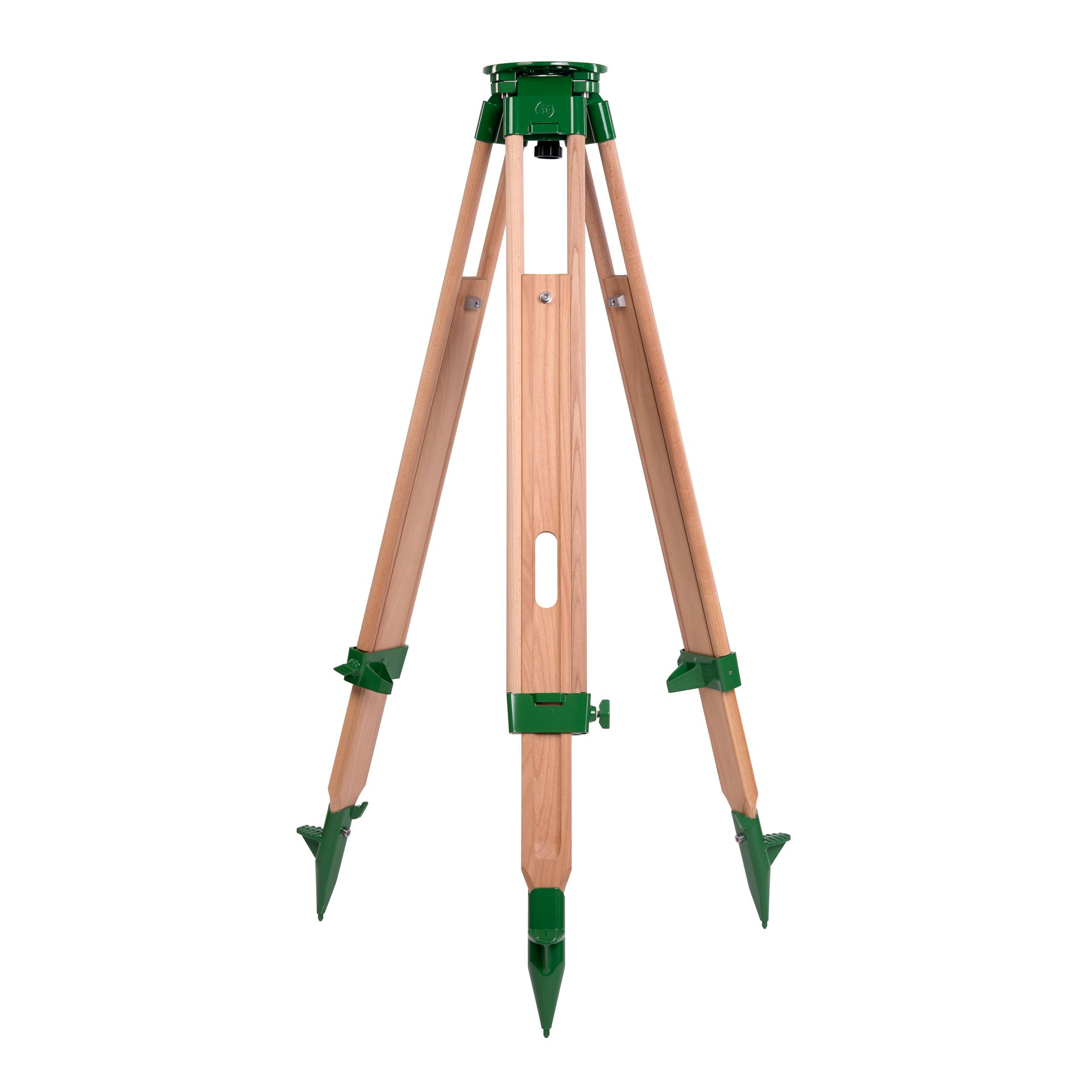

NESTLE Wooden Tripod Nature TN-221
Natural tripod TN-221 highly precise and sustainable
Top Features
-
The main components are wood and metal; these can be separated and are recyclable individually.
-
High-precision measurements with theodolites, total stations and robotics stations.
-
Very good damping properties.
-
Self-closing legs for safe transport.
Technical Data
| Connection | 5/8" |
|---|---|
| Working range at 1m tip distance | 90 - 170 cm |
| Colour (controls and leg caps) | green |
| Colour (wooden elements) | natural - oiled |
| Weight | 6400 g |
| Clamping (extension) | Clamping screw |
| Clamping (transport) | self-closing |

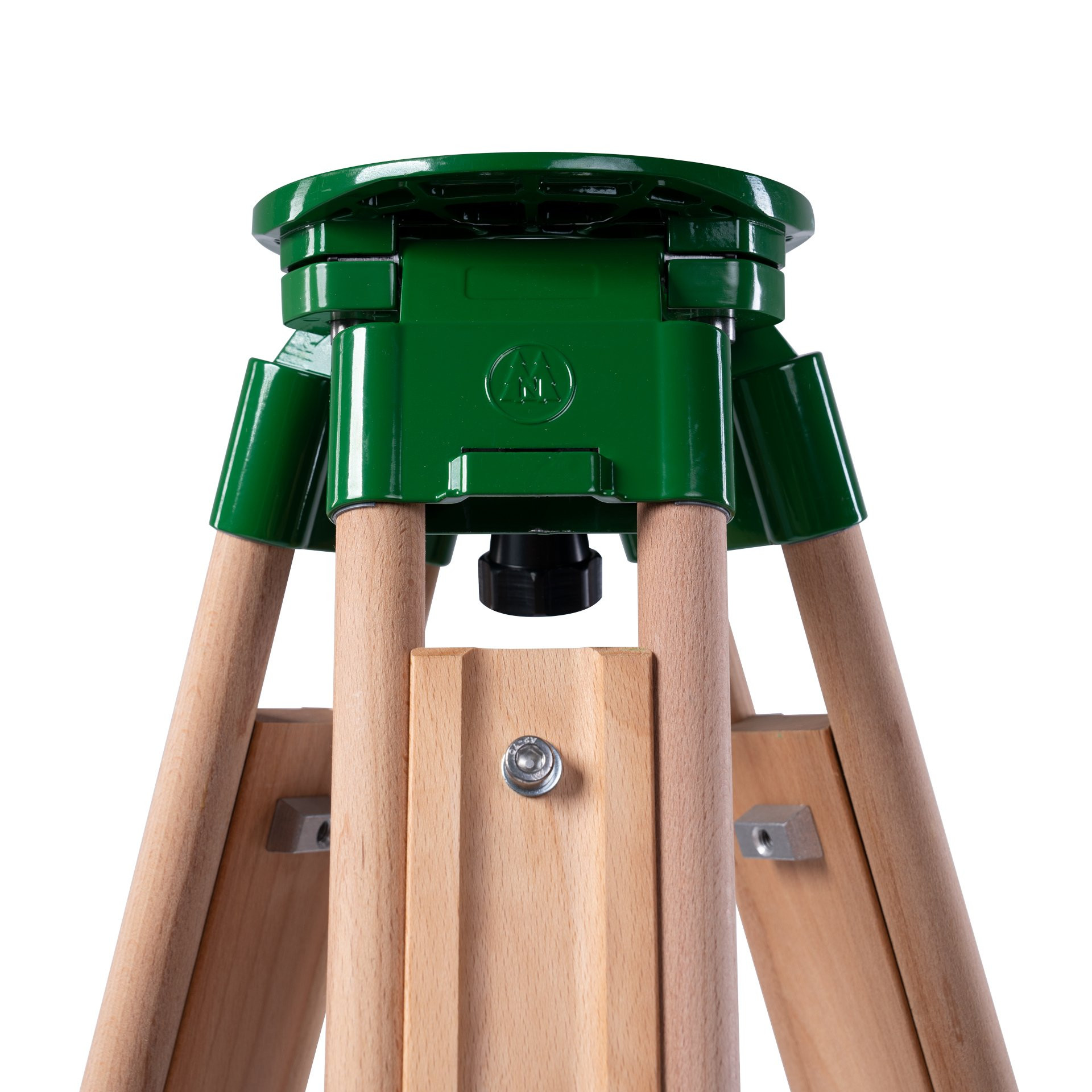

| Head | round, flat |
| Material | Metal & wood (no plastics) |
| Transport length | 108 cm |
| Product Number (PID) | 13715001 |
Highlights at a Glance
-
Natural wooden tripod made from the highest quality wood.
-
With round flat head plate and self-closing legs.
Description
The natural wooden tripod TN-221 is suitable for all surveying instruments for measurements with high and highest accuracy requirements. The controls and leg caps are coloured green, the central tightening screw (5/8") is made of solid metal. All wooden parts are protected against water penetration with a special oil treatment for long-lasting use.
The main components are wood and metal; these can be separated and are recyclable individually.
Scope of Delivery
Nature Tripod TN-221
