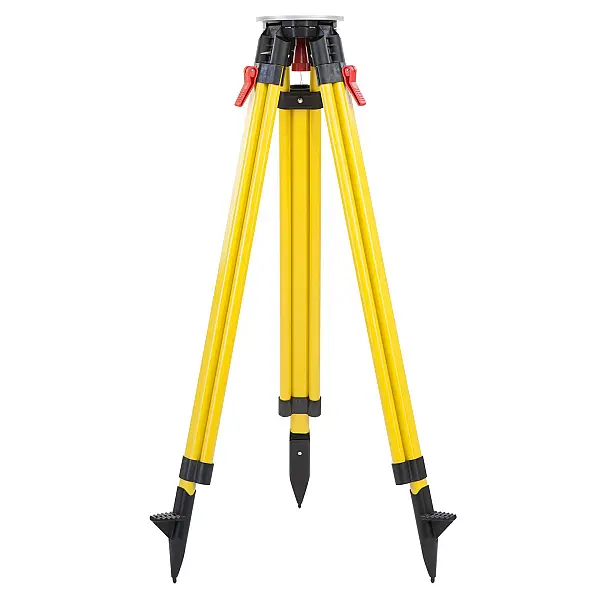

NESTLE wooden tripod, medium duty version, 93-173cm, circular head plate, incl. rubber feet mounted

With PVC cover and eccentric quick clamp

Top Features

  • A robust PVC sheath protects the wooden poles permanently from dirt and moisture.
  • Ideal for use with theodolites or total stations.
  • Medium heavy with eccentric quick clamp
  • Available with round and triangular head plate
  • Includes rubber feet on each toe.

Variants

Execution

Technical Data

Connection 5/8"
Working range at 1m tip distance 90 - 170 cm
Weight 5500 g
Clamping Eccentric
Head Flat, Metal, Round
Transport length 108 cm
Product Number (PID) 13701000

Highlights at a Glance

  • Due to the better damping properties of wood, vibrations can be absorbed very well.
  • Water penetration is not possible. The wood can no longer swell and impair the function of the tripod.
  • We only use high-quality wood for our round bars.
  • The clamping levers are made of glass-fibre reinforced polyamide and are therefore extremely robust. The metal parts are made of resistant die-cast aluminium.
  • Robust PVC jacket protects the tripod from dirt

Description

Wooden tripods have high damping properties and behave almost neutrally in sunlight. Medium-weight wooden tripods are suitable for stationing levelling instruments, theodolites and total stations for measurements with high accuracy requirements. A robust PVC jacket permanently protects the wooden rods from dirt and moisture, thus significantly reducing the resulting swelling of the wood. This tripod is equipped with a round head plate. The pre-mounted rubber feet protect sensitive floors and minimise slipping on smooth surfaces.

Scope of Delivery

Wooden tripod
