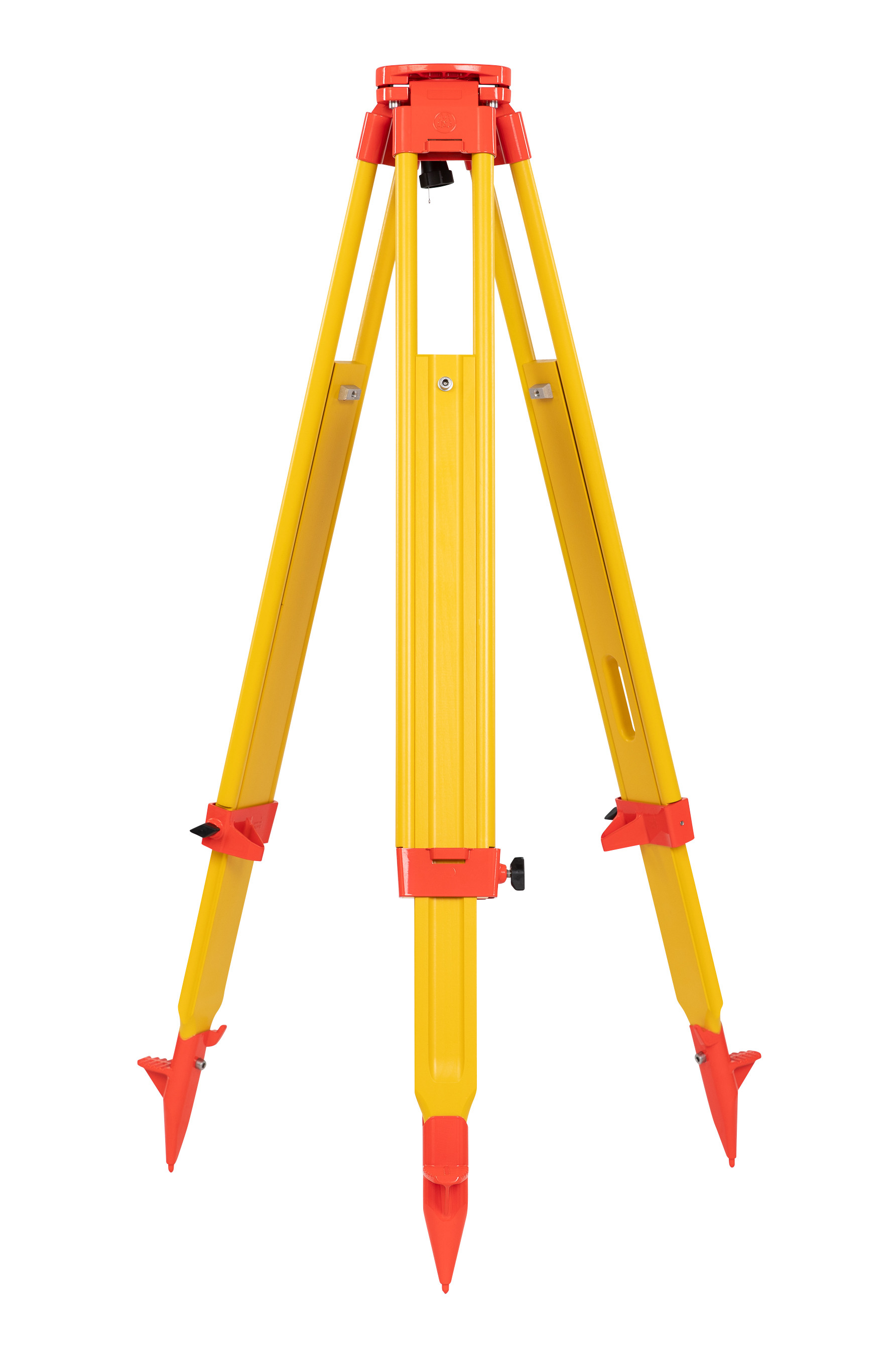

NESTLE Tripod wood TR-246-7
No compromises in robustness and visibility
Top Features
-
High-precision measurements with theodolites, tachymeters and robotic stations.
-
Very good visibility thanks to bright red fittings.
-
Very good damping properties.
Variants
Execution
Equipment
Technical Data
| Working range 1m tip distance | 90 - 170 cm |
|---|---|
| Transport length | 107 cm |
| Weight | 6.4 kg |
| Colour of wooden elements | yellow |
| Colour of fittings | bright red |

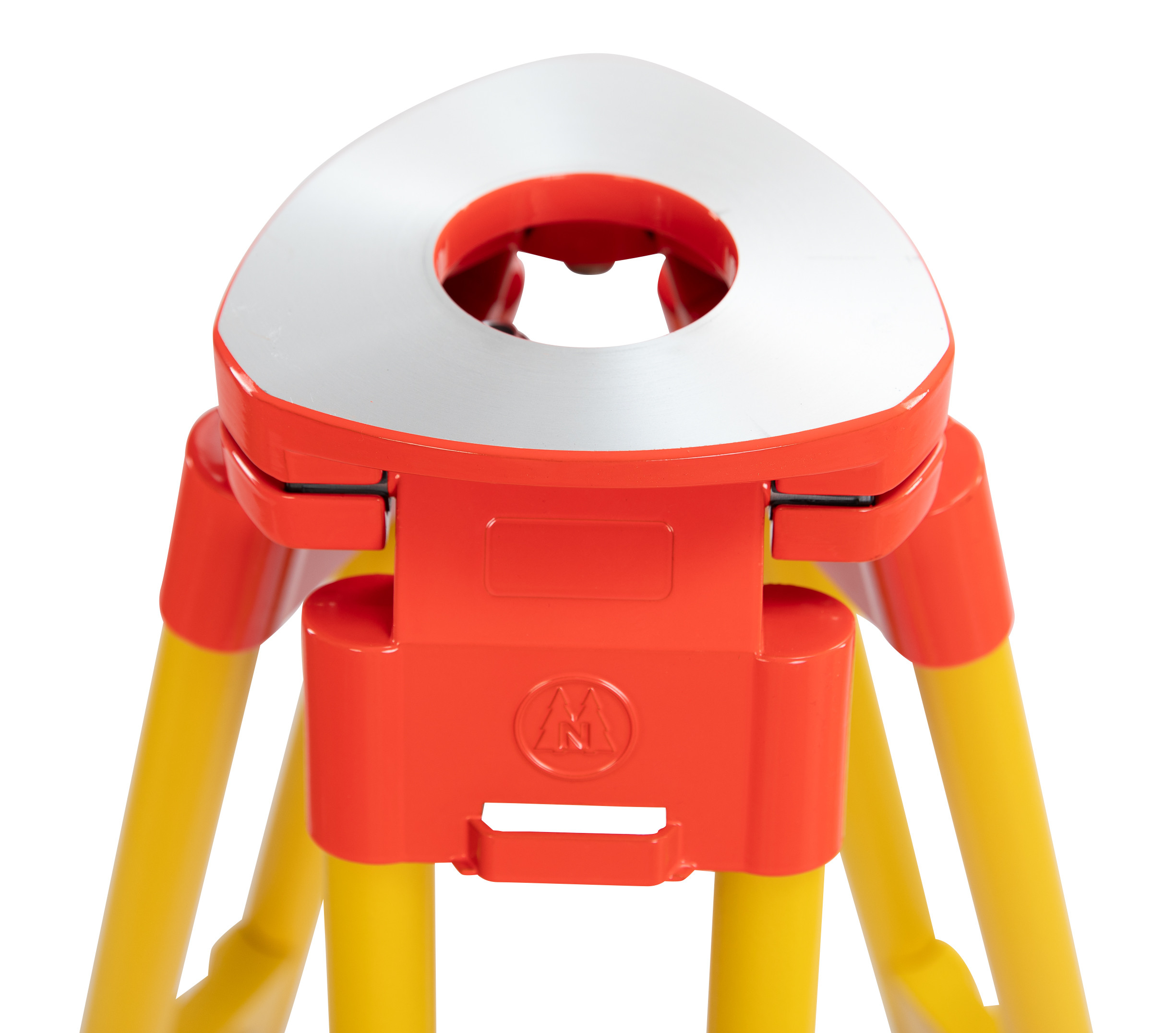

| Head | flat, triangular |
| Connection | 5/8" |

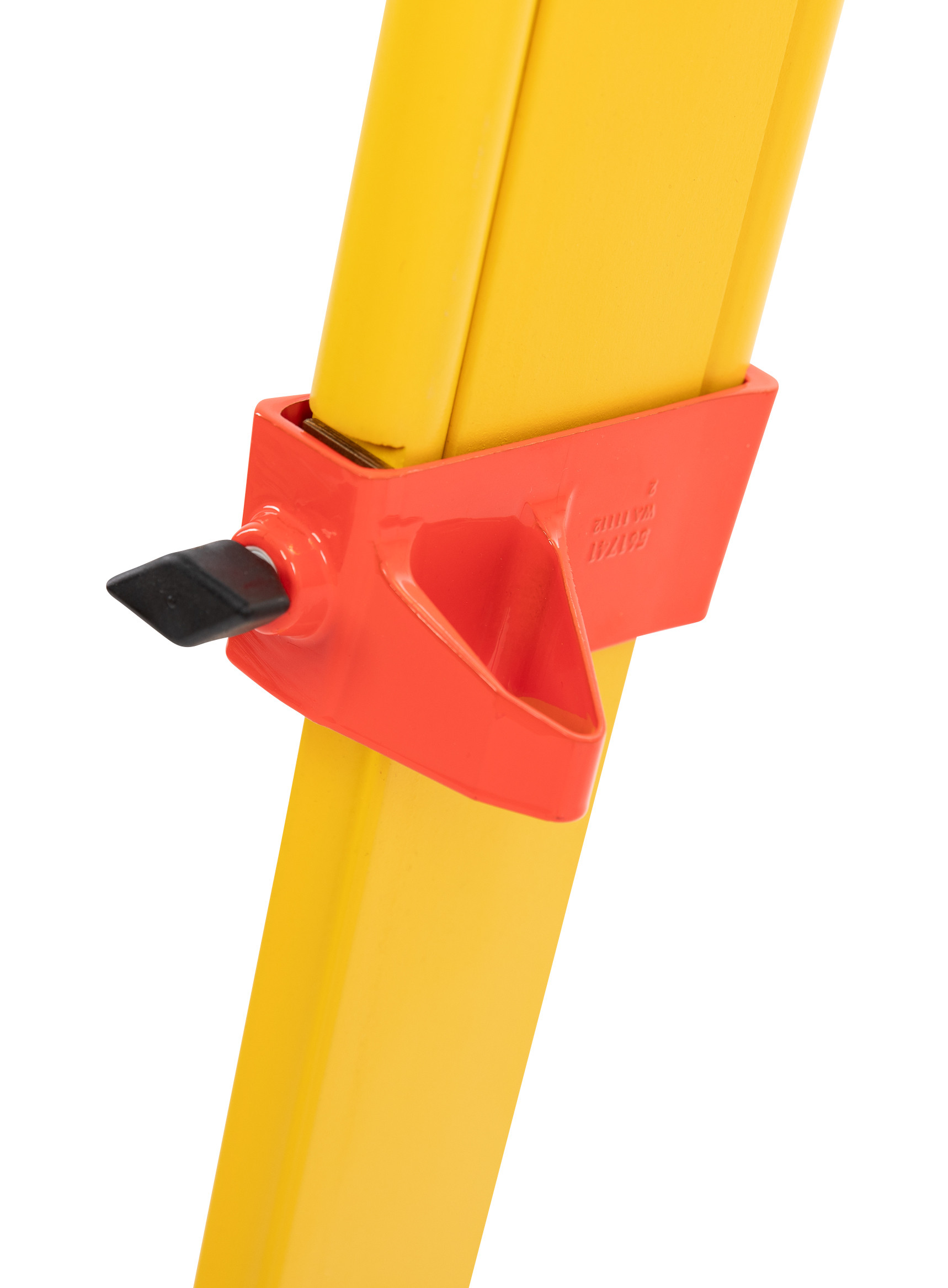

| Clamping | Clamping screw |
| Self-closing Legs | Yes |
| Product Number (PID) | 13719001 |
Highlights at a Glance
-
Our heavy wooden tripods are made from the highest quality wood.
-
A special oil treatment prevents water from penetrating and the resulting swelling of the wood.
-
Wooden tripods have very good damping properties, so vibrations are absorbed very well.
-
The material is very neutral even in direct sunlight, so measurements are not affected.
-
All fittings on this tripod are anodized in bright red for better visibility.
Description
Wooden tripods have high damping properties and are almost neutral when exposed to sunlight. This makes wooden tripods suitable for stationing surveying instruments (theodolites, tachymeters, motorized robotic stations) and for measurements with high and extremely high accuracy requirements. A special oil treatment prevents water from penetrating, thus significantly reducing the resulting swelling of the wood. This tripod is equipped with a triangular head plate. The self-locking mechanism secures the tripod legs when carried and transported and prevents them from accidentally unfolding, thus efficiently preventing transport damage and injuries.
All fittings (head plate, leg caps, clamping unit, step shoe) are anodized in bright red for high visibility.
