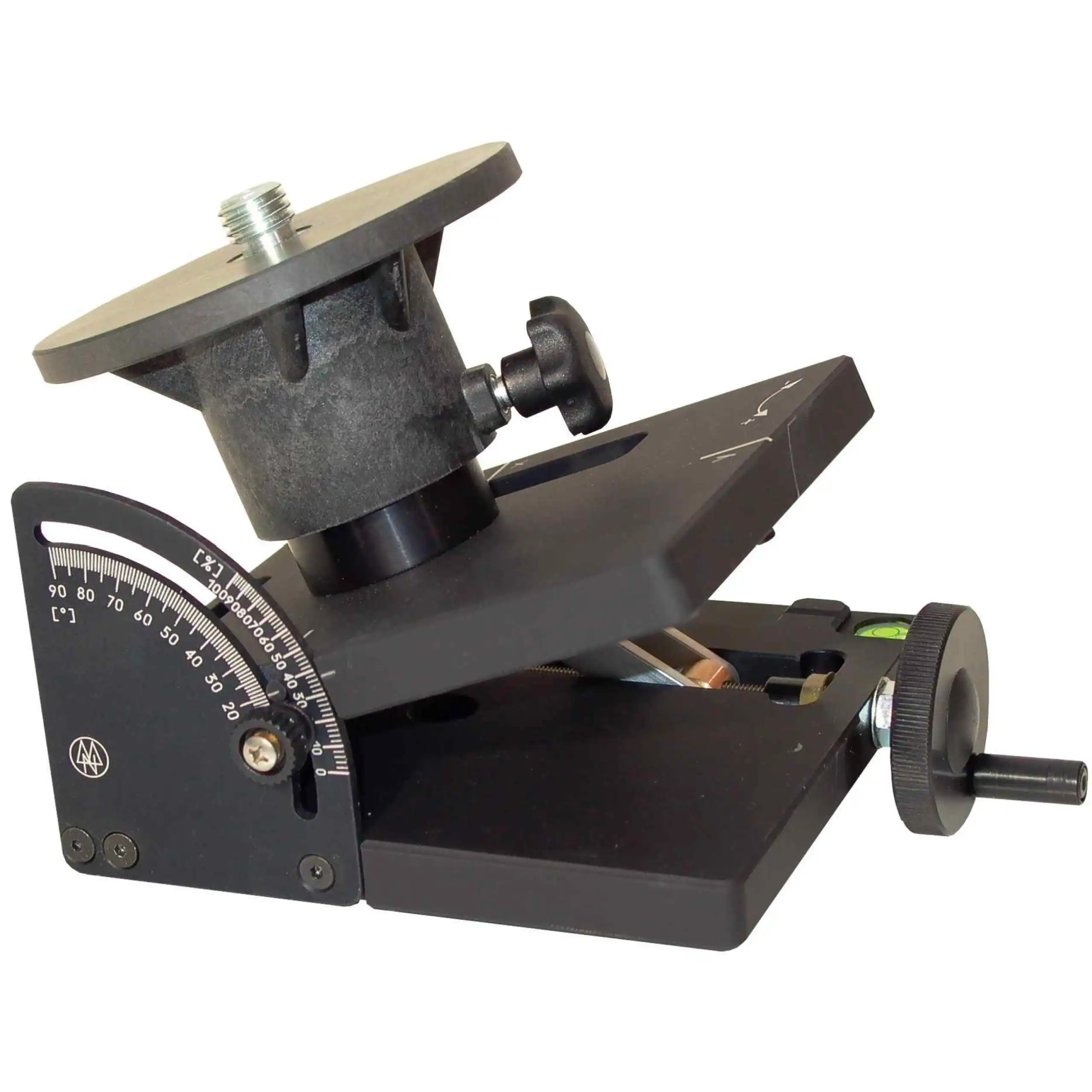

NESTLE tilt wedge

Inexpensive alternative to the purchase of a tilt laser

Top Features

  • The tilt wedge is an inexpensive alternative to purchasing an expensive tilt laser.
  • Sturdy, weatherproof metal housing.

Variants

Variant

Execution

Technical Data

Weight 2000 g
Thread 5/8"
Dimensions 190 x 140 x 110 mm
Precision / Scaling per degree adjustable / per 2 % adjustable
Scale in ° and %
Product Number (PID) 13905000

Highlights at a Glance

  • The tilt wedge has a circular bubble for vertical installation of the unit.
  • The inclination is conveniently adjusted via a crank.

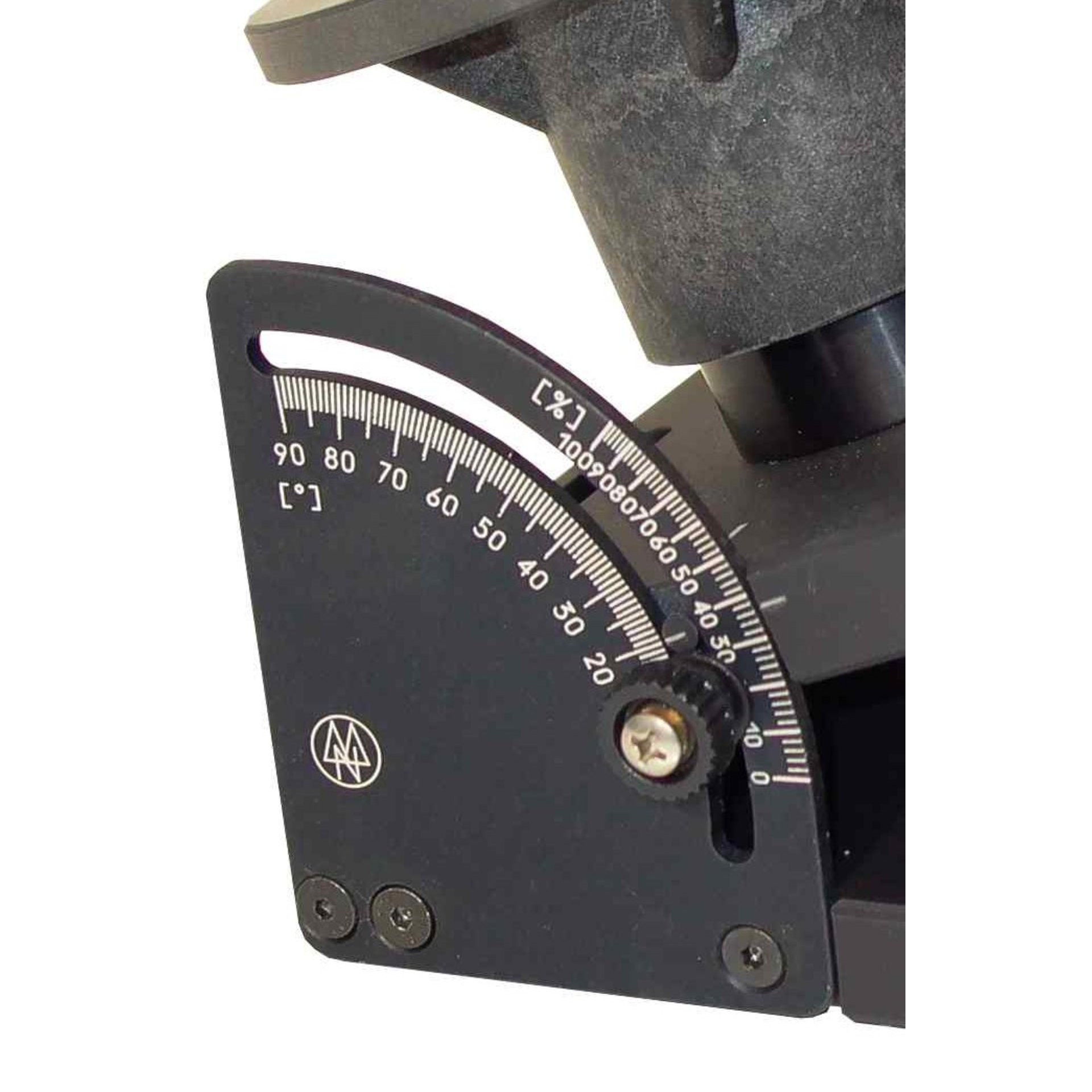

  • The scale can be read from 0-90° and also from 0-100 %.
  • The scales are abrasion-resistant.

Description

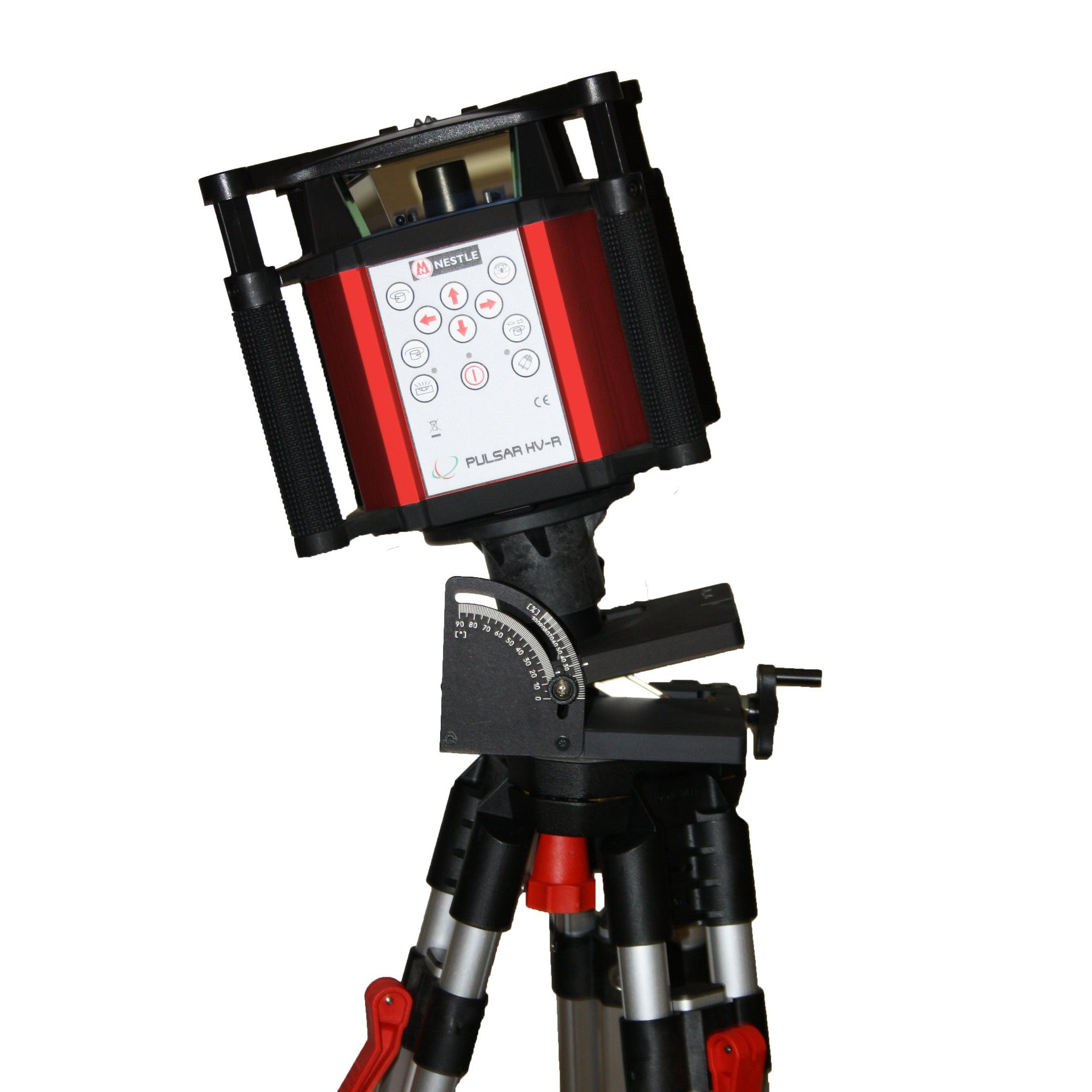

The tilt wedge is suitable for lasers with automatic switch-off. There are only three requirements for using the tilt wedge: The tripod must have a 5/8" central tightening screw, the laser must have a 5/8" thread and it must be possible to switch to manual mode. The laser is first mounted on the tilt wedge, then on a tripod and then the laser is switched to manual mode. The tilt is adjusted by means of a crank. The scale can be read from 0-90° and also from 0-100 %.

Scope of Delivery

Tilt wedge
