GEOMAX Zone20 HV basic rotating laser

Solid multifunction laser for indoor and outdoor applications

Top Features

  • Multi-purpose laser, indoors and outdoors
  • Completely automatic
  • Easy to use and reliable
  • Ideal for concrete, formwork, erection, alignment, plumbing
  • Laser class 2

Variants

Variant

Technical Data

Working area with receiver Ø 900 m
Operating time > 40 Hours
Weight 3150 g
Laser diode visible 635 nm (red), class 2
manual tilt range 8 %
Dimensions 240 x 215 x 215 mm
Self-levelling range ± 6°
Power supply 4 alkaline mono cells (D), lithium-ion (Li-ion pack rechargeable)
Temperature range -10 °C to +50 °C
Tolerance ± 0.75 mm per 10 m
Product Number (PID) 27106000

Highlights at a Glance

  • The GeoMax Zone series rotating lasers are robust (IP67), versatile (900 m working range) and offer exceptional value for money.
  • The Zone 20HV expands the Zone 20H into a multifunction laser for versatile applications on all construction sites.

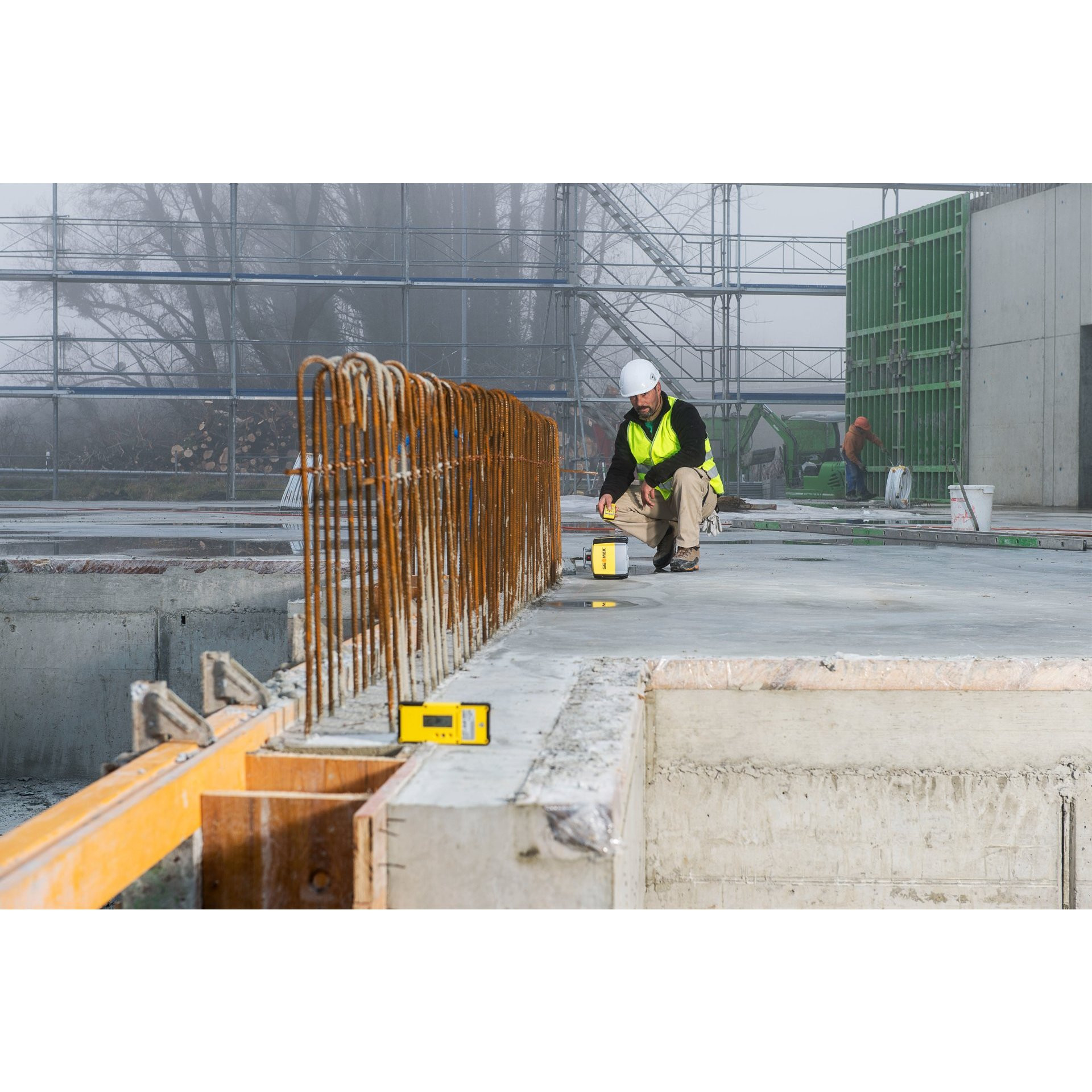

  • Best field of application: multi-purpose instrument for indoor and outdoor use.

Description

The GeoMax Zone20 HV adds vertical levelling and alignment capabilities to the basic specifications of the Zone20 H. The long-range remote control expands the range of use enormously and makes it ideal for levelling, aligning or levelling applications. The fully automatic multi-function laser is suitable for both indoor and outdoor applications such as concrete and formwork work or plumbing or angling, making it interesting for contractors who need both horizontal and vertical functions of the machine. Add the included ZRB90 laser receiver to supplement the performance and increase the range up to 300 m.

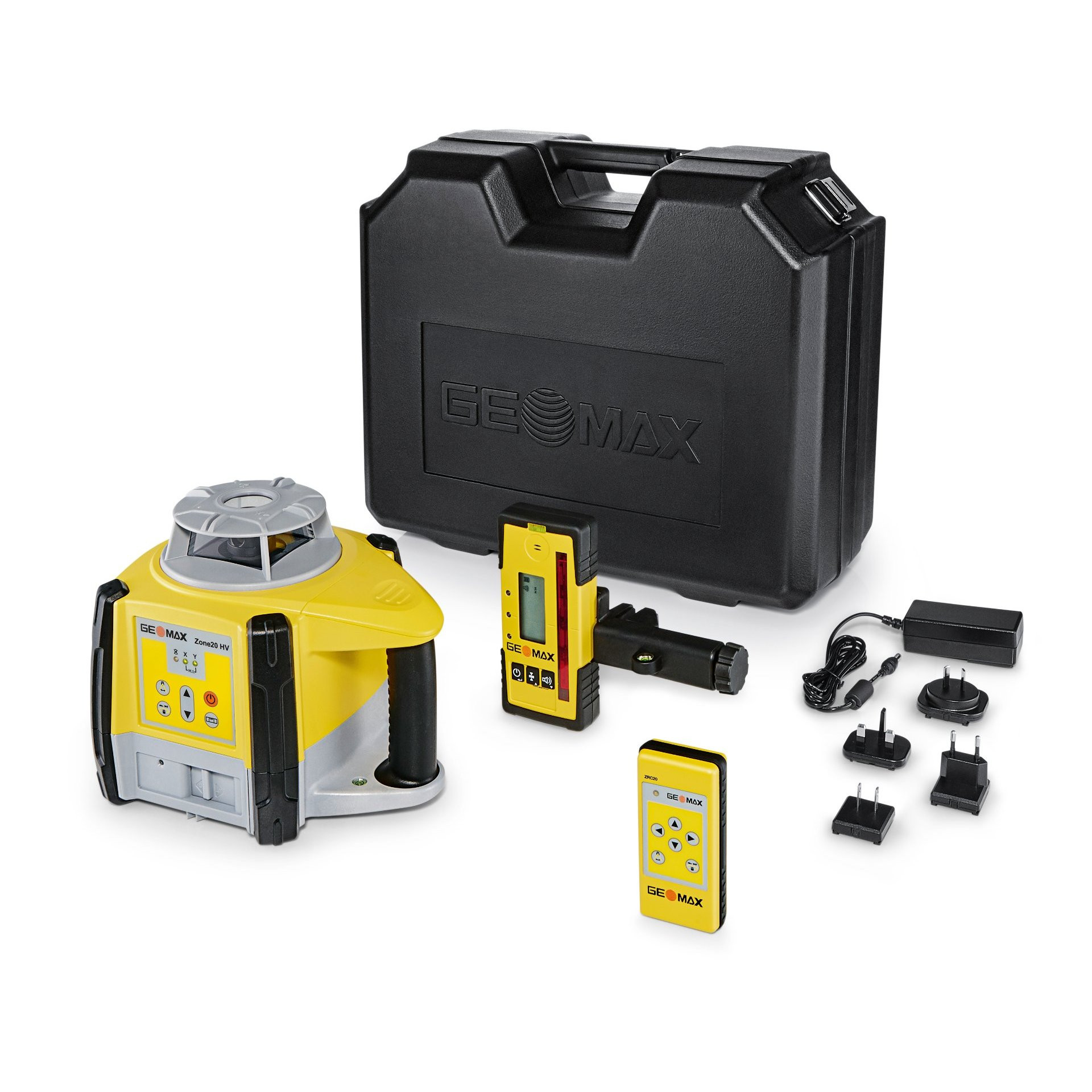

Scope of Delivery

GeoMax Zone20 HV
Receiver ZRB90
Transport case
Remote control
Li-Ion battery with charger
Manual on CD
Quick start guide
Safety instructions
