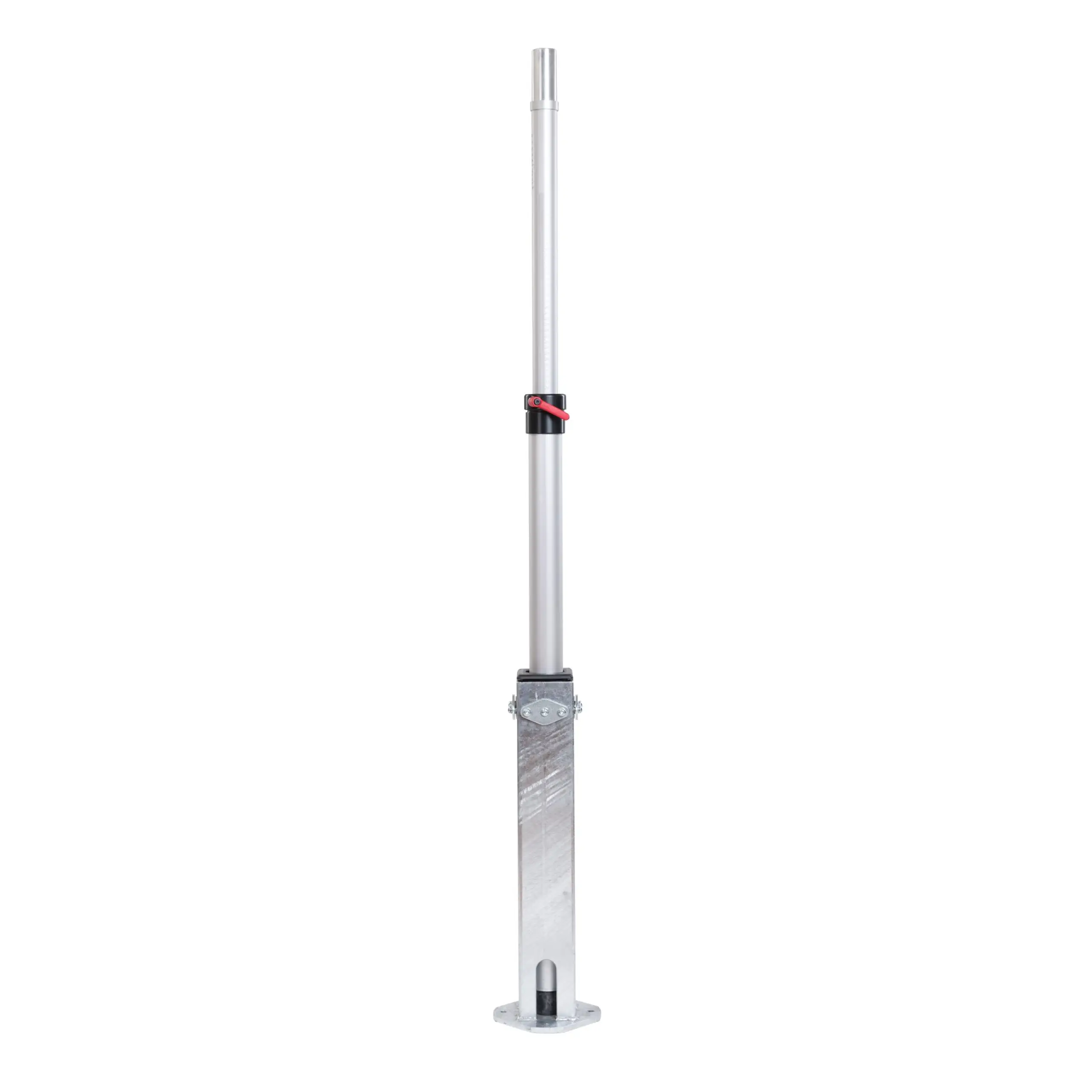

Machine control mast MCM-180

Vibration-damped receiver mast for machine control

Top Features

  • Scale abrasion resistant with millimetre graduation
  • Suitable for all construction machines
  • With integrated damping

Variants

Execution

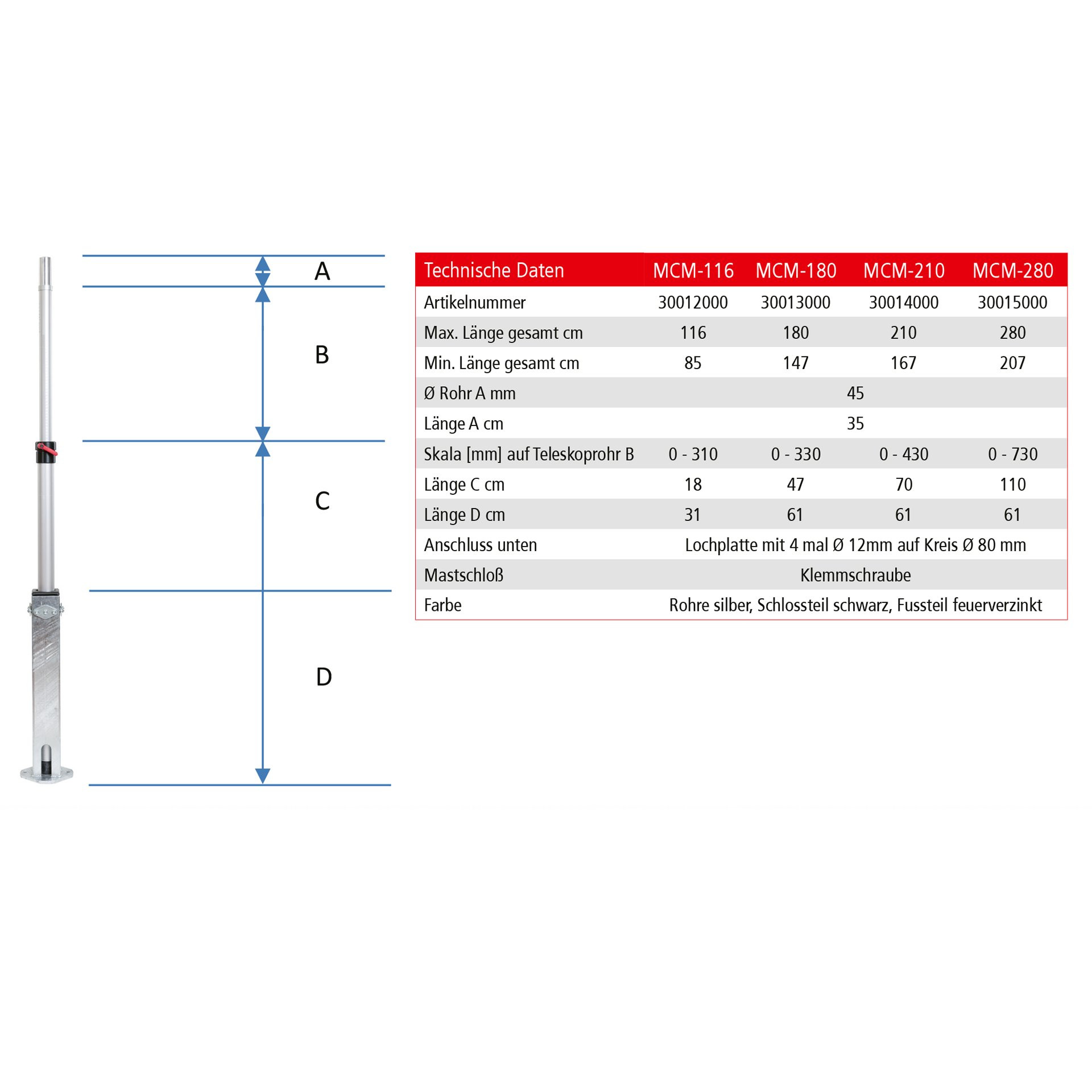

Technical Data

Colour Tubes silver, lock part black, foot part hot-dip galvanised
Weight 10.9 kg
Length A 35 cm
Length C 47 cm
Length D 61 cm
Mast lock Clamping screw
max. total length 180 cm
min. Total length 147 cm
Ø Tube A 45 mm
Scale on telescopic tube B 0 - 330 mm
Product Number (PID) 30013000

Highlights at a Glance

  • The Nestle MCM machine control masts are stable masts for MC sensors such as prisms, GNSS antennas or laser receivers
  • The MCM masts are suitable for all construction machines and can be telescoped if required
  • The scale of the telescope range is laser-inscribed, abrasion-resistant and with millimetre graduation
  • The integrated damping significantly reduces oscillations and vibrations, so that transducers on the masts are less stressed

Description

Scope of Delivery

Mast MCM-180
