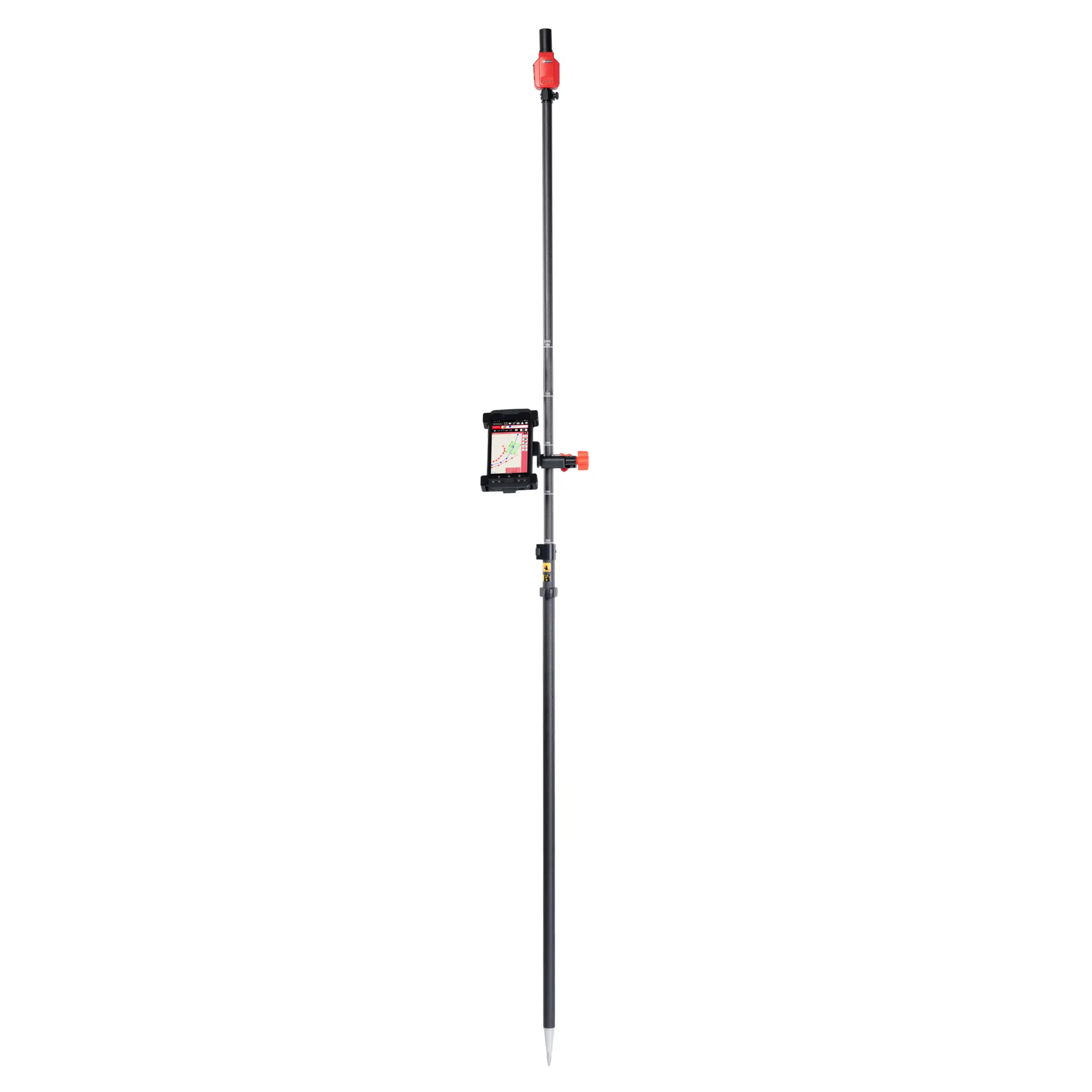

NESTLE GNPS-52 system complete

GPS Surveying so easy - just like that!

Top Features

  • RTK Real-Time Positioning for recording and staking points and geometric shapes
  • Import and export of numerous formats (e.g. DXF, KML, CSV, SHP, )

Variants

Variant

Technical Data

Weight (ready for work) 1500 g
Working Height (Antenna) 2 m
GNSS tracking GPS, Glonass, Beidou, Galileo
Operating temperature -20°C to +60°C
IP protection class Antenna IP67, Field Computer IP68
Power supply Antenna Li-Ion (built-in), Field Computer Li-Ion (replaceable)
Accuracy (RTK Fixed) 1 cm + 1ppm
Battery life Antenna 10 hours, Field Computer 15 hours
Antenna Channels 1408
Pole Carbon Rod, telescopic 2m, 20' Bubble Level, Quick Adapter
Field Software NESTLE on2go permanent (non-transferable)
Product Number (PID) 26052001

Highlights at a Glance

  • Simultaneous use of 4 satellite systems (GPS, GLONASS, GALILEO, BEIDOU)

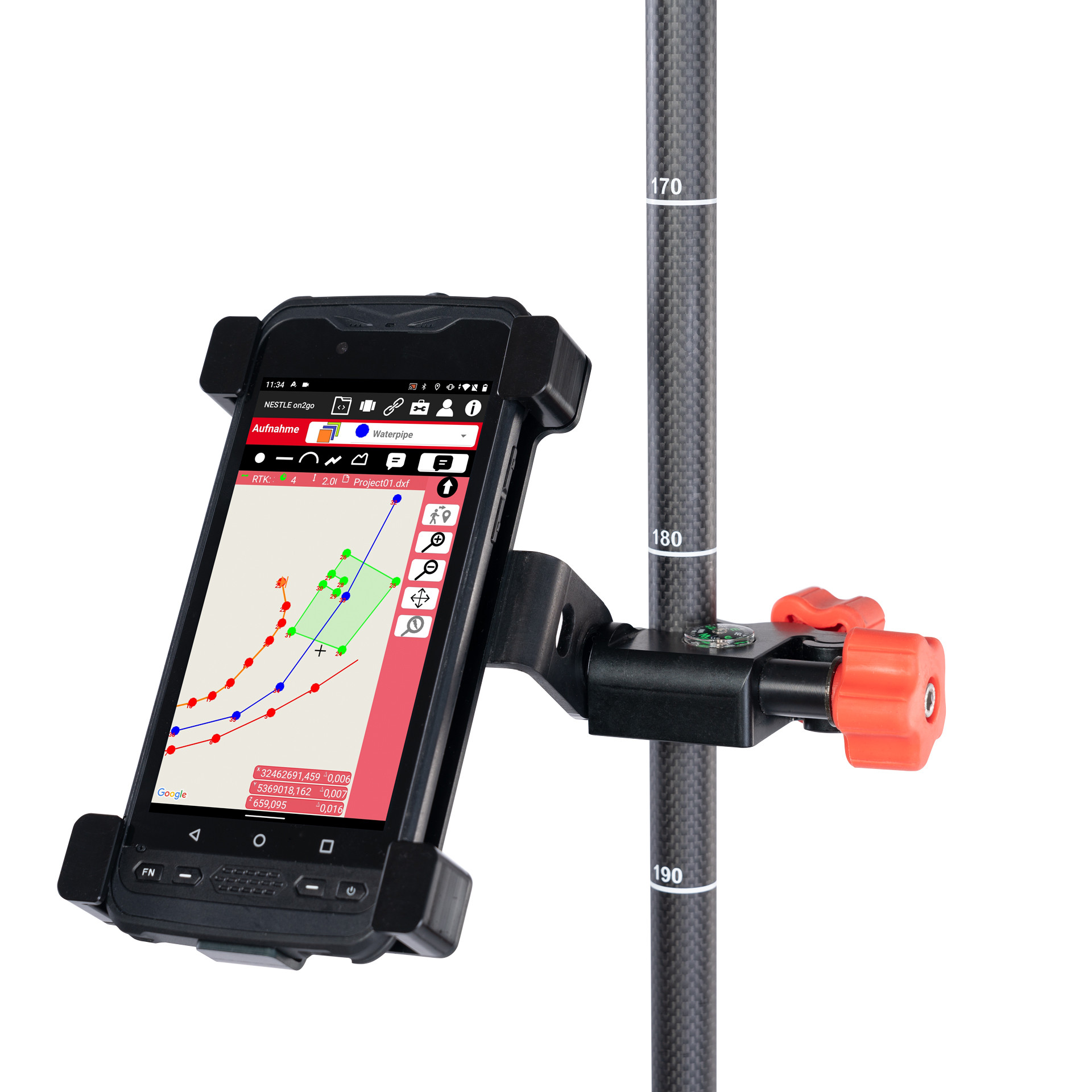

  • Wireless Connection between Antenna and Field Computer

Description

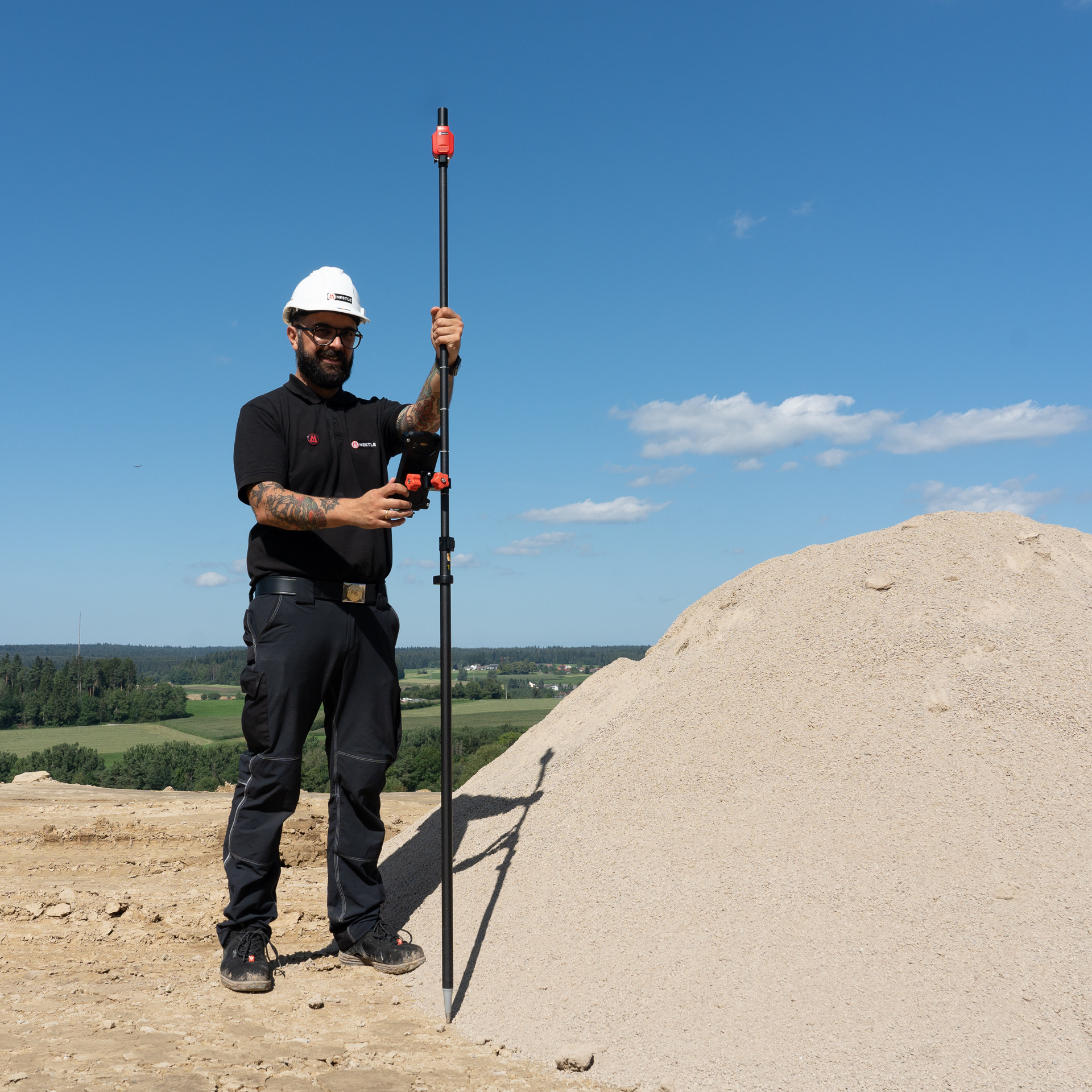

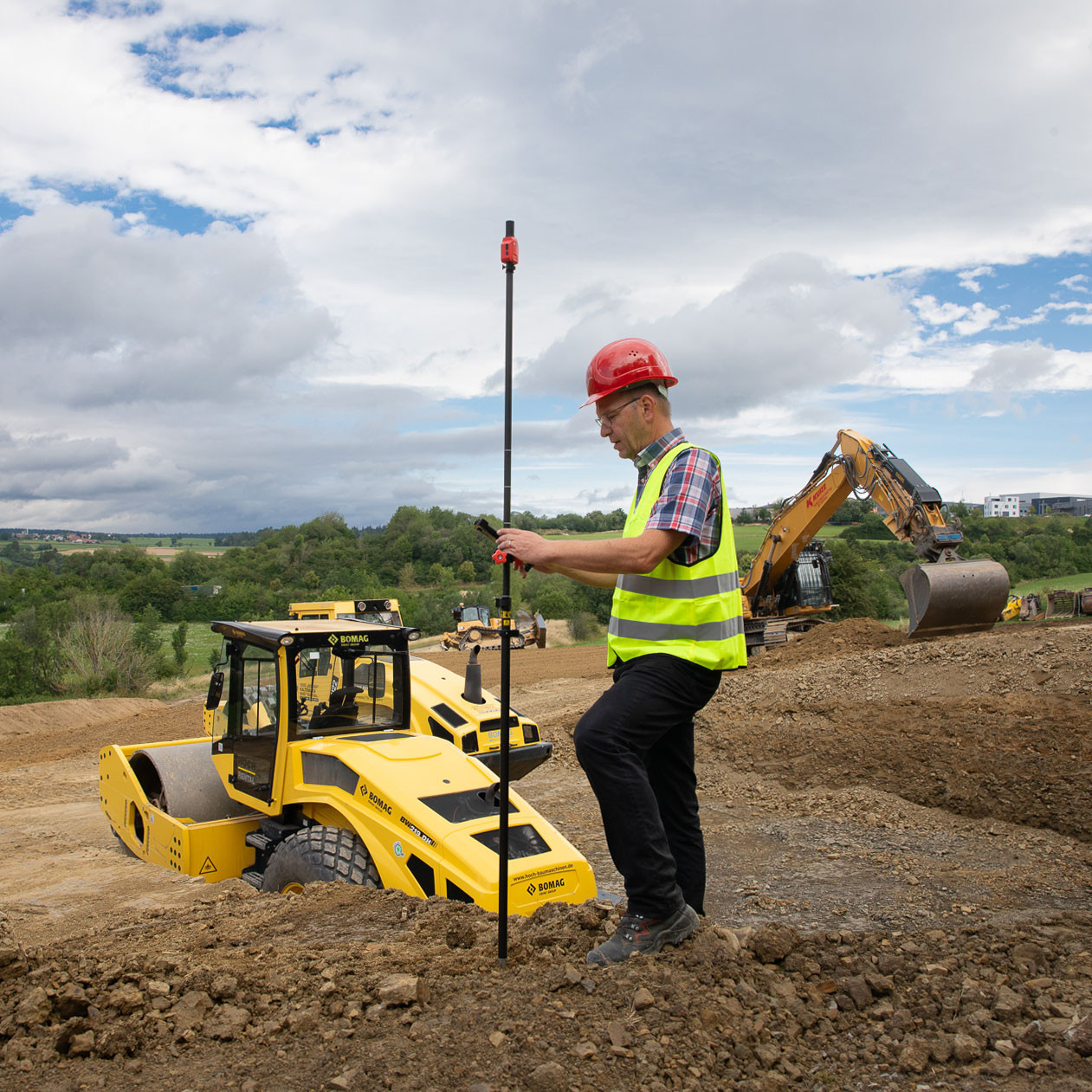

The NESTLE GNPS-52 is a precise, lightweight, mobile satellite positioning system for point recording and point staking in topography, documentation, construction and volume measurements. Surveying work can be carried out conveniently thanks to the simultaneous use of 4 satellite systems (GPS, GLONASS, GALILEO, BEIDOU) and thus sets a benchmark for satellite positioning systems in the entry-level class. The proprietary and user-friendly NESTLE on2go app enables the user to carry out surveying tasks independently without any specialised knowledge.


For more information, please visit the following pages: www.gnps-systeme.com


Further compact information:

Scope of Delivery

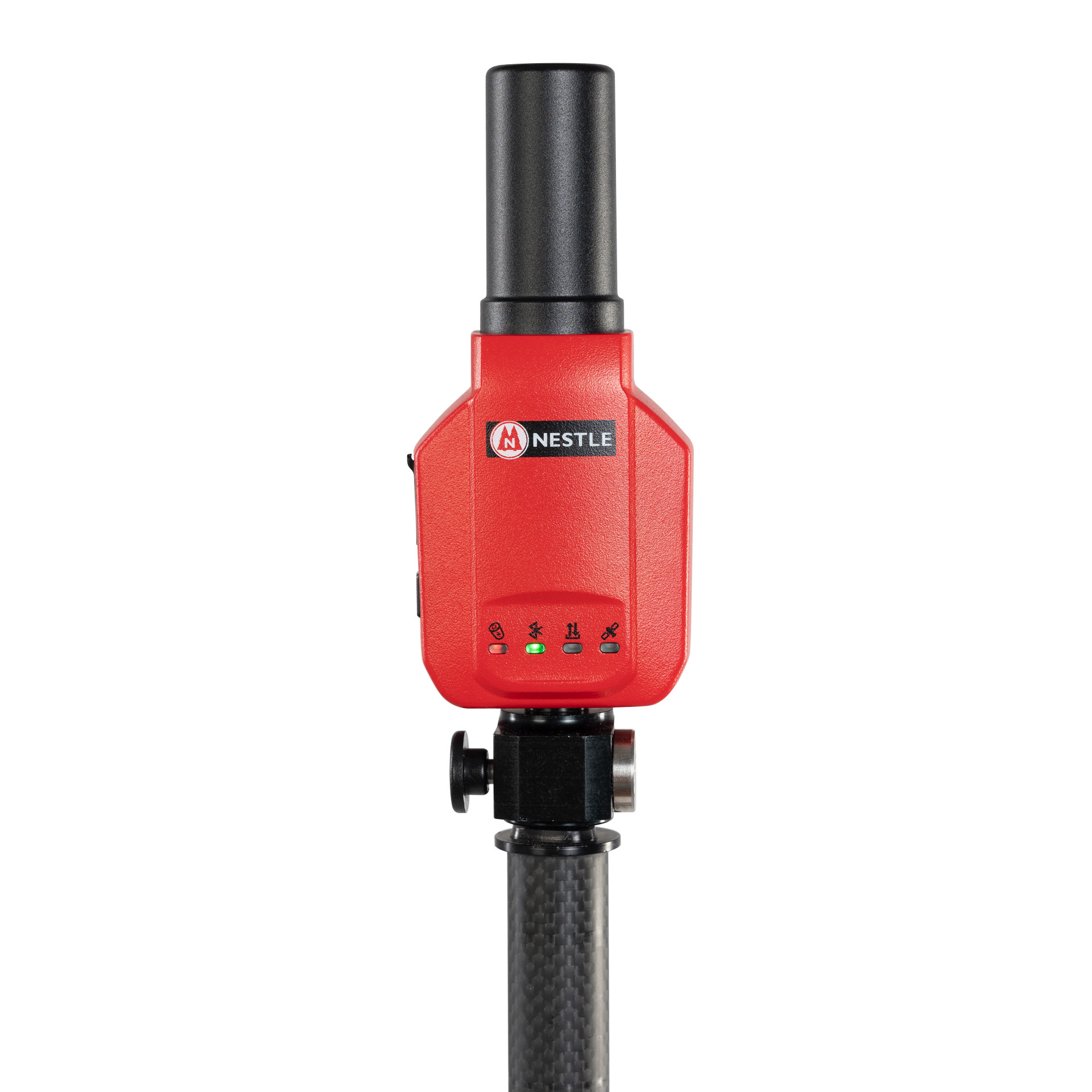

GNPS-52 antenna
Height Adapter with 5/8" Internal Thread
