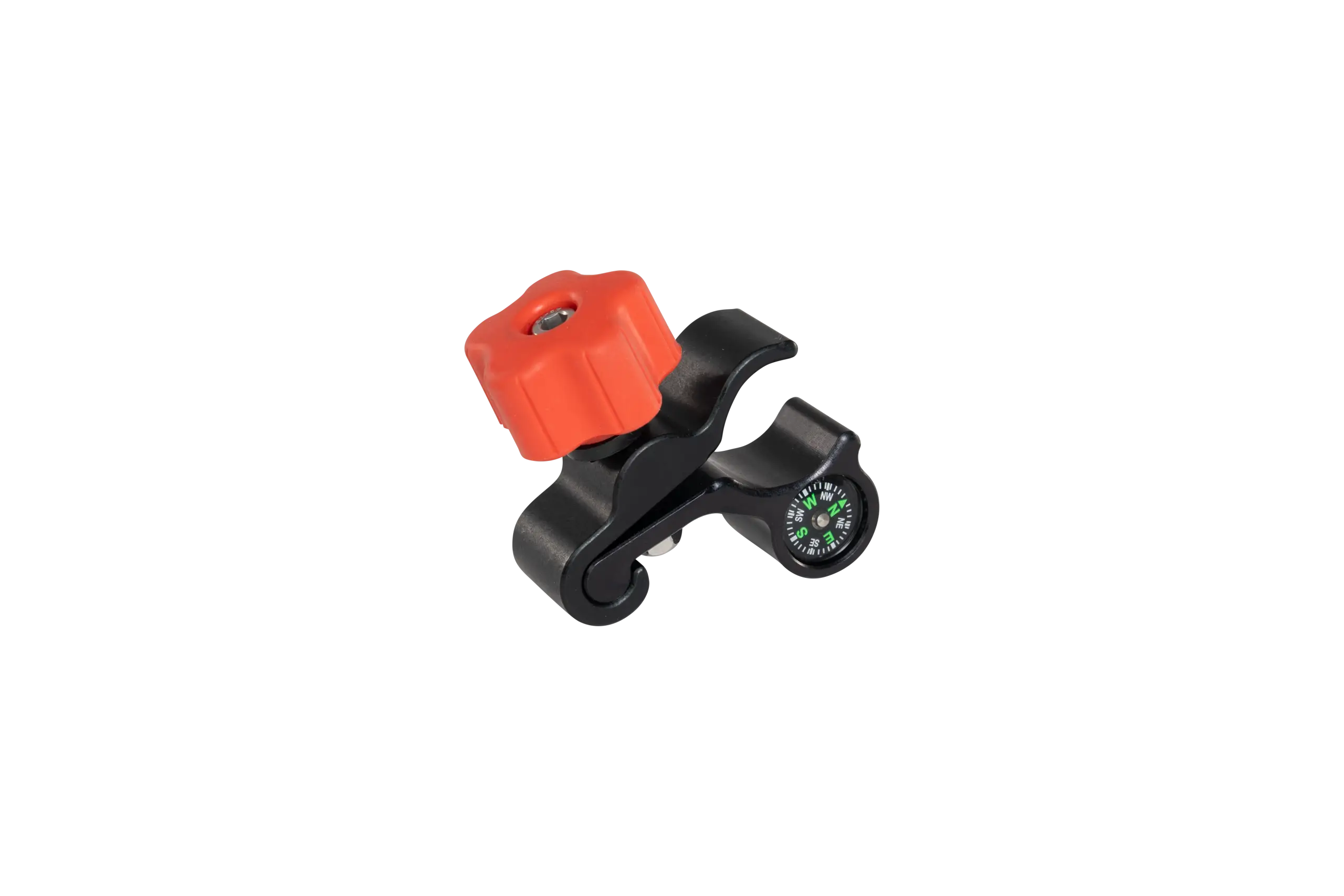

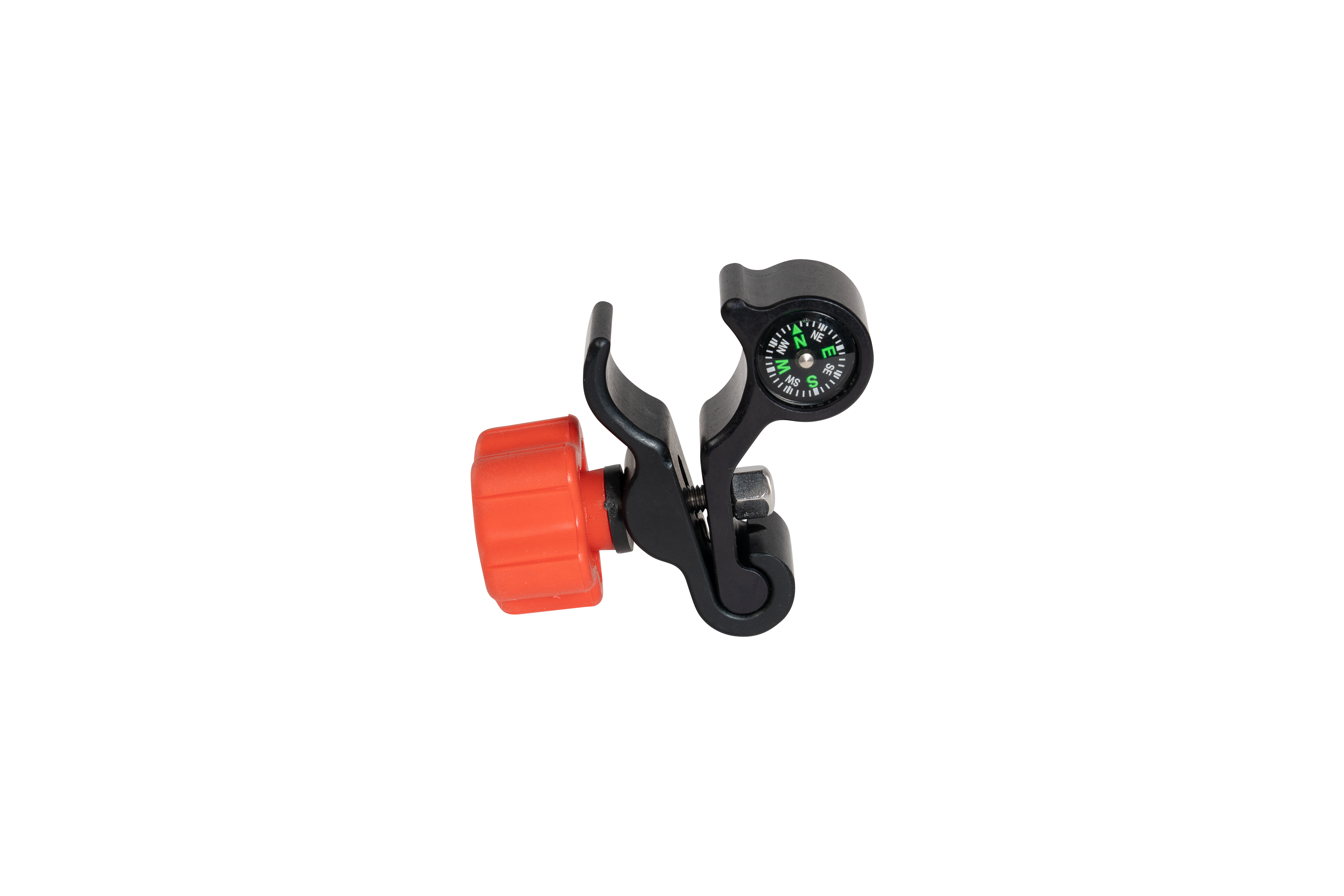

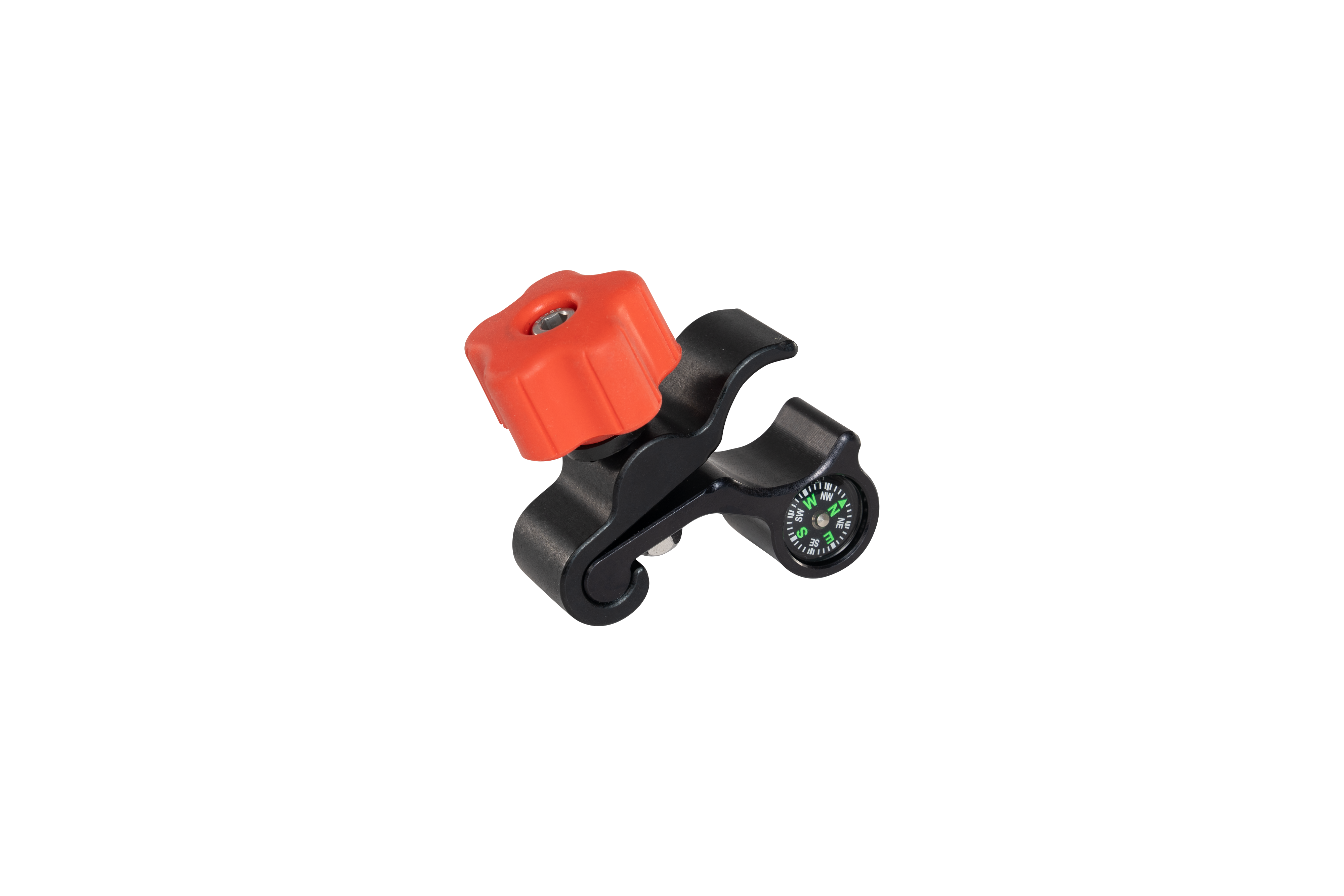

NESTLE Clamp Compass for poles NCC-1

Clamp compass / Clamp vial - rotatable

Top Features

  • Circular vial and compass in one clamping unit.
  • For an ergonomic view of the circular vial.
  • Compass for orientation when setting out.
  • Easy to rotate.
  • Can be attached to any pole height.

Variants

Variant

Technical Data

Pole clamp double C clamp
for pole diameters Ø 22-32 mm and Ø 8-12 mm
Vial 20'
Compass magnetic
Weight 130 g
Product Number (PID) 14813000

Highlights at a Glance

  • Field computers on prism or GNSS poles often obscure the view of the pole vial. The NCC clamping unit can be attached to the pole at any height so that an optimal view of the circular vail is always possible.
  • Use the compass on the NCC clamping unit for orientation in the field.

Description

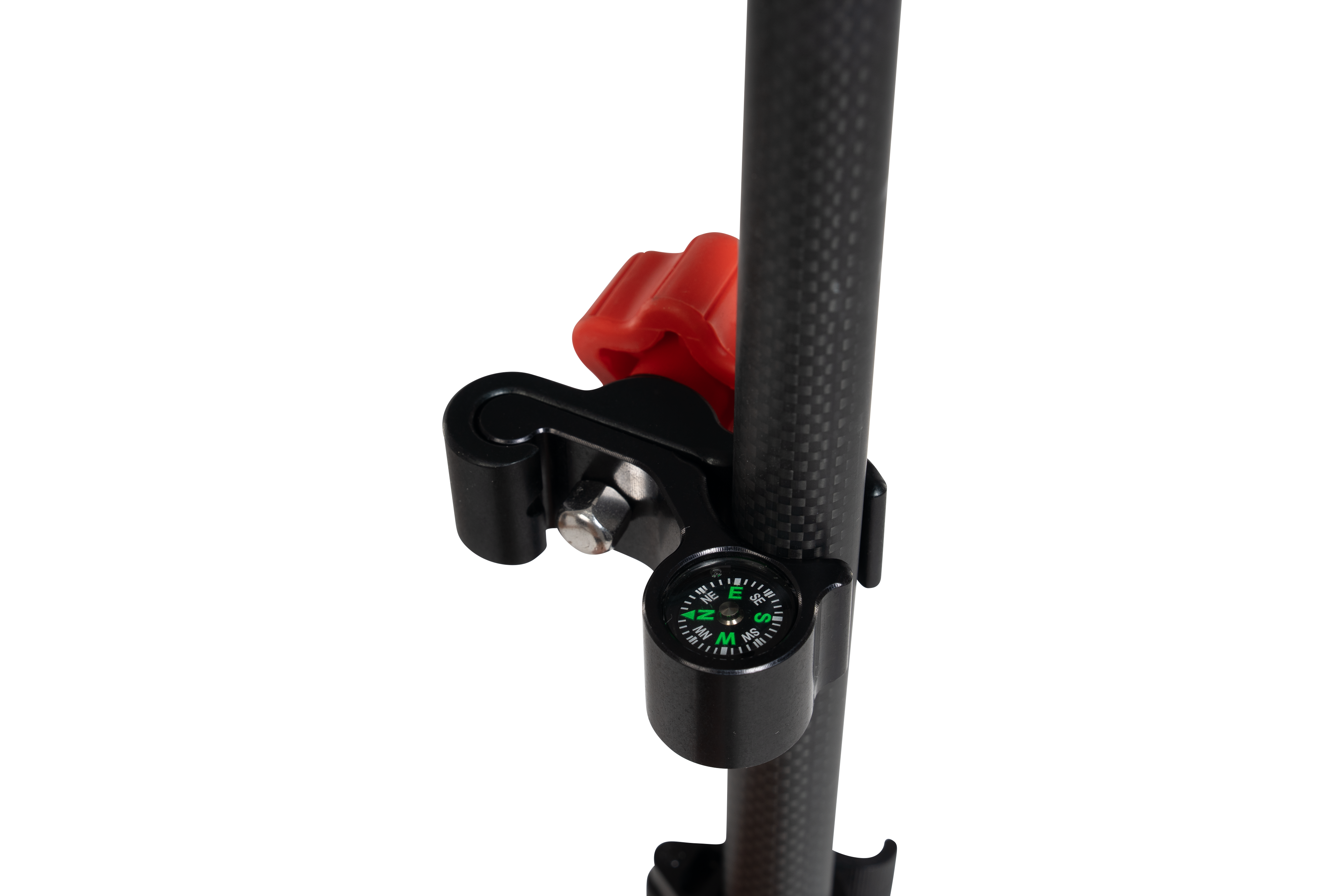

Knowing the cardinal directions is very helpful for orientation during surveying work (setting out). The NCC-1 compass is attached to the prism or GNSS pole with the practical double-C clamp and reliably indicates the cardinal directions.

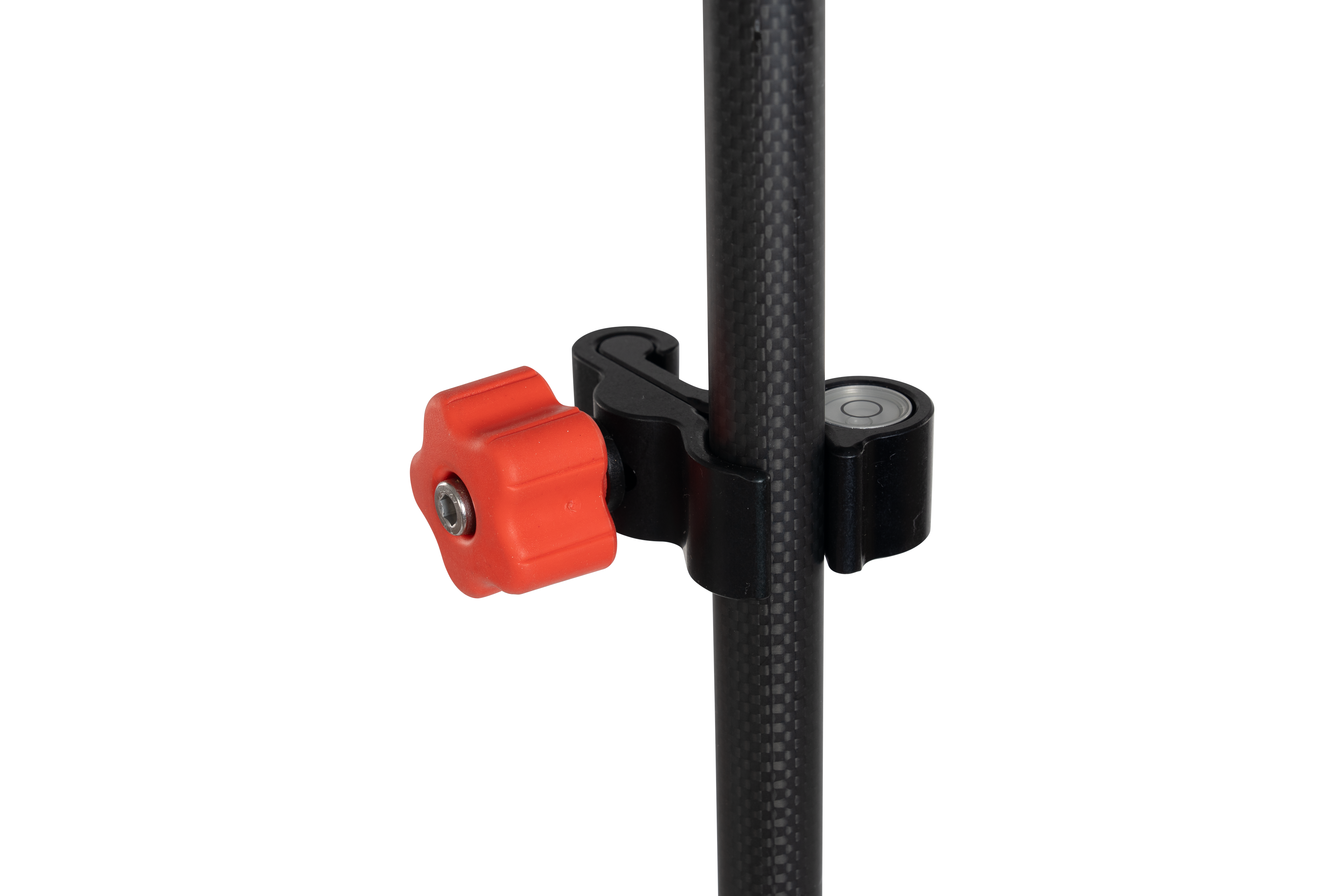

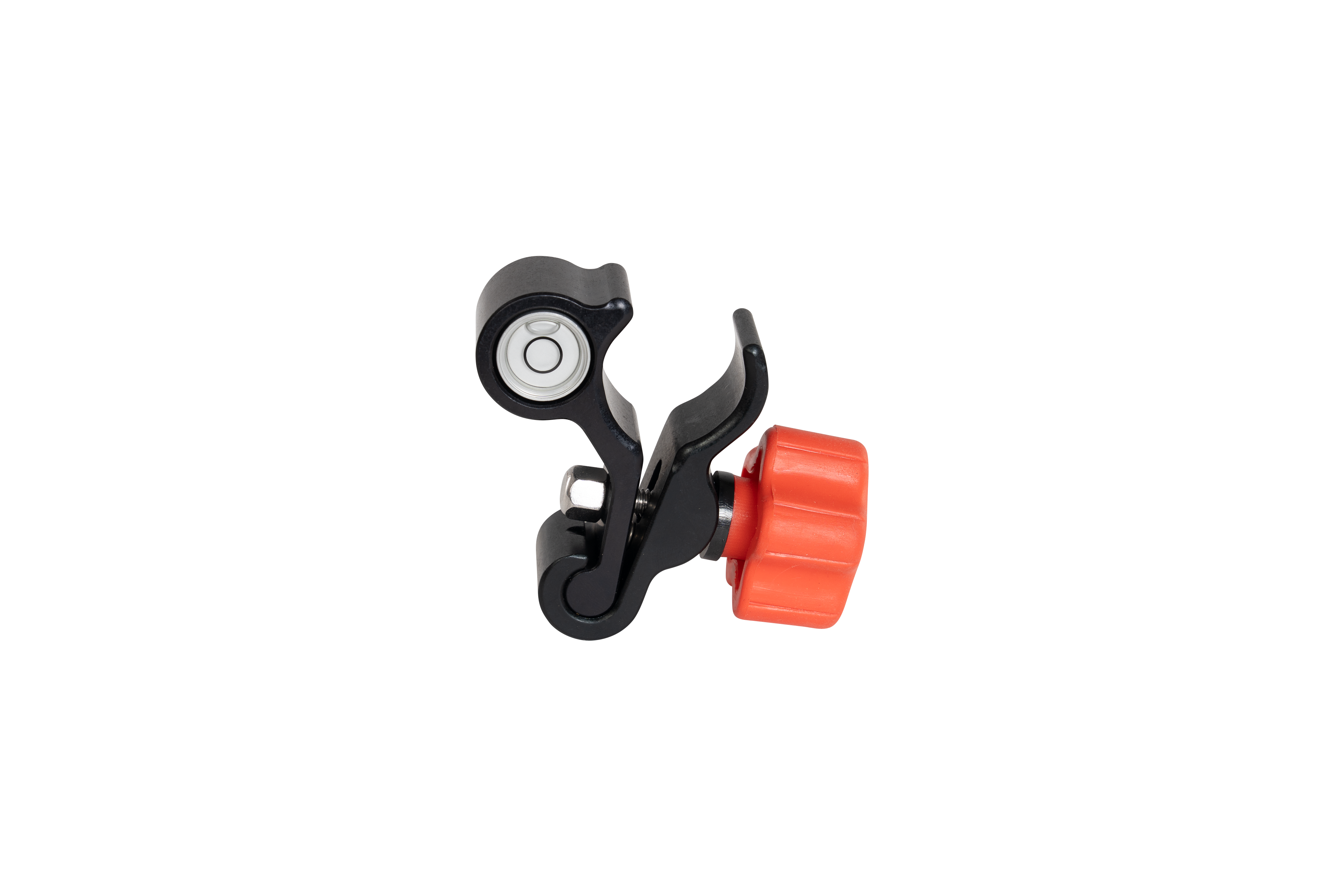

The clamping unit also has a circular vial. This can be attached to a prism or GNSS pole at any height, as field computers attached to the pole often block the view of the pole vial.

The clamping unit can be easily rotated so that either the vial or the compass can be used. This makes the clamping unit a useful tool for all surveying work in the field.

Scope of Delivery

1 x NESTLE Klemm-Kompass für Stäbe NCC-1
