Leica LINO L6R

3x360° multi-line laser with multi-function adapter and wall bracket

Top Features

  • Range up to 25 metres
  • Uninterrupted work thanks to Triple Power concept
  • High visibility due to red high-power laser diodes
  • Lithium-ion battery for up to 36 hours of operation
  • Large self-levelling range

Variants

Variant

Technical Data

Connection ¼
Working range Ø 50 m (depending on light conditions)
Working area with receiver Ø 140 m
Operational with receiver YES
Operation temperature -10°C to +50°C
Operating time Li-Ion up to 36 hrs, alkaline up to 25 hrs
Accuracy ± 1.5 mm per 5 m
Weight 781 g
Laser horizontal 360°
Laser vertical 2 x 360°
Laser colour red
Laser class 2
Dimensions 124 x 107 x 154 mm
Protection class IP 54
Self-levelling range ± 4°
Power supply Li-Ion , 3 x AA alkaline, or mains adapter
Product Number (PID) 16731000

Highlights at a Glance

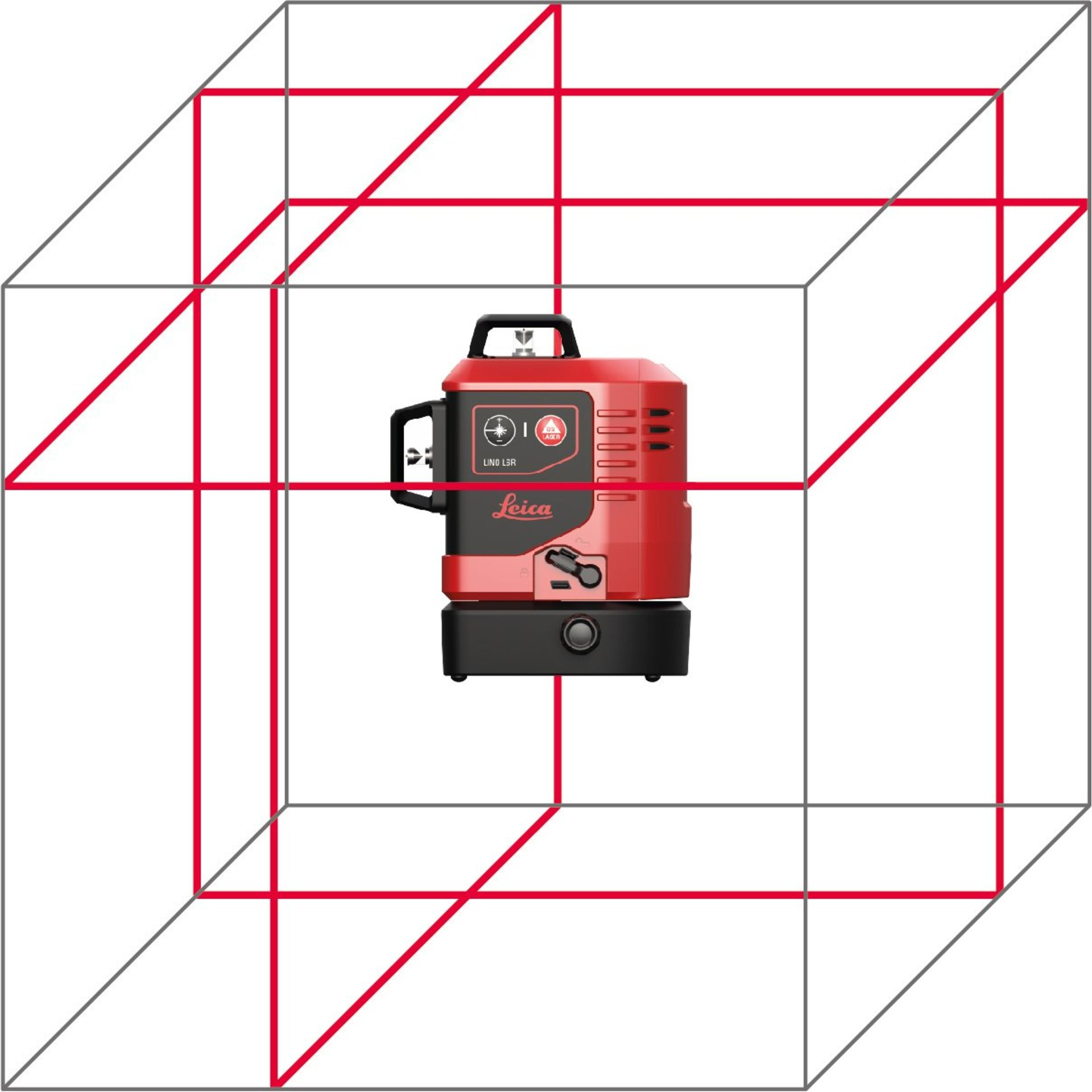

  • 3 x 360° laser lines (2 x vertical, 1 horizontal)
  • Suitable for construction site use due to robustness
  • Laser power adjustable in three steps
  • Self-levelling
  • Fixed plumb point thanks to integrated base
  • Triple power supply concept for uninterrupted work

Description

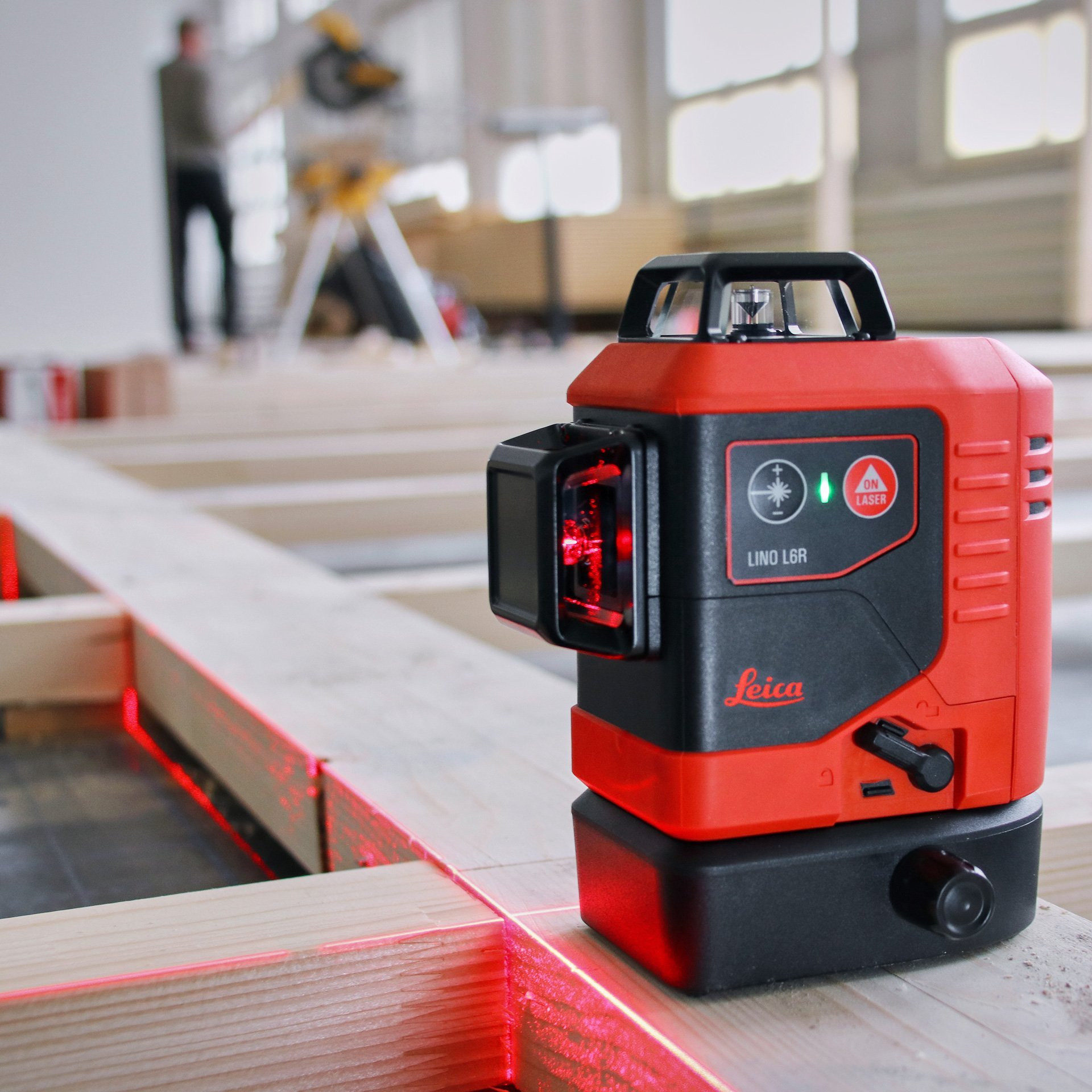

  • The Leica LINO L6R is a self-levelling multi-line laser with a red laser beam.
  • The professional line laser has three 360° visible laser lines.
  • Thin, sharp and highly visible 360° laser lines make this line laser ideal for demanding applications.
  • The vertical laser lines projected onto walls and ceiling can be easily adjusted after setting up the plumb point. The integrated base of the line laser allows the intersection of the two vertical laser lines (plumb point) to be positioned as required. The laser lines can then be further aligned by ± 10° without changing the plumb point.
  • The triple power supply concept always allows uninterrupted work. The Leica LINO L6R can be powered with 3x AA batteries, Li-Ion rechargeable batteries or with a mains adapter (scope of delivery depends on article number).
  • For better visibility or to save energy, the power of the laser lines can be adjusted in three steps (100%, 75% and 50%).

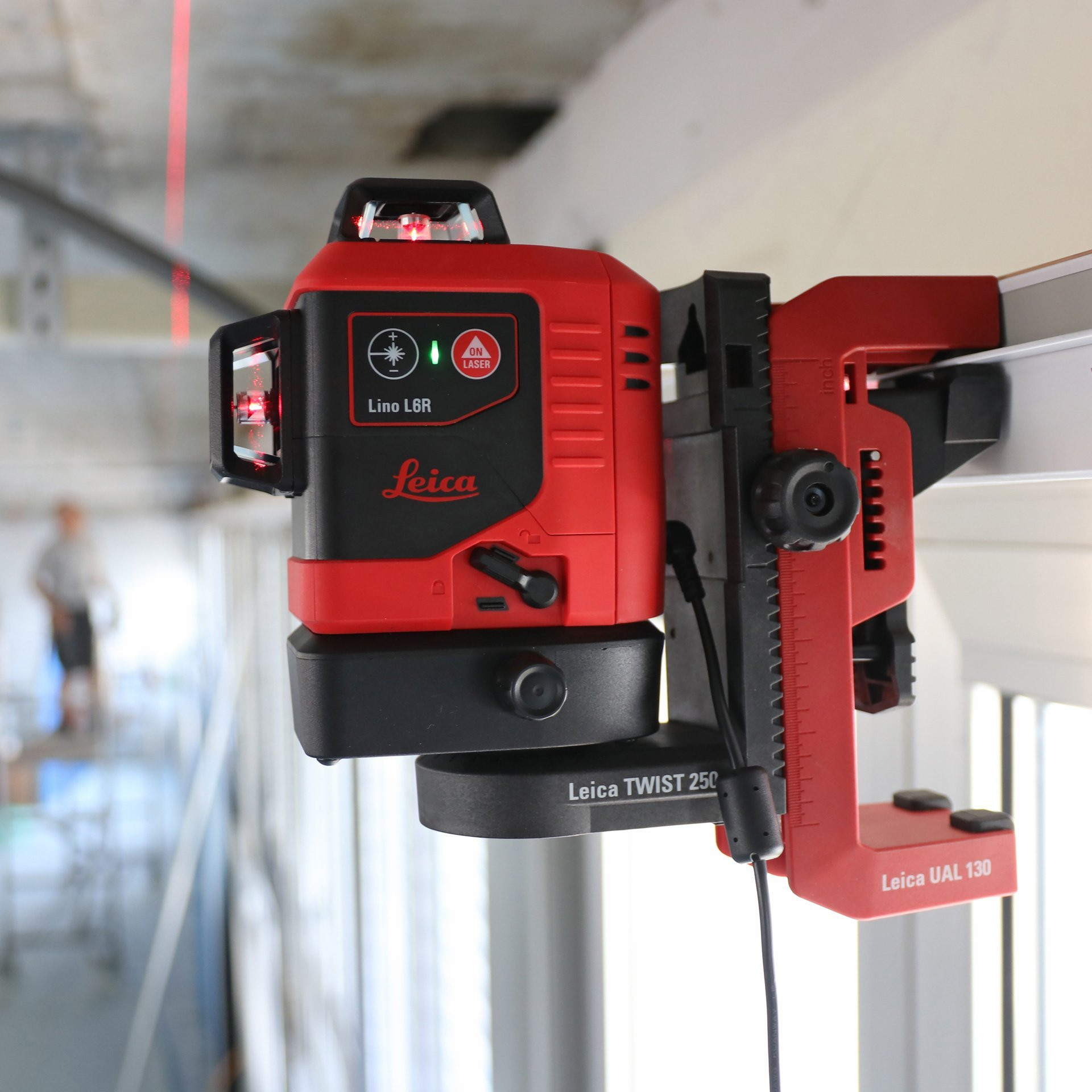

  • With TWIST250 magnetic adapter and UAL130 wall mount.

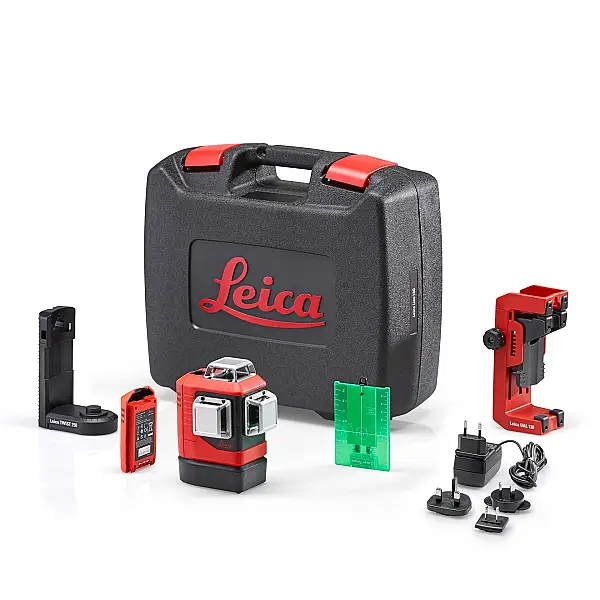

Scope of Delivery

Leica Lino L6R
Twist 250 magnetic adapter
UAL 130 Wall adapter
3x AA battery + battery compartment for alkaline
Quick reference guide, calibration certificate
Target plate
Hard shell case
