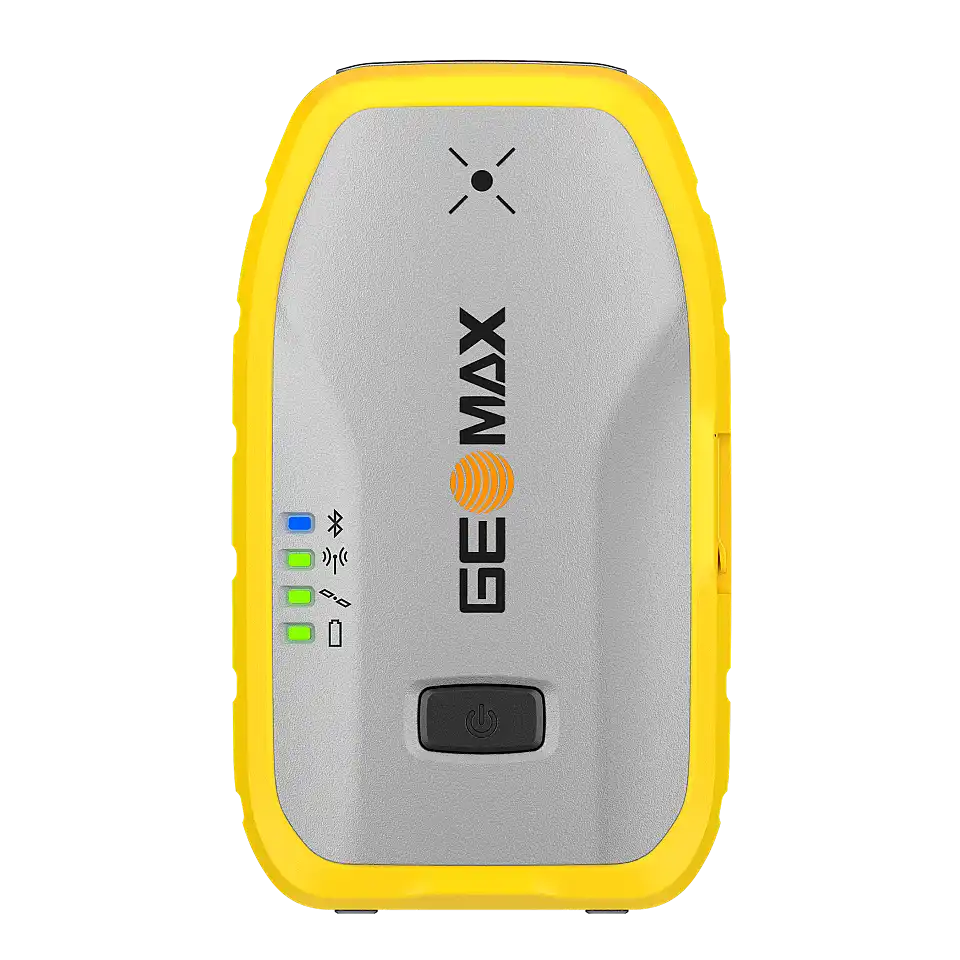

GeoMax Zenith06 Pro
Tilt easy, measure fast
Top Features
-
Calibration-free tilt compensation
-
184 channels, multi-constellation
-
Fully integrated into the Geomax product environment
-
Compact and lightweight design
Variants
Variant
Technical Data
| GNSS Tracking | GPS, Glonass, Galileo, BeiDou, QZSS, SBAS |
|---|---|
| Channels | 184, multi-constellation |
| Tilt compensation | Calibration-free, Resistant to magnetic interferences |
| Interfaces and connection | Power button, LED status indicator, Bluetooth, USB Type C |
| Working time | > 20 hours |
| Working temperature | -40°C to +65°C |
| Accuracy RTK | Hz 20 mm + 1 ppm, V 30 mm + 1 ppm |
| Accuracy RTK - tiltmode | additional Hz uncertainty 2 cm up to 30° inclination |
| Protection class | IP67 |
| Dimensions | 139 mm x 81 mm x 31 mm |
| Weight | approx. 340g |
| Product Number (PID) | 29538000 |
Highlights at a Glance
-

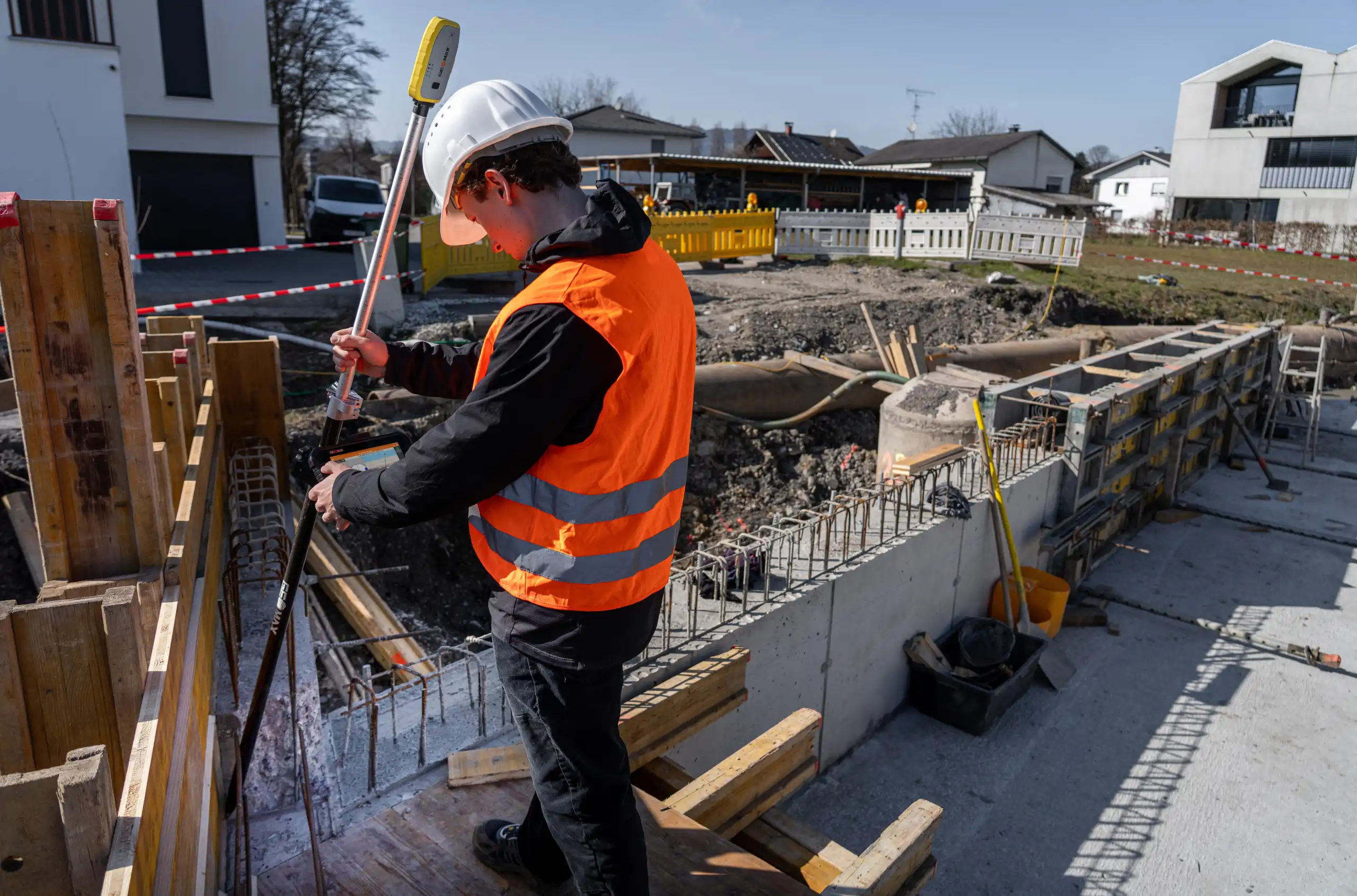

Measure quickly and flexibly without holding the pole vertically.
-
Benefit from the tools of the X-PAD field software, which simplify common GNSS positioning tasks.
-
Protection class: IP67 protection against dust and water.
-
Work with confidence even in demanding construction environments thanks to the durable construction.
-
GPS, Glonass, Galileo, BeiDou, QZSS, SBAS satellite tracking
Description
The Zenith06 Pro is an easy-to-use and compact GNSS smart antenna with tilt compensation that offers professional-grade positioning accuracy in the field. Get reliable results quickly and gain access to difficult points for overall productivity gains.
Fully integrated with user friendly X-PAD Ultimate field software, the Zenith06 Pro streamlines your workflow, making construction tasks like stake-out, grade checking, and data collection faster and easier.
Scope of Delivery
Zenith06 Pro
power adapter
USB-C charging cable
soft bag
pole mount 5/8"
Quick Guide
