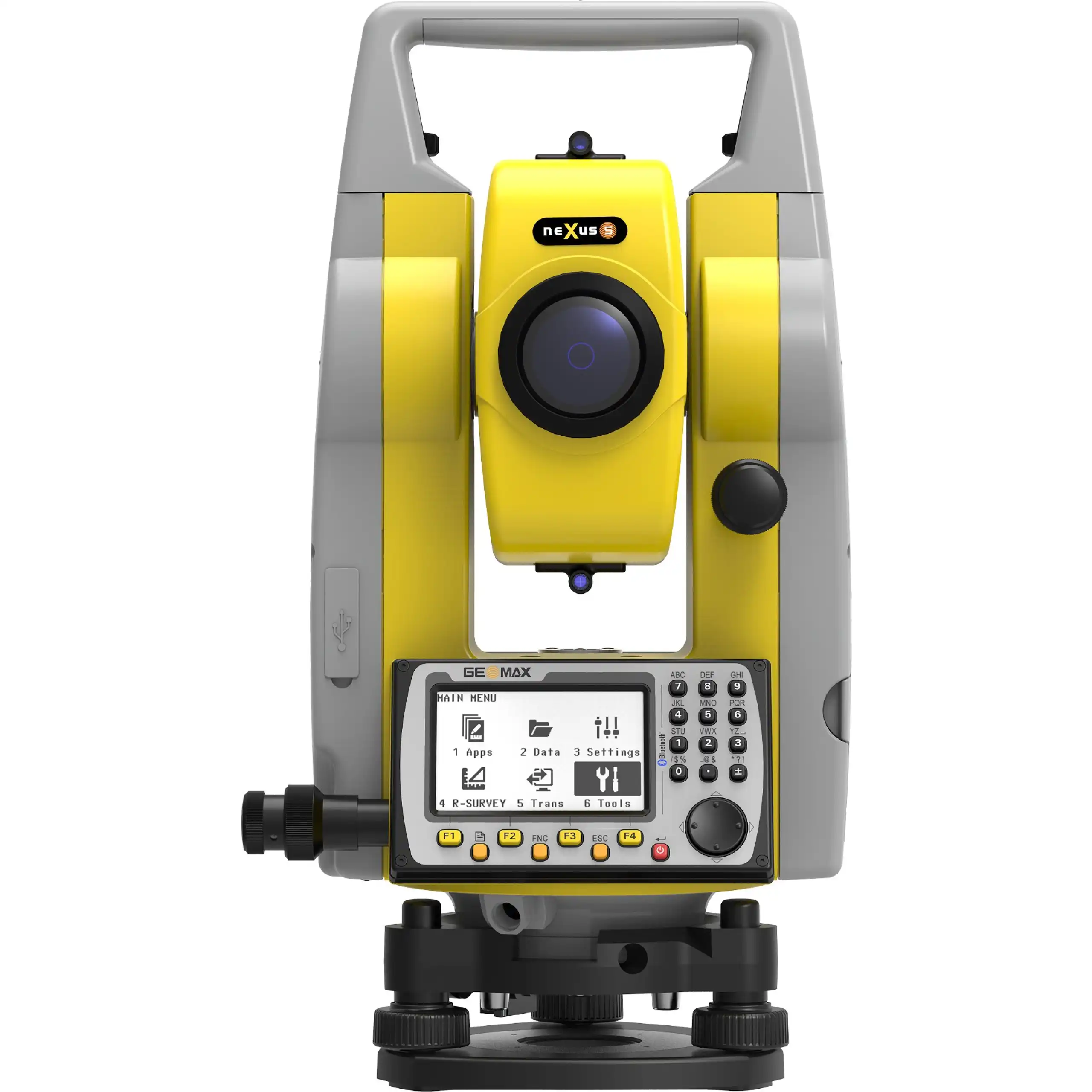

Total Station GeoMax Zoom25
Quality and reliability
Top Features
-
Robust, dust and waterproof design
-
Backlit display (280 x 160 pixels), 8 lines x 30 characters
-
Operating system Windows Embedded CE
-
Laser plummet
Variants
Variant
Technical Data
| Battery / runtime | Li-Ion 4.4 Ah / 7.4V / 16 hours/battery |
|---|---|
| Connections | Serial, USB, internal Bluetooth, external power connector |
| Accuracy prism measurement | 2 mm + 2 ppm |
| Accuracy reflectorless | 2 mm + 2 ppm |
| Accuracy angle measurement | 5" (1.5 mgon) |
| Weight | 5100 g |
| Range reflectorless / one prism | up to 500 / up to 3,500 m |
| Protection class | IP55, 95% non-condensing |
| Memory | 50.000 points, USB removable memory |
| Temperature range | -20 to +50 °C |
| Product Number (PID) | 29026000 |
Highlights at a Glance
-
Manual total station for fast and precise work
-
For complex stakeouts
-
Field computer (e.g. Panasonic Toughbook) the ideal solution for your measuring tasks
-
3 angle accuracy classes 1", 2",5" available (this article with 5")
-
Range on prism 3,500 m, range reflectorless 500 m
Description
The GeoMax Zoom25 is a professional manual total station. Intelligent distance measurement technology makes the Zoom25 suitable for long ranges and the highest accuracy requirements under the toughest conditions. It is the right choice for surveyors, contractors, engineers and GIS specialists. With the GeoMax Zoom25 total station you can perform all standard surveying tasks that occur on your construction site. With the Geomax Zoom25 total station, you minimise the time spent on each surveying task and increase your performance and accuracy to the maximum. For more information please visit www.digitale-bauvermessung.de
This part number has an angular measurement accuracy of 5" (1.5 mgon), optional instruments of 1" (0.3 mgon) or 2" (0.6 mgon) are also available.
Please note that the price is only available on request.
