Total Station GeoMax Zoom50
When performance matters
Top Features
-
Robust, dust and waterproof design
-
Large Q-VGA colour & touch display with high resolution
-
Embedded CE operating system
-
Laser plummet
Variants
Variant
Technical Data
| Battery / runtime | Li-Ion 4.4 Ah / 7.4V / 16 hours/battery |
|---|---|
| Connections | Serial, USB, internal Bluetooth, external power connector |
| Accuracy prism measurement | 2 mm + 2 ppm |
| Accuracy reflectorless | 2 mm + 2 ppm |
| Accuracy angle measurement | 2'' (0.6 mgon), optional 1'' (0.3 mgon), 5'' (1.5 mgon) |
| Weight | 5.100 g |
| Range reflectorless / one prism | up to 500 / up to 3,500 m |
| Protection class | IP55, 95% non-condensing |
| Memory | 50.000 points internal, USB stick |
| Temperature range | -20 to +50 °C |
| Product Number (PID) | 29027000 |
Highlights at a Glance
-
Manual total station for fast and precise work
-
For complex stakeouts
-
Control with optional field computer possible.
-
3 angular accuracy classes (this item 2"), reflectorless 500 m or 1,000 m (this item 500 m),
-
Internal Bluetooth.
Description

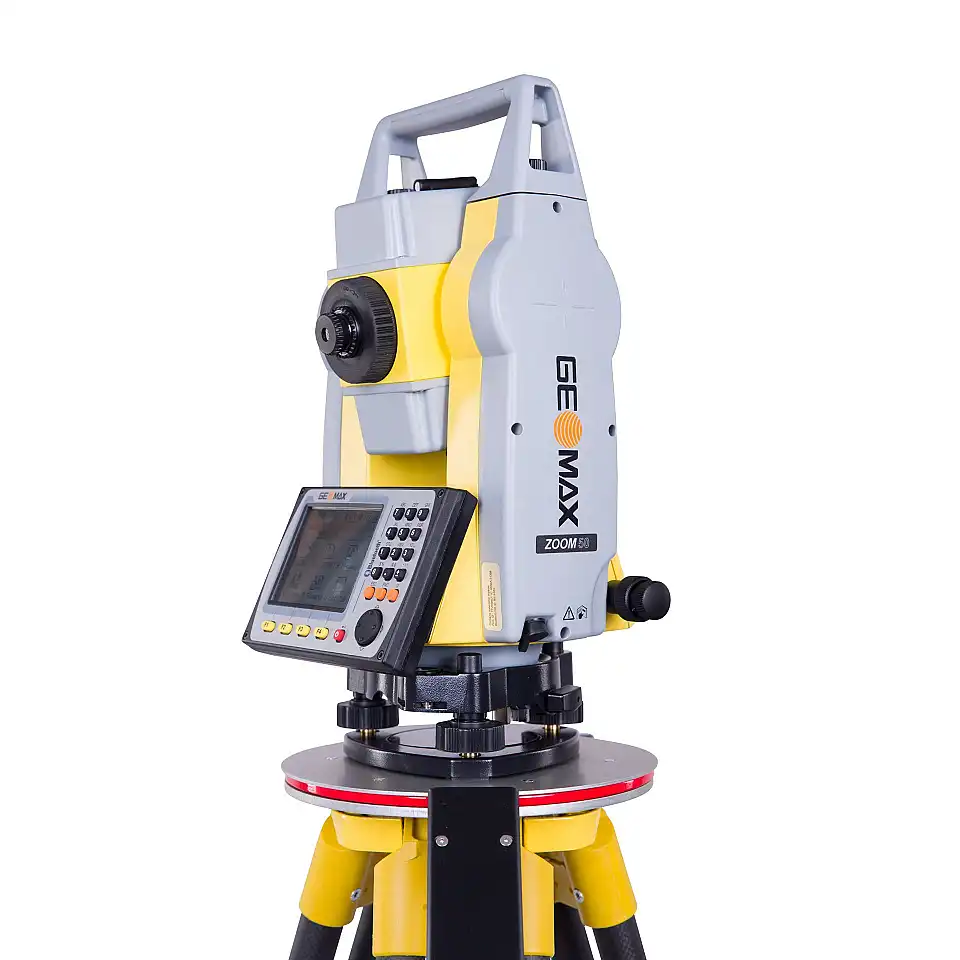

The GeoMax Zoom50 is a professional manual total station. Intelligent distance measurement technology makes the Zoom50 suitable for long ranges and the highest accuracy requirements under the toughest conditions. It is the right choice for surveyors, contractors, engineers and GIS specialists. With the Zoom50 manual total station you can carry out all surveying tasks that occur on your construction site. With the Geomax Total Station Zoom50 you minimise the time spent on each surveying task and increase your performance and accuracy to the maximum. For more information please visit www.digitale-bauvermessung.de
This part number has an angular measurement accuracy of 2" (0.6 mgon), optional instruments of 1" (0.3 mgon) or 5" (1.5 mgon) are also available.
Please note that the price is only available on request.
