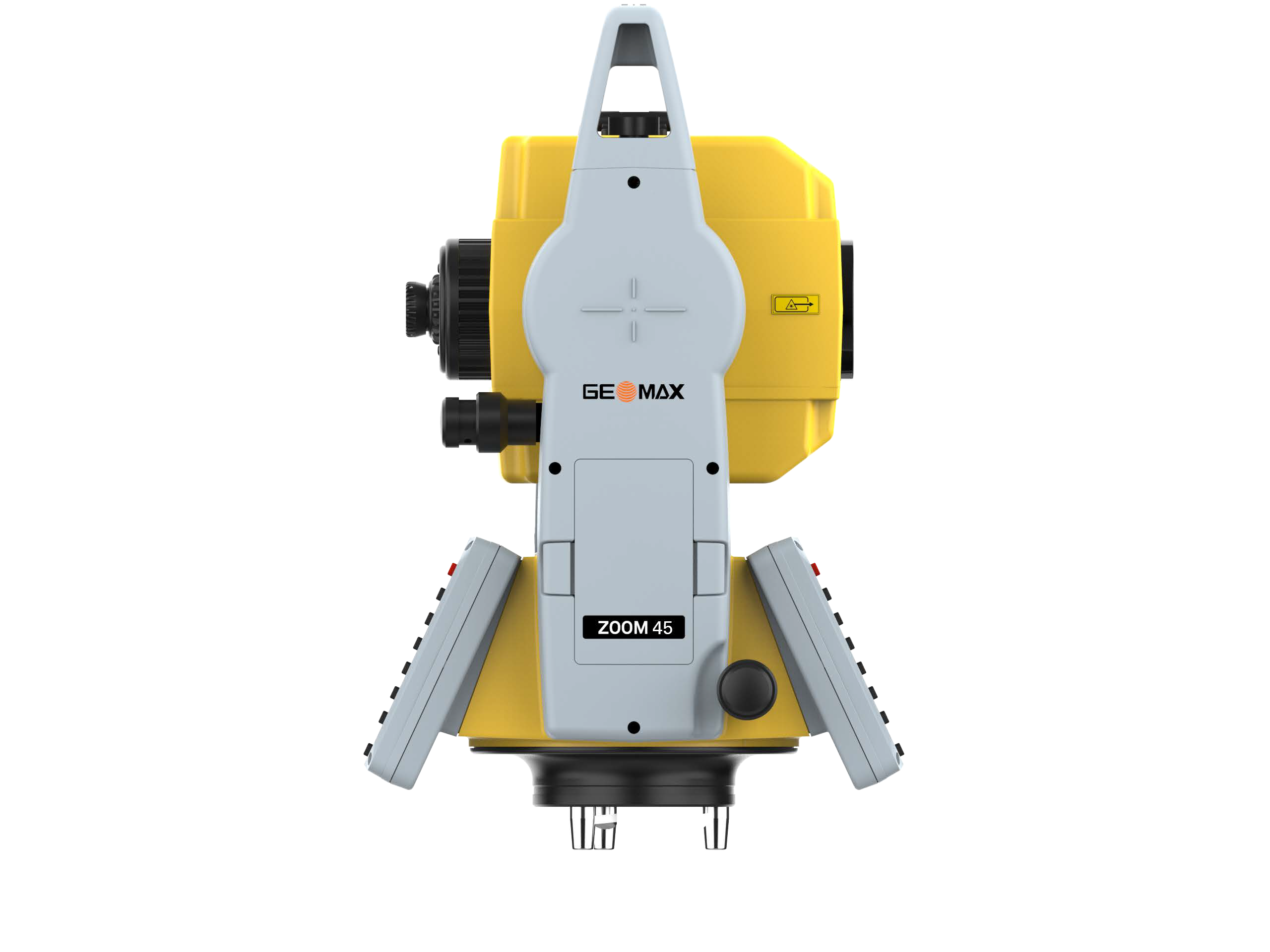

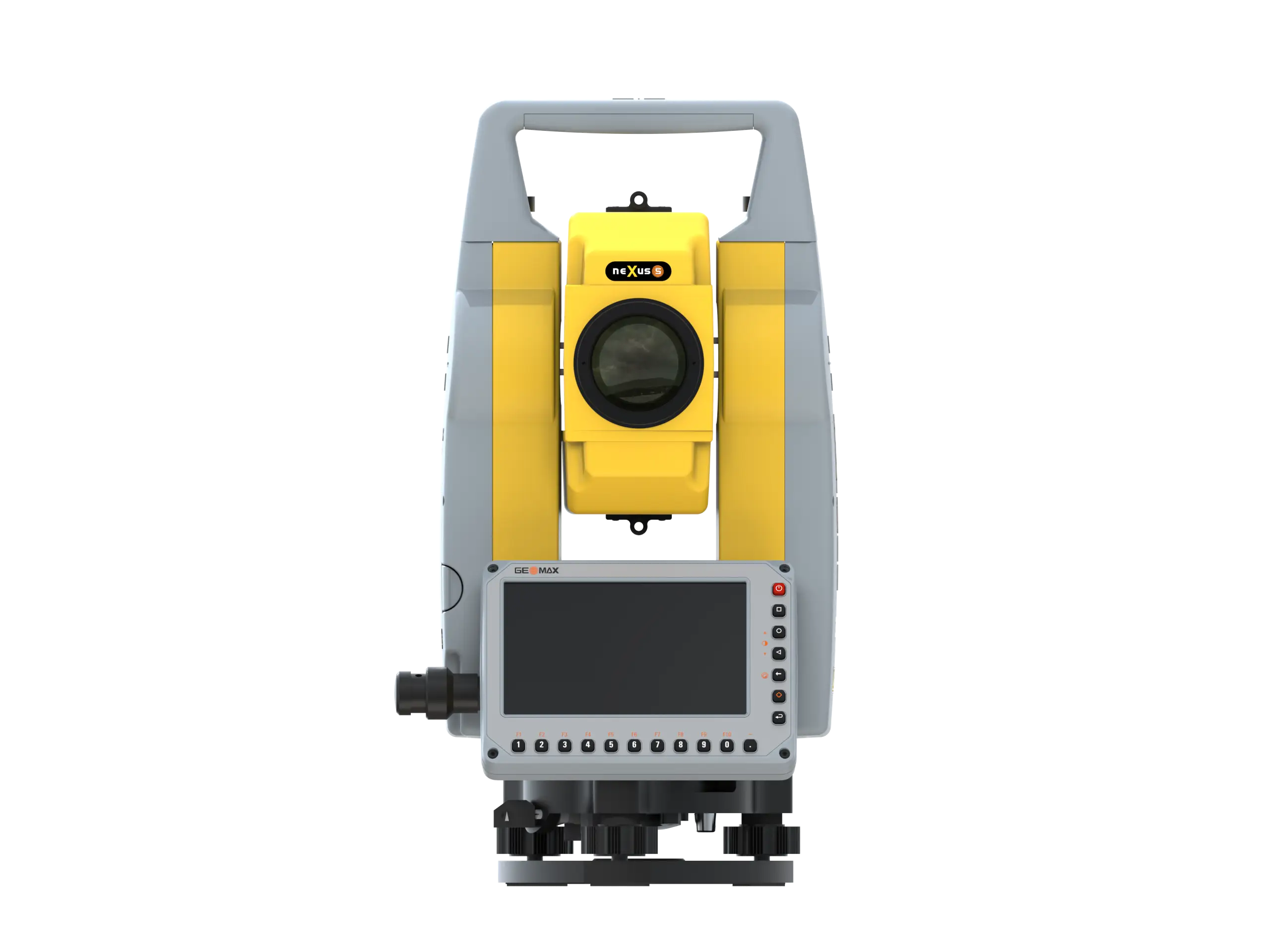

Total Station GeoMax Zoom45, neXus5

Die manuelle Totalstation für The manual total station for surveying and layout tasks

Top Features

  • Robust design combined with high precision
  • Large 5" screen and 18 buttons
  • Android 11 operating system
  • Laser plummet
  • 5" version (29061000) or 2" version (29062000)

Variants

Variant

Technical Data

Power / Operating time Li-Ion 6.4 Ah / 7.4 V / up to 8 hours
Interface USB mini, Bluetooth, WLAN
Accuracy prism measurement 2 mm + 2 ppm
Accuracy reflector less 3 mm + 2 ppm
Accuracy angle measurement 5“ (29061000) or 2" (29062000)
Weight 5.1 kg (without battery)
Range reflector less / one prism up to 500m / up to 5000m
Protection class IP55
Operating temperature -20°C to +50°C
Operating System Android 11
Product Number (PID) 29061000

Highlights at a Glance

  • The Zoom45 offers accuracy, rapid point measurements and a digital workflow, enhancing the value for your investment.
  • The Zoom45 with Android 11 operating system easily connects to software and devices across the GeoMax ecosystem, including X-PAD Ultimate field software.

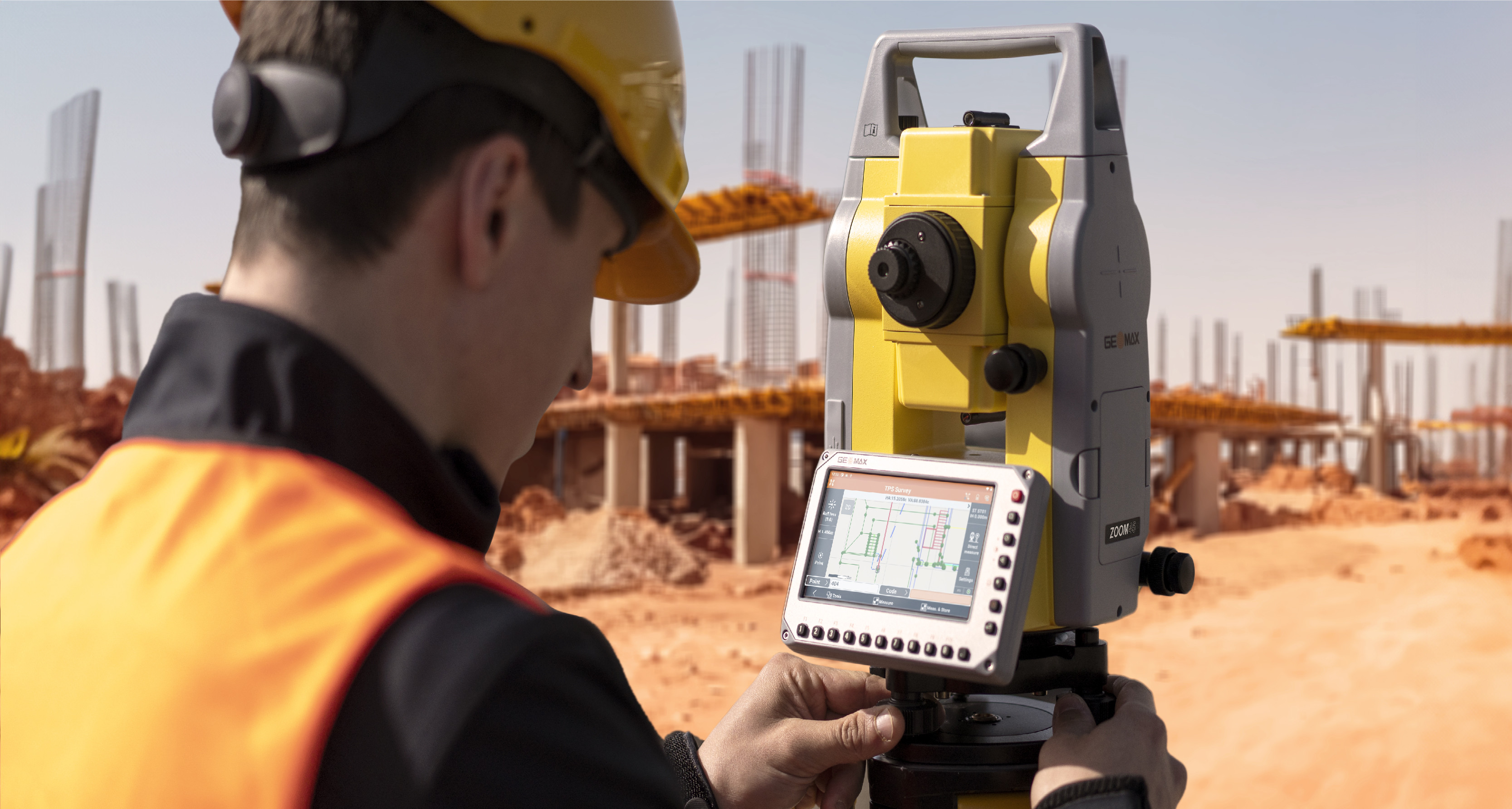

  • The Zoom45’s 5-inch touchscreen display is optimal for working with graphics in X-PAD on construction sites and across environmental conditions.
  • Second display available as an option.
  • Measure up to 500m reflectorless.

Description

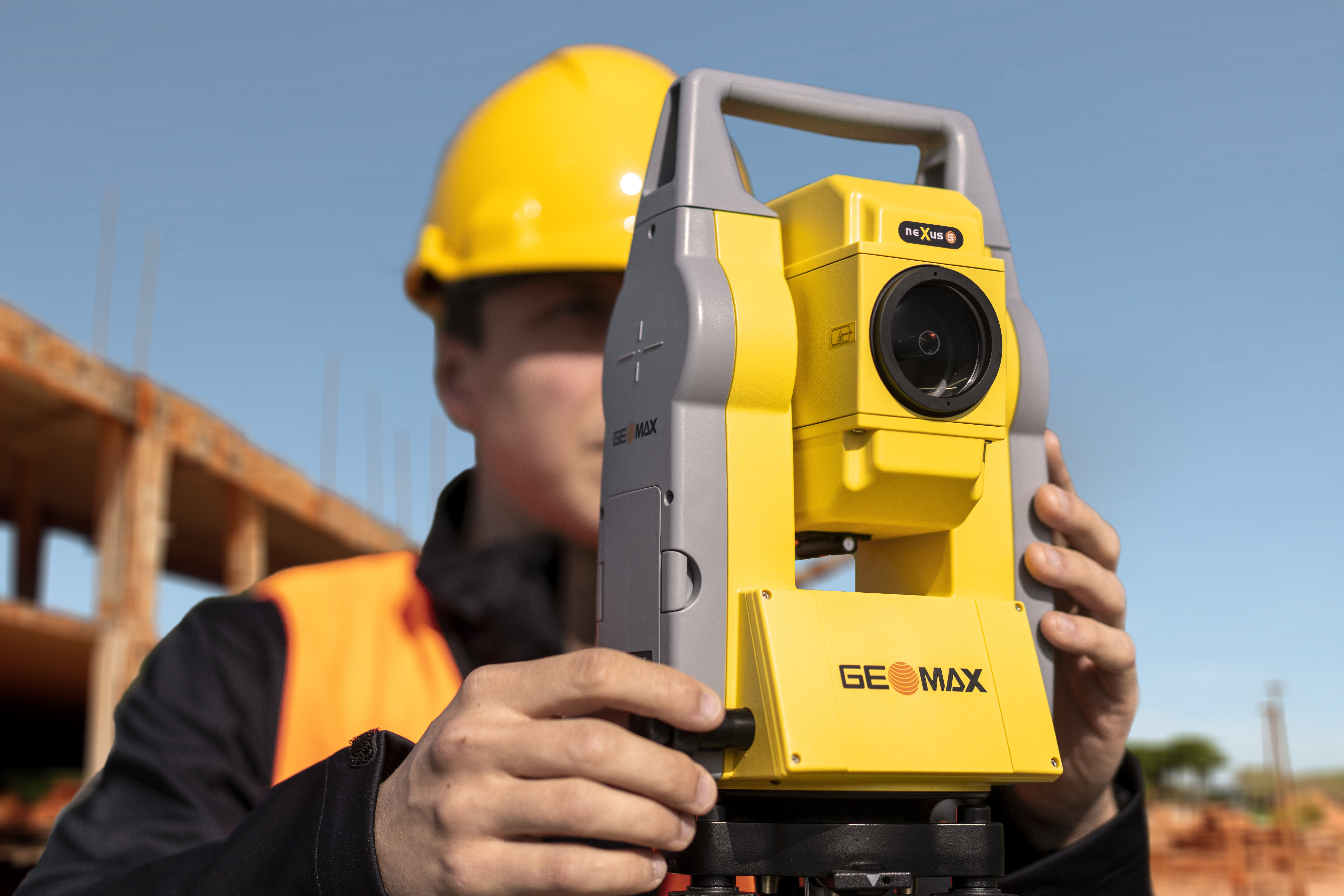

The Zoom45 is the go-to manual total station for construction surveyors and operator crews, combining rapid point measurements, durability, and straightforward operation. An ideal companion for the construction site, the Zoom45 runs X-PAD Ultimate field software with a large screen for graphical views, enabling fast measurements and layout using the instrument alone or paired with a field controller.

Additionally, easily exchange data with the office via X-PAD 365 and continue working in the same software ecosystem, bringing an efficient digital dataflow to your work with manual total stations.

Scope of Delivery

Zoom45
1 x battery
charging cradle with power supply
12V plug for charging cradle
tribrach
rain cover
quick guide
transport case
