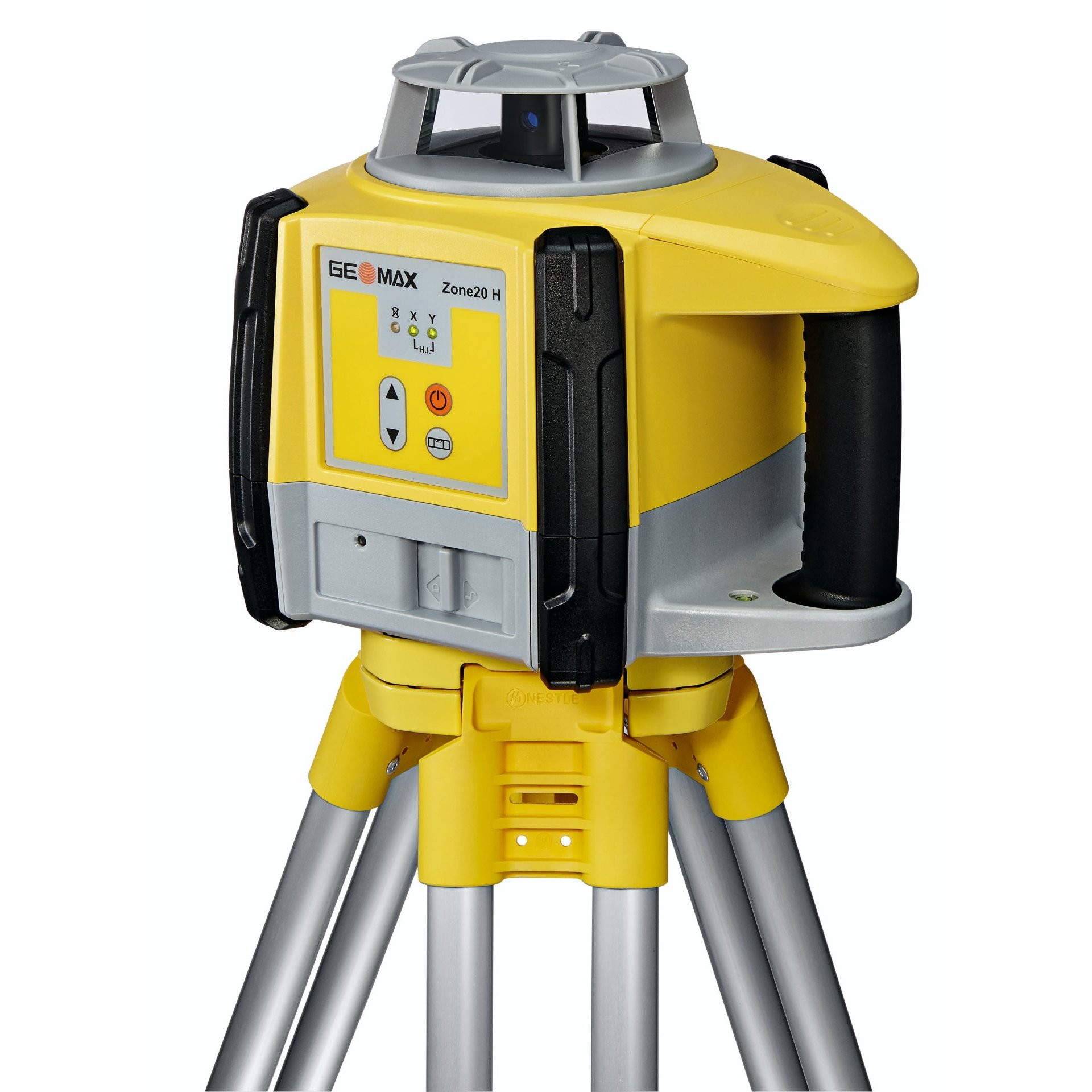

GEOMAX Zone20 H digital rotating laser

Fully automatic horizontal laser with best price-performance ratio

Top Features

  • Automatic self-levelling
  • Easy to use and very reliable
  • With manual tilt capability
  • Laser class 1

Variants

Variant

Technical Data

Working area with receiver Ø 900 m
Operating time > 40 Hours
Weight 3060 g
Laser diode visible 635 nm (red), class 1
Manual tilt range 8 %
Dimensions 240 x 215 x 215 mm
Self-levelling range ± 6°
Power supply 2 alkaline mono cells (D), lithium-ion (Li-ion pack rechargeable)
Temperature range -10 °C to +50 °C
Tolerance ± 0.75 mm per 10 m
Product Number (PID) 27105000

Highlights at a Glance

  • The GeoMax Zone Series rotating lasers are robust (IP67), versatile (900 m working range) and offer exceptional value for money.

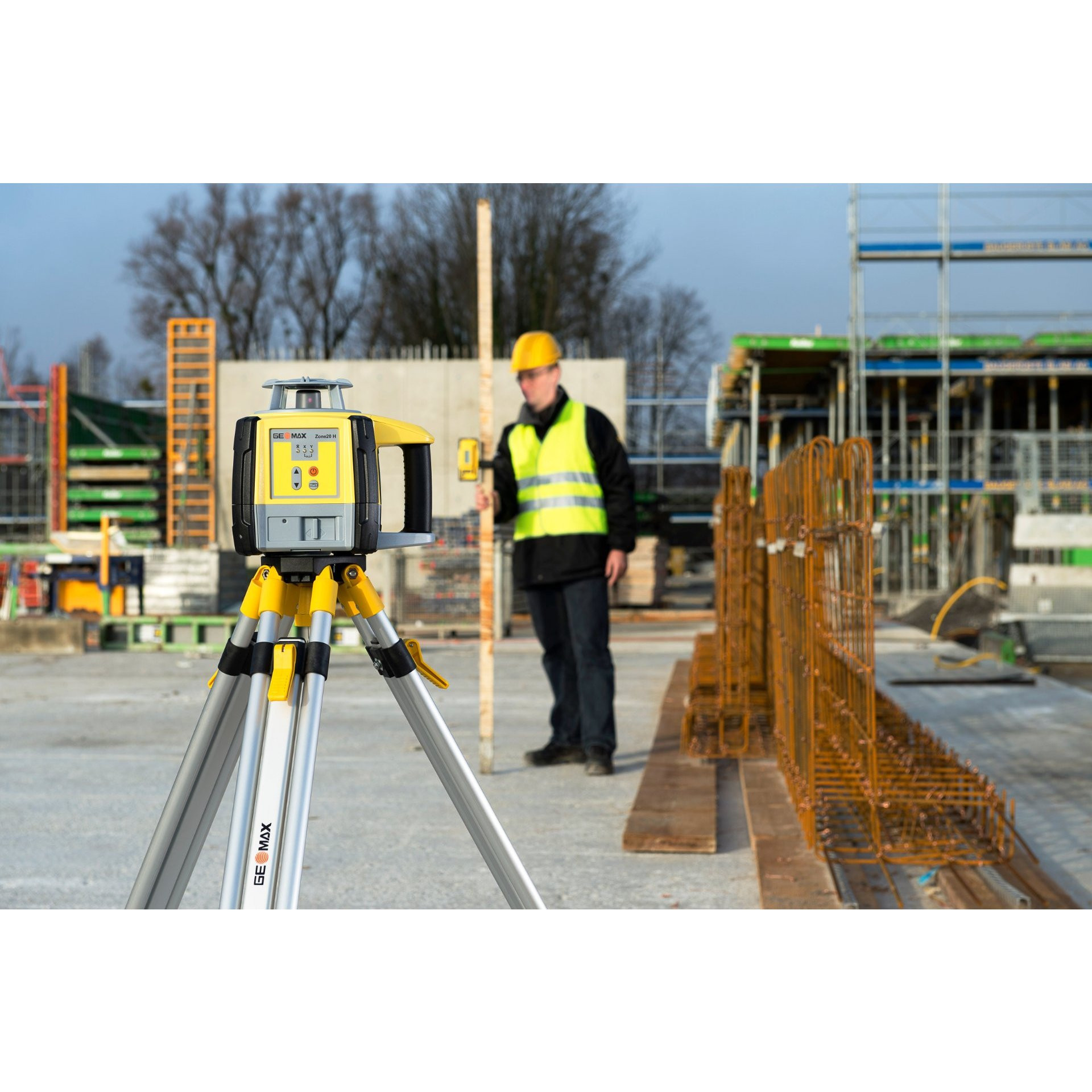

  • The Zone20 H horizotal laser is ideal for concrete and formwork work with self-levelling and manual tilting in two axes.
  • Best application area: outdoor.

Description

The GeoMax Zone20 H is the entry-level model in the powerful Zone series of rotating lasers. It is robustly built and reliable in every respect. It offers all the functions required for professional or flexible use, making it interesting for all levelling, aligning or levelling applications. The horizontal laser allows manual adjustment of the tilt angle in two axes and its simple and well thought-out operating concept means it is quickly ready for use. The innovative Li-Ion battery concept enables up to 300 percent longer service life than would be possible with conventional NiMh batteries. With the included digital laser receiver ZRD105 you can supplement and increase the performance.

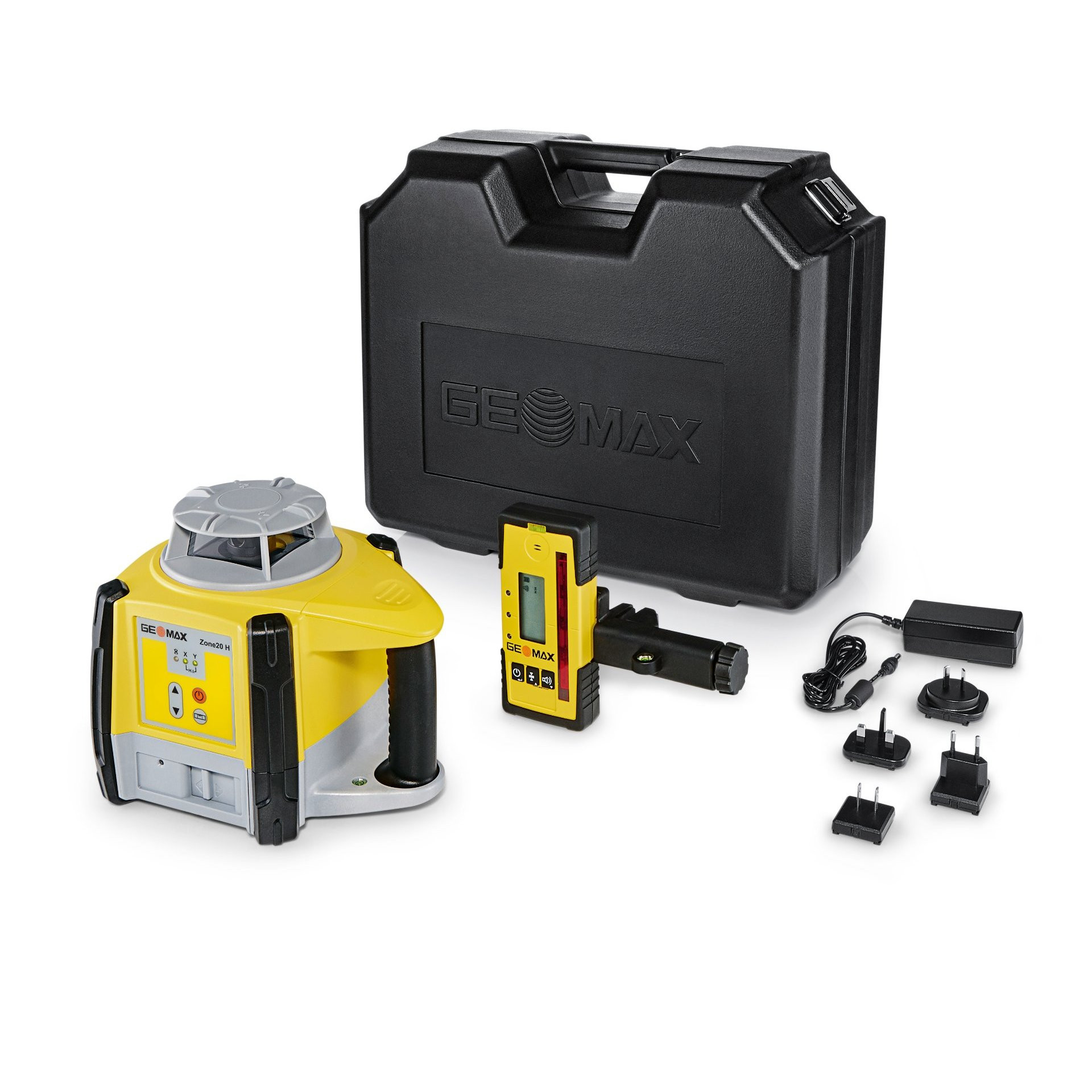

Scope of Delivery

GeoMax Zone20 H
Transport case
Receiver ZRD105
Li-Ion battery with charger
Manual on CD
Quick start guide
Safety instructions
