NESTLE PULSAR H
Excellent price-performance ratio.
Top Features
-

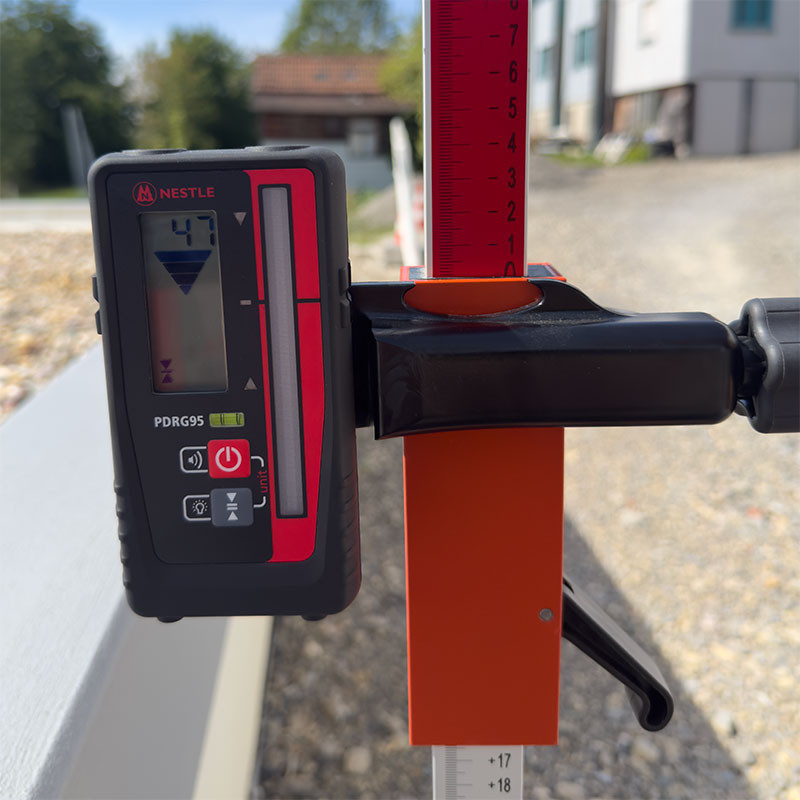

Including laser receiver PDRG95 with mm display.
-
Set up, switch on Let's go! No tedious adjusting
-
Complete package with receiver and target plate
-
High visibility
-
Sturdy aluminium housing
Variants
Execution
Technical Data
| Working area with receiver | Ø 600 m |
|---|---|
| Operating time | 20 Hours |
| Weight | 3000 g |
| Laser diode / colour | 635 nm, class 2 / red |
| Dimensions | 215 x 190 x 210 mm |
| Rotation speed | 600 Rpm |
| Protection class | IP65 |
| Self-levelling range | ± 5° |
| Temperature range | -20 °C to +50 °C |
| Tolerance | ±1 mm per 10 m |
| Product Number (PID) | 16015001 |
Highlights at a Glance
-
If there is a malfunction on the tripod, the laser will stop rotating.
-
Highest quality in processing
-
Total range of 600 m
-
In the switchable tilt mode, it then remains stationary and does not realign itself. This prevents incorrect measurement results.
Description

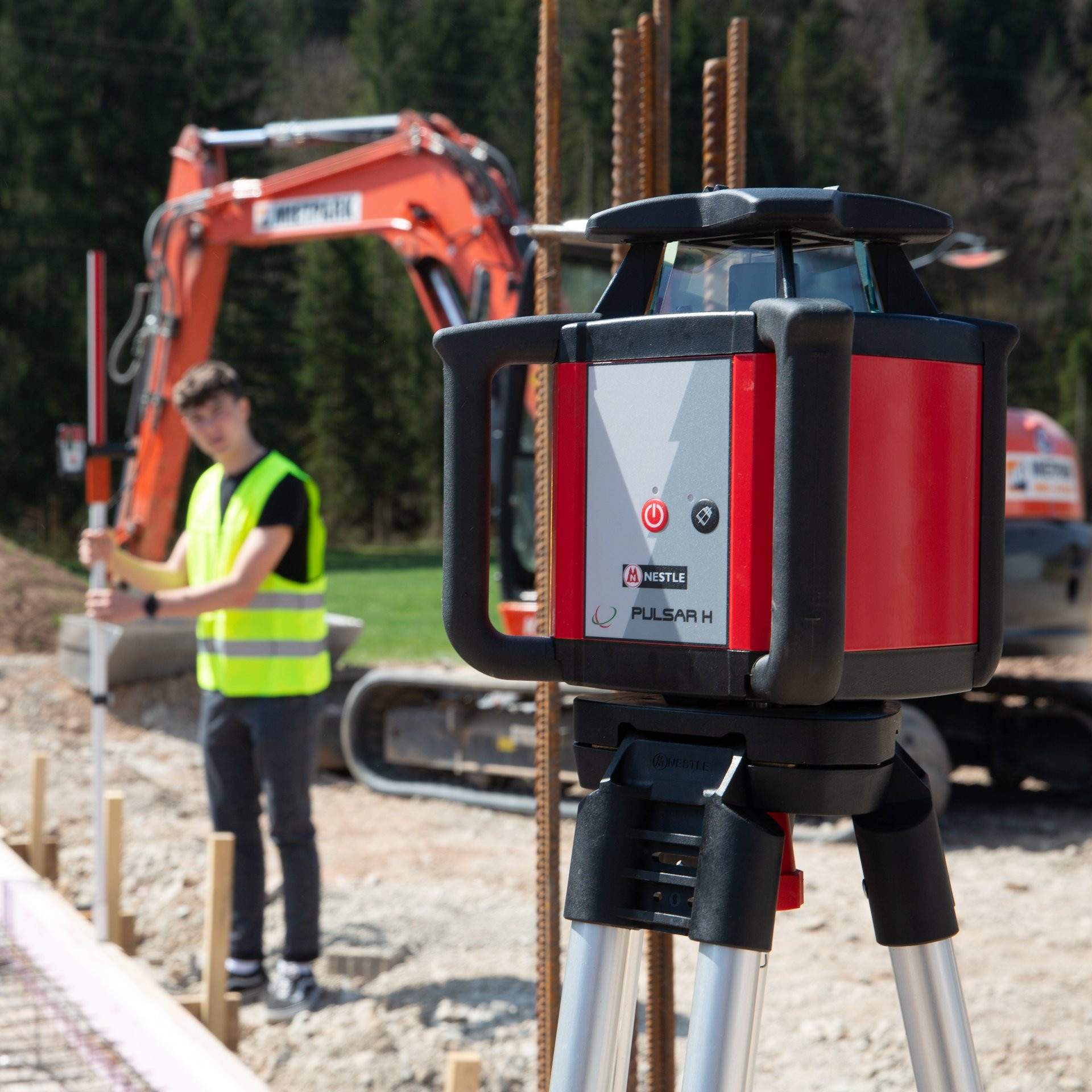

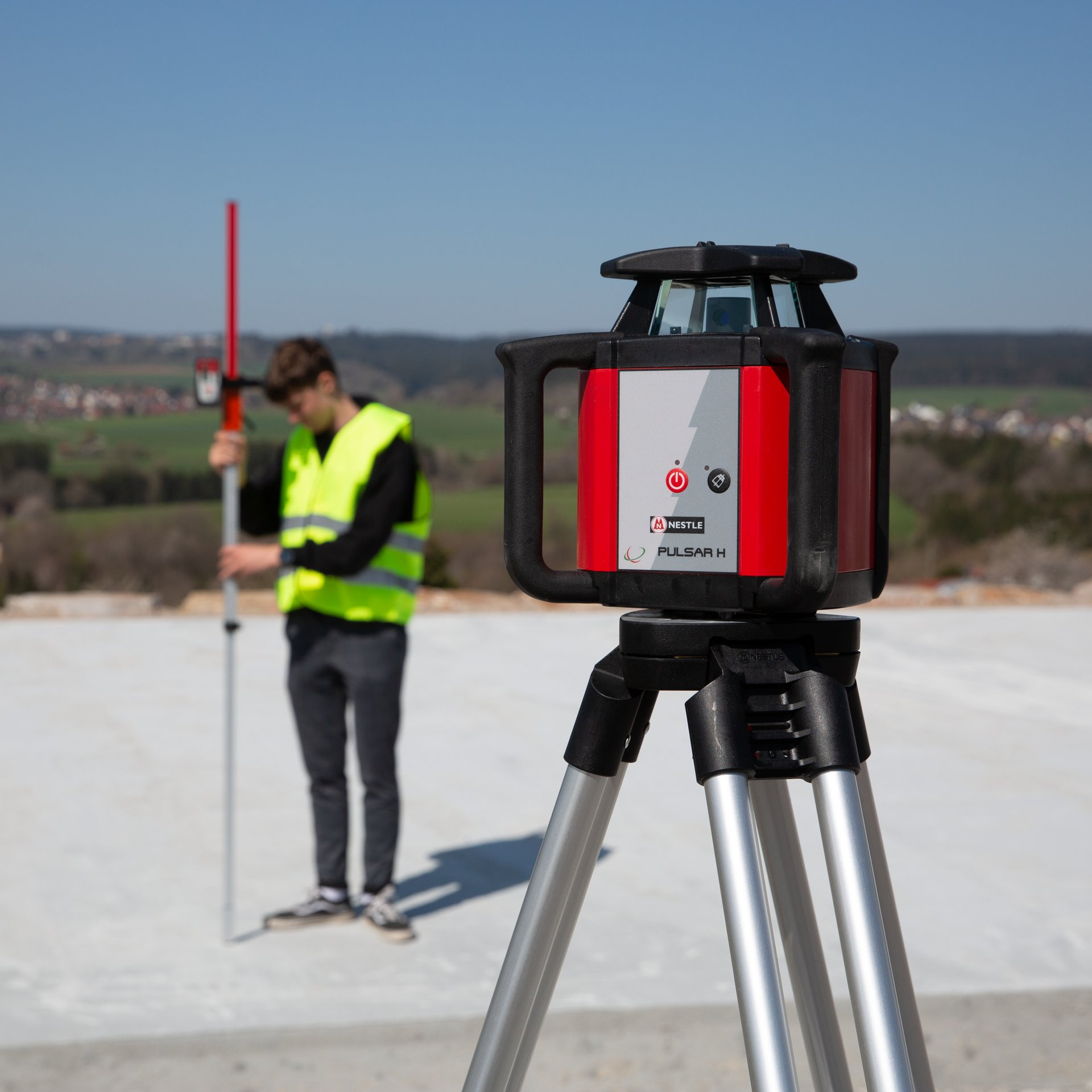

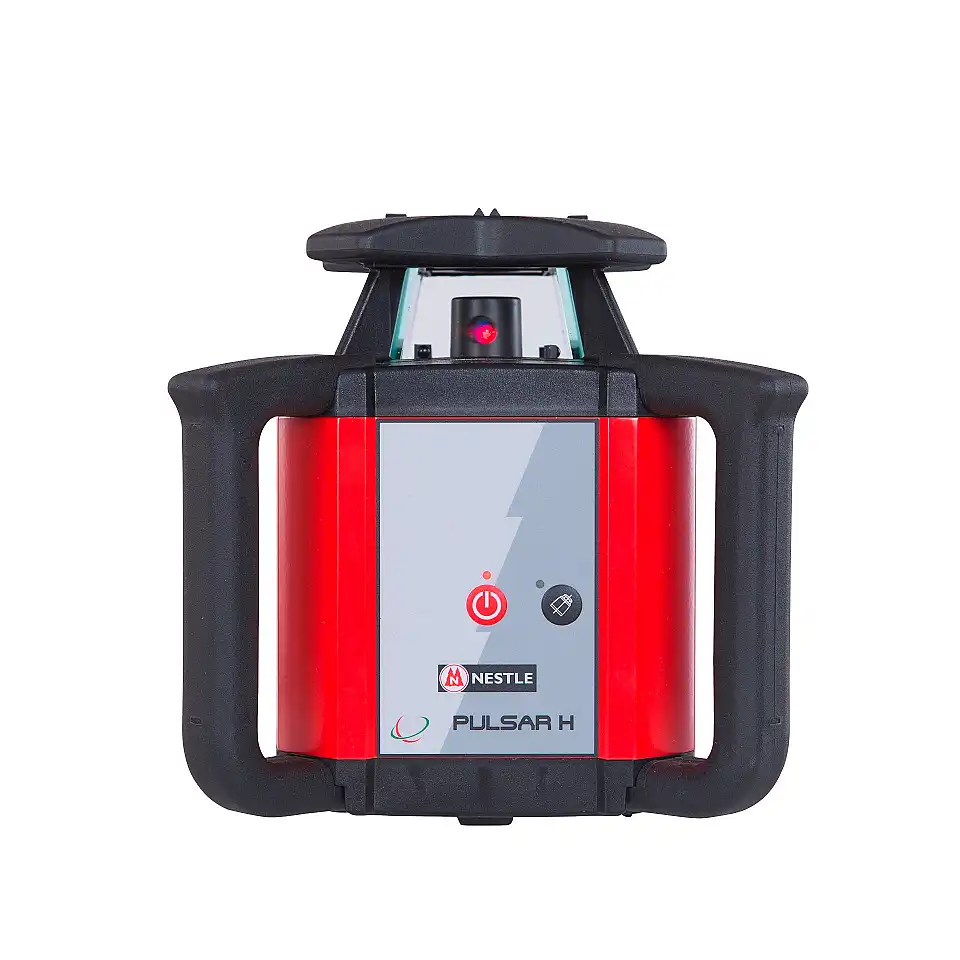

The PULSAR H is a fully automatic, horizontal rotating laser with a simple operating concept. In the event of vibrations or shocks, the laser automatically interrupts rotation and thus prevents measurement errors. The robust aluminium housing and high quality workmanship make it ideal for tough use. Including laser receiver PDRG60 with mm display, unique in this class!
Further compact information:

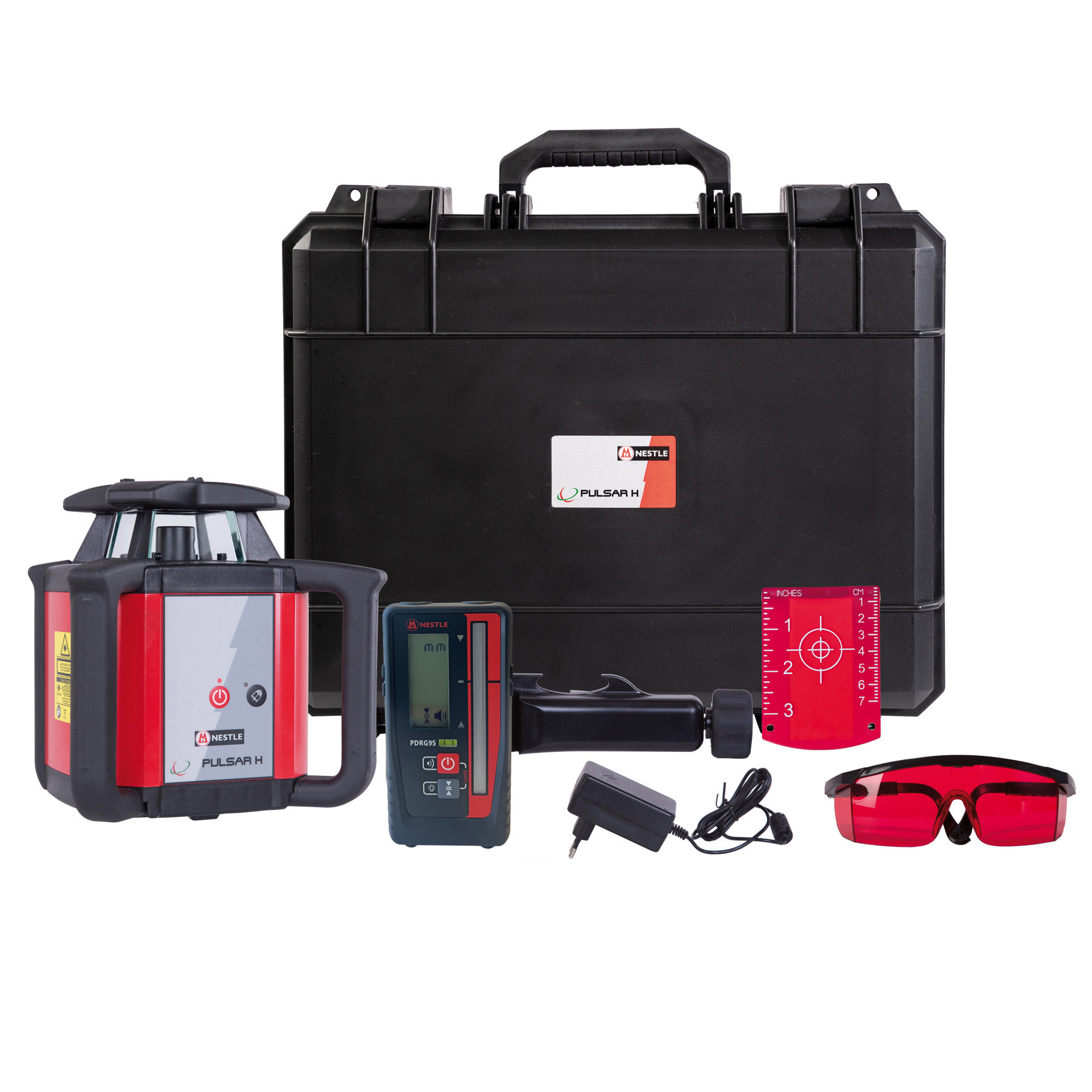

Scope of Delivery
Pulsar H
Carrying case
Laser receiver PDRG95 with clamp
Charger
Target board
Laser goggles
