LEICA LINO P5

Projects accurately, quickly and easily ideal for interior work

Top Features

  • Single-button operation
  • Self-levelling range ± 4
  • Robust and ergonomic design

Technical Data

Battery 3 x AA
Accuracy ± 0.2 mm / m
Weight 495 g
Laser colour red
Laser class 2
Laser points up, down, right, left, forward
Dimensions 110 x 60 x 100 mm
Reach up to 30 m
Protection class IP54
Self-levelling range ± 4°
Tripod connection 1/4'' (5/8'')
Product Number (PID) 16726000

Highlights at a Glance

  • For vertical plumbing, right-angled setting out, alignments and for simple height transfers in interior construction.

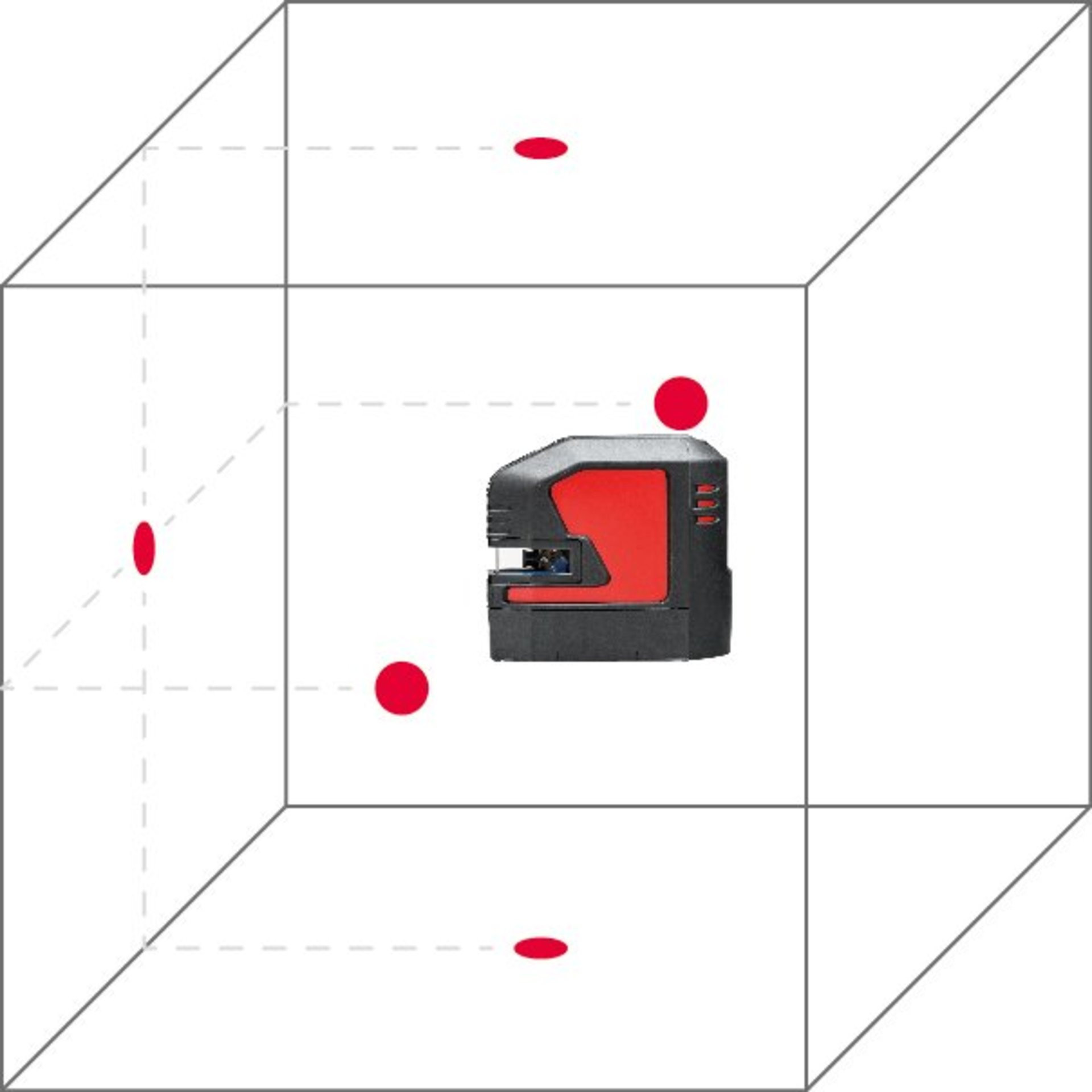

  • Five laser points which are arranged at right angles to each other: upwards, downwards, forwards, to the right and to the left.
  • Easy operation with only one button.
  • Minor inaccuracies of up to ± 4° when setting up are compensated for automatically.

Description

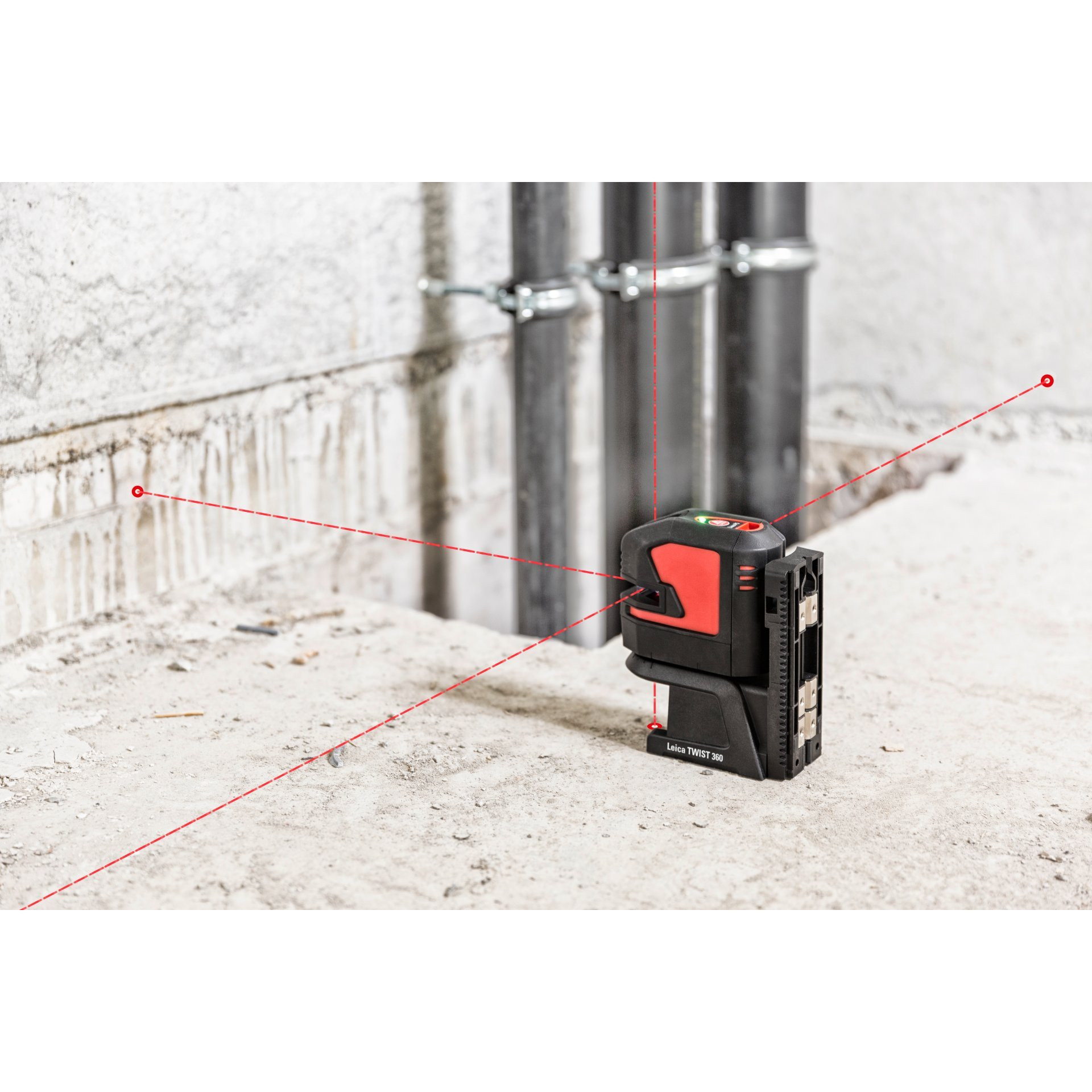

The P5 is a self-levelling, multifunctional point laser for a wide range of tasks such as levelling, plumbing, transferring and marking 90° angles. Five points, which are arranged at right angles to each other, facilitate your work on site. The Lino P5 automatically corrects the alignment of the points when it is within ± 4° of inclination. This ensures that angles and reference points are transferred correctly. The simple one-button operation of the Leica LINO P5 makes it quick and effective to use. The integrated magnet allows you to attach the P5 to the Twist 360 magnetic adapter supplied and attach it to magnetic components. The intelligent triple power supply concept makes the Leica LINO P5 universally applicable.

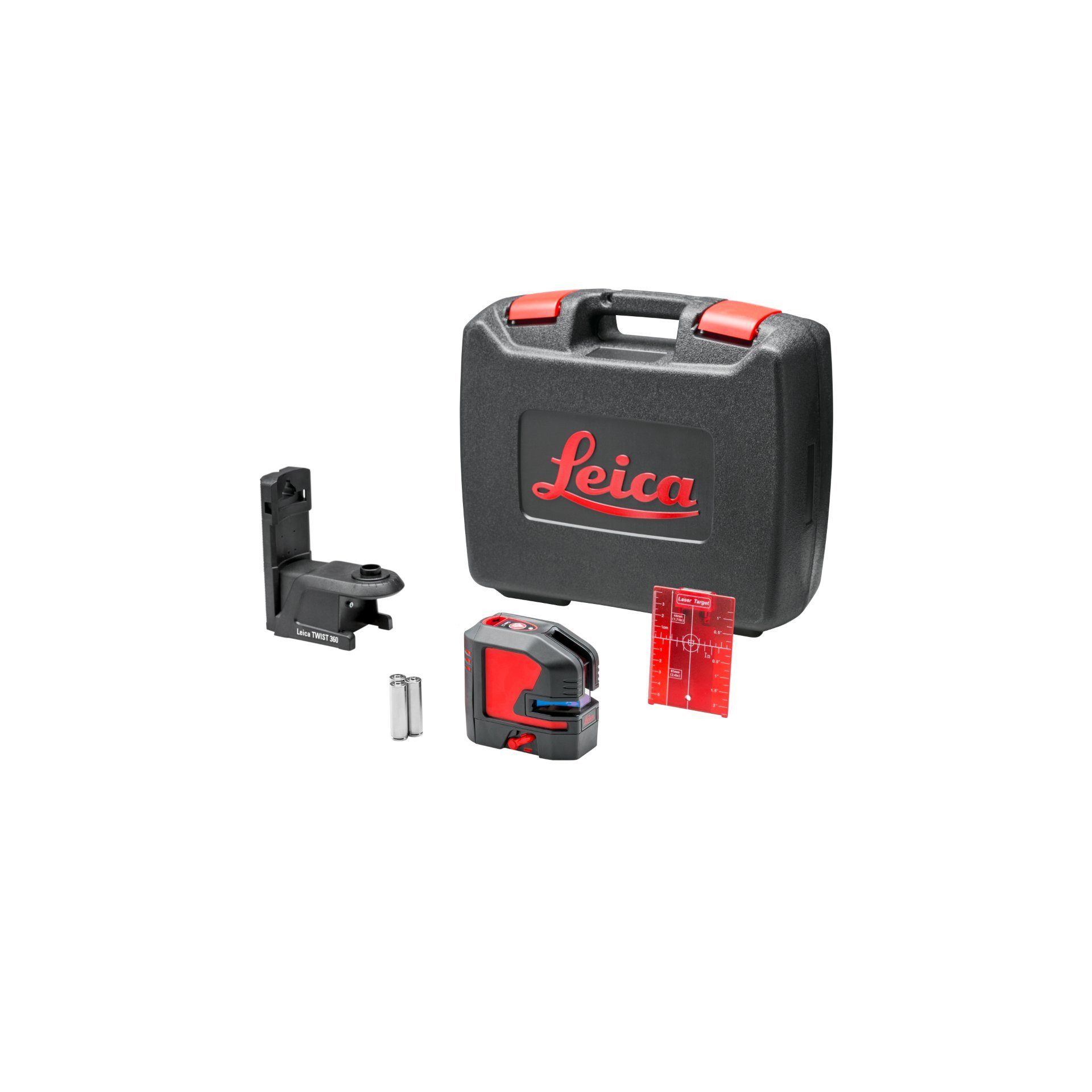

Scope of Delivery

Lino P5-1
Adapter Twist 360
Batteries
Target board
Suitcase
