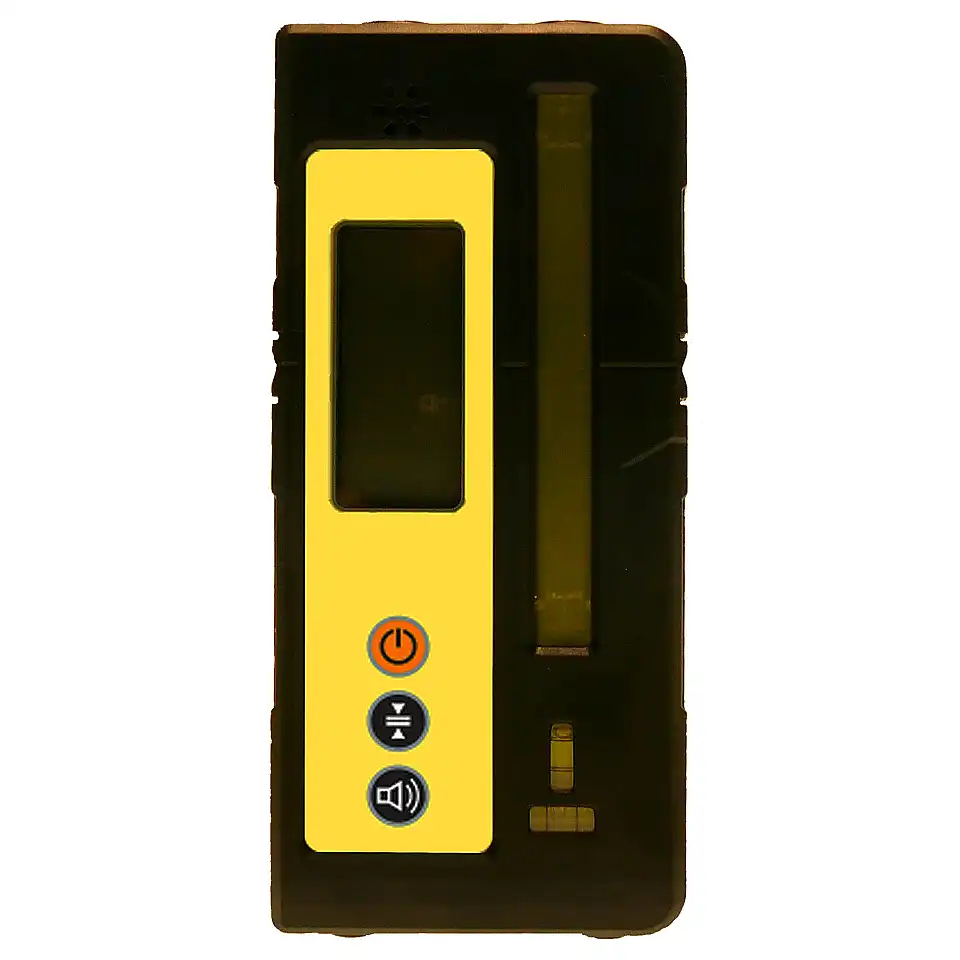

GeoMax Receiver ZRB90 Basic

Reliable entry-level receiver with acoustic and graphic display

Top Features

  • Operation temperature -10°C to +50°C.
  • Suitable for all Zone rotating lasers.
  • Audible and graphic display.

Variants

Variant

Function

Technical Data

Operation temperature - 10°C to + 50°C
Reception acoustically and graphically
Detection zone 80 mm
Weight 255 g
Dimensions 155 x 70 x 25 mm
Numeric no
Precision levels ± 1, ± 2 mm
Reach Ø 600 m
Protection class IP66
Product Number (PID) 27405000

Highlights at a Glance

  • Double-sided display with graphics and sound signal.
  • Two precision levels can be selected.

Description

The GeoMax Zone series includes a total of four laser receivers that complement and enhance the performance of the Zone rotating lasers. The ZRB90 is the entry-level receiver in the Zone series and offers a robust housing as well as a double-sided display with graphics and sound signal. The 1 mm / 2 mm accuracy makes it easy to locate the laser beam and works smoothly up to 300 m. The power supply works via standard AA alkaline batteries.

Scope of Delivery

GEOMAX Receiver ZRB90 basic
Holder
Batteries
