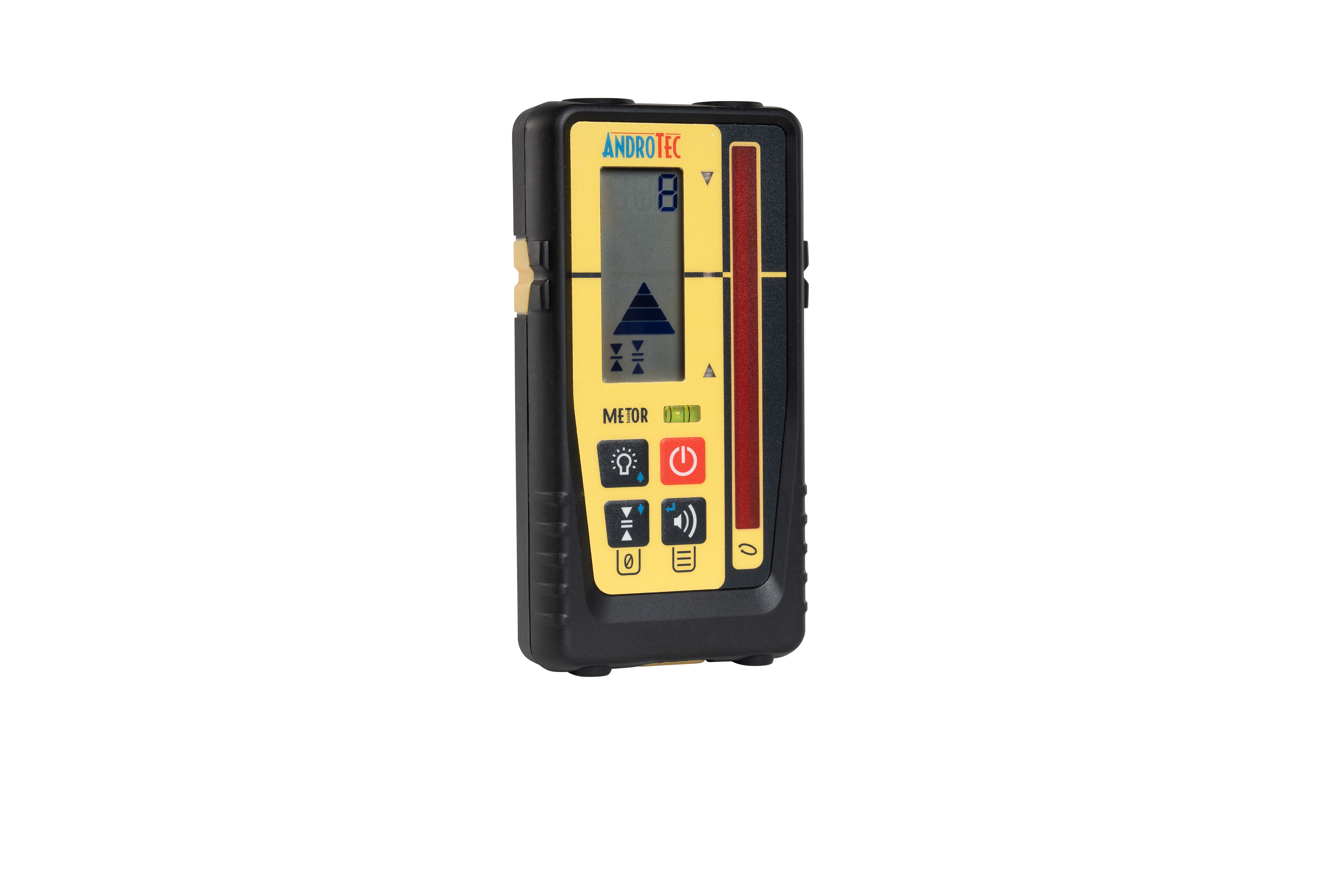

Androtec Receiver MTR-95R Digital
Laser receiver with mm display for rotating lasers with red/infrared laser light
Top Features
-
Receiver with mm display
-
Interference and flash filters
-
For all common rotating lasers with red or infrared laser
-
For all common rotating lasers with 300UpM to 1200UpM
Variants
Variant
Function
Technical Data
| Operating temperature | -20°C to +50°C |
|---|---|
| Reception display | Display, sound signal, mm display |
| Detection range | 90 mm / 80 mm numerical |
| Weight (without retaining clip) | 0.2 kg with battery |
| Dimensions | 135 x 69 x 25 mm |
| Precision levels | 5 levels: 0.5 / 1 / 2 / 5 / 10 mm |
| Reach | 400 m radius m |
| Protection class | IP67 |
| Power supply | 1 x AA battery |
| Product Number (PID) | 27406000 |
Highlights at a Glance
-
Compact receiver with mm display for all common rotating lasers
-
The MTR-95 shows the deviation of the laser beam from the marking plane with an arrow symbol and digital numerical display accurate to the millimetre
Description
The ANDROTEC MTR-95R Digital Handheld Receiver is suitable for all common rotating lasers with red or infrared laser light. The receiver displays the deviation of the laser beam from the marking plane with millimetre accuracy. This enables quick measurement and correction of height differences. High-contrast displays on the front and back ensure that the measured values can be read quickly. With only one type AA battery, an operating time of over 45 hours is achieved.
Scope of Delivery
Receiver
Retaining clip
1 x AA battery
