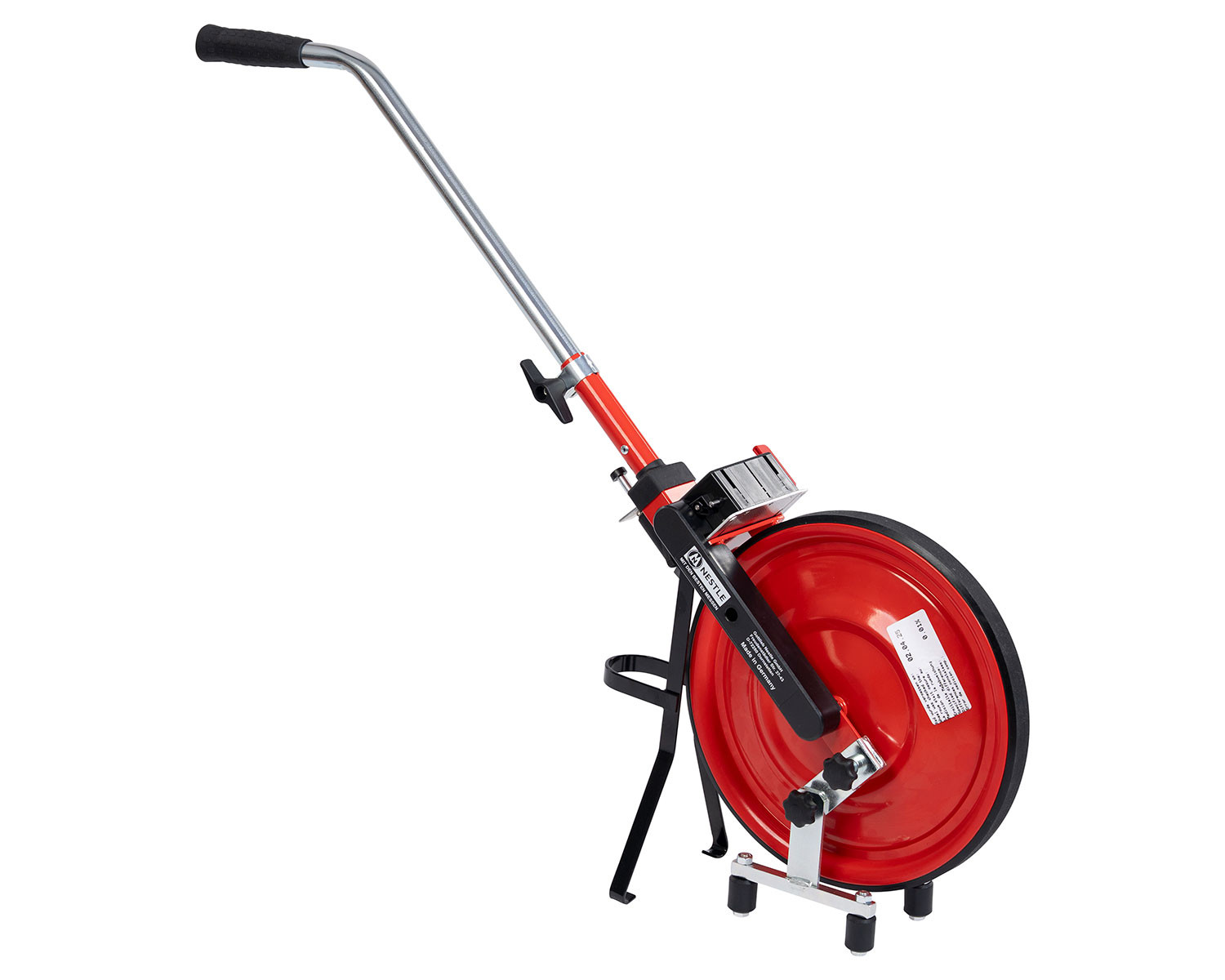

NESTLE Measuring Wheel Model MR-52 Rail Set

Precision over long distances for rails

Top Features

  • Suitable for different track radii during rail measurement
  • Due to the high quality production, our measuring wheels often provide decades of service in tough daily use.
  • As a quality certificate, you will receive a test sticker on each measuring wheel that indicates the tolerance of the wheel. This is only available with measuring wheels from Gottlieb NESTLE!
  • Easy handling - top precision
  • Toleranz < 0.02%
  • Split parking bracket allows unrestricted rolling on rails at any angle
  • The MR-52 can be easily and safely transported and stored in the included case

Variants

Variant

Technical Data

Tolerance < 0.02 %
Colour red RAL 3020
Weight 4.4 kg
Wheel Solid steel
Wheel diameter 318.5 mm
Measuring range 9999.99 m / cm reading
Resolution 0.01 m
Wheel circumference 1 m
Additionally for official use (declaration of conformity) Item no. 70100120
Product Number (PID) 12045001

Highlights at a Glance

  • For official use, a version with official declaration of conformity is optionally available (formerly known as calibration).
  • Quality counter mounted above the measuring wheel, easy to read from a standing position.
  • Counter also counts backwards, subtractions are possible.
  • Zeroing lever directly next to the counter enables a quick reset.
  • Stable and generous storage bar, easy to fold out to the rear. Suitable for rail measurement.
  • Integrated brake prevents unintentional falsification of the measurement result.

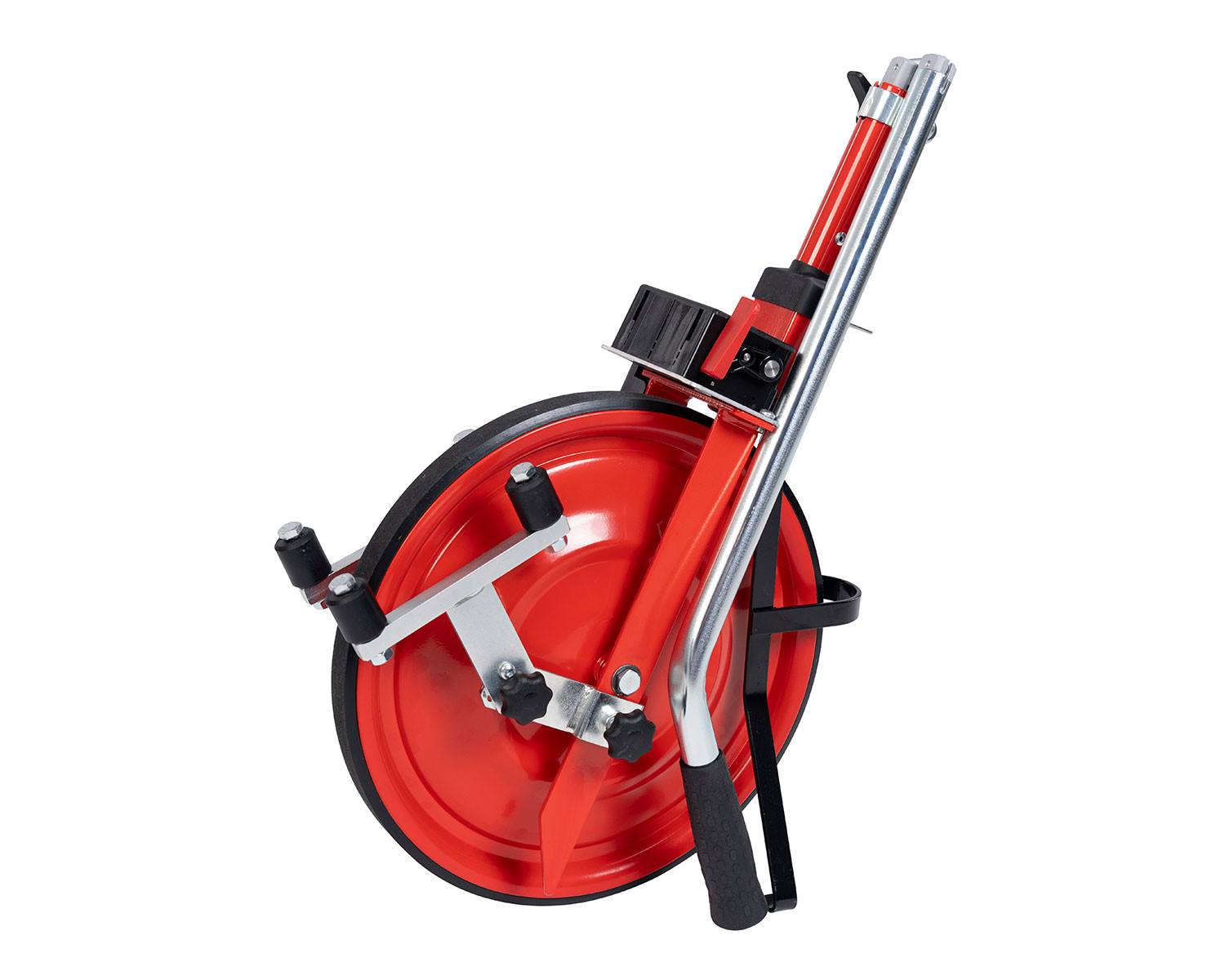

  • Foldable guide rod.
  • Sturdy solid disc wheel keeps the measuring wheel securely on track and ensures maximum running smoothness.
  • The rubber is ground to exactly 318.5 mm diameter.
  • The wheel´s framework is robot-welded and guarantees for lasting quality and durability.

Description

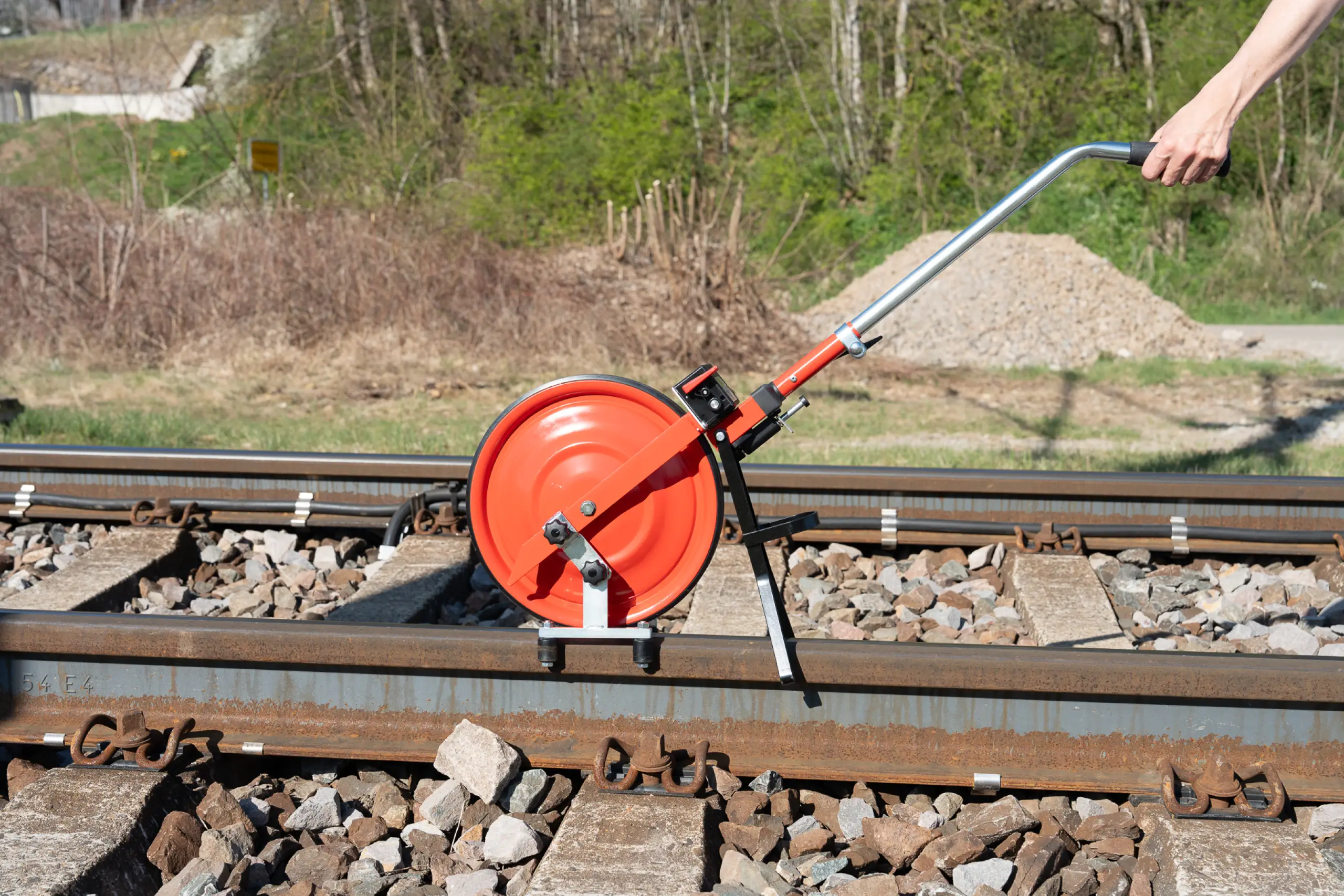

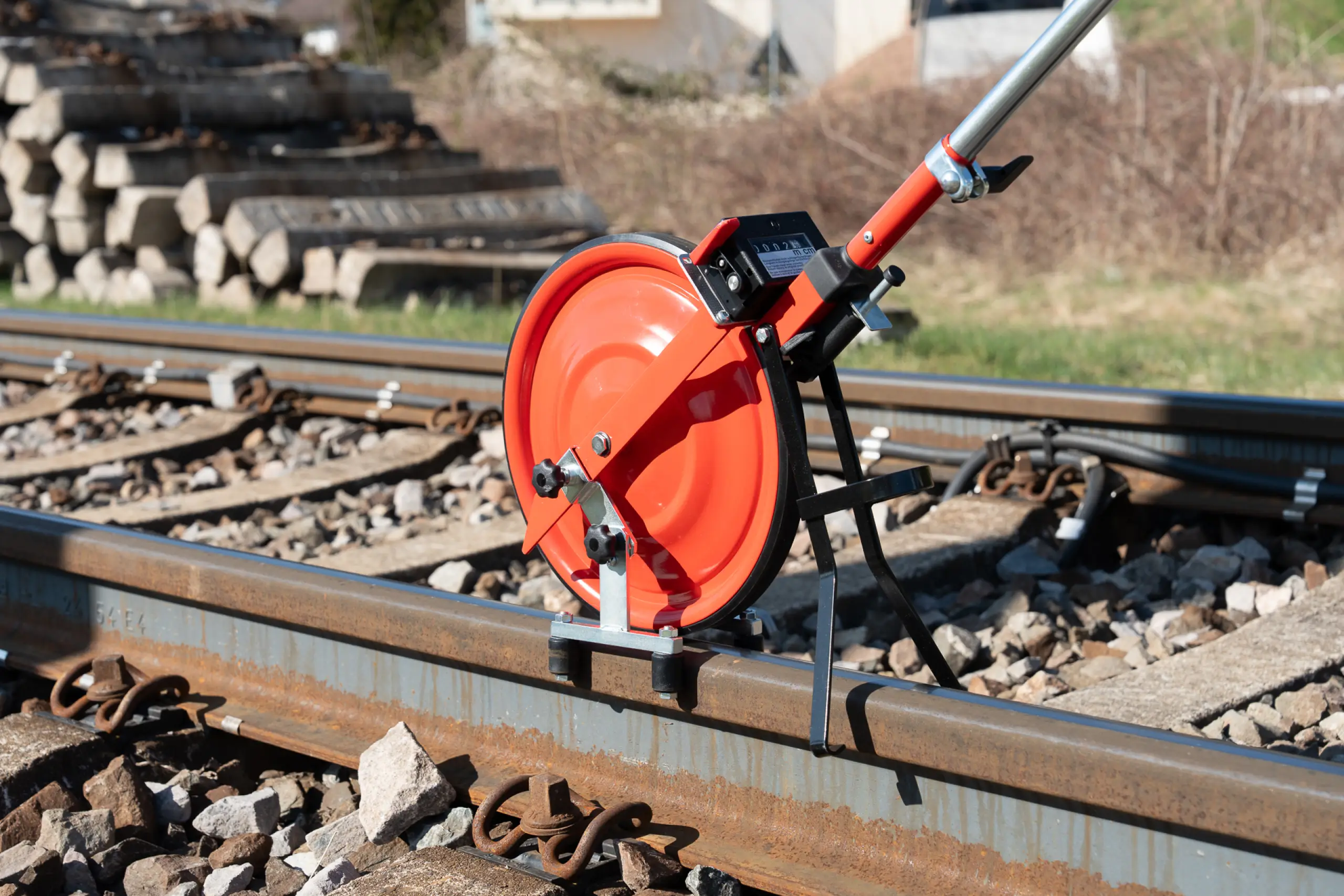

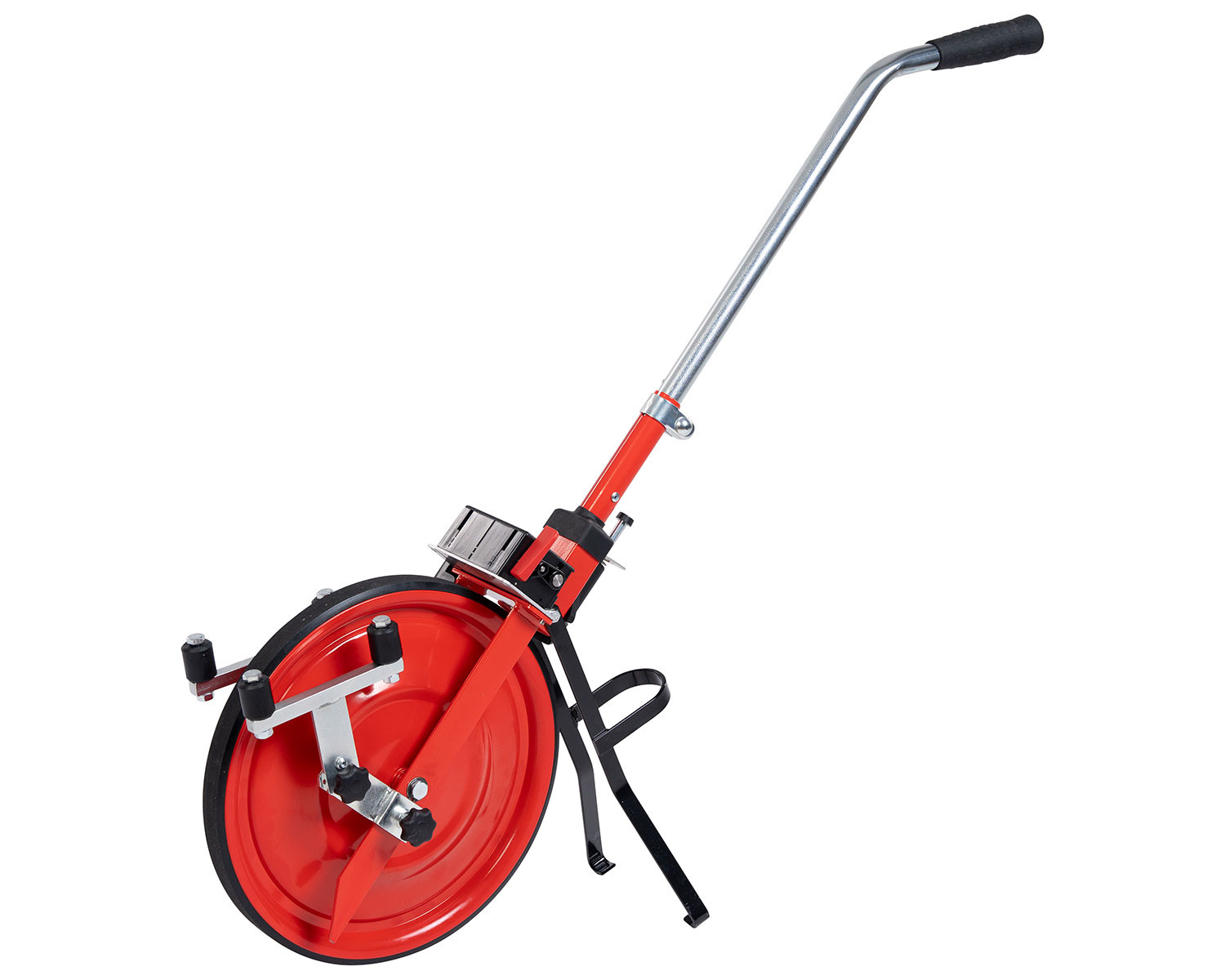

The NESTLE measuring wheel with rail guide is a precise measuring instrument for tracks and rail lines. With a measuring range of up to 9,999.99 m/cm, a wheel diameter of 318.5 mm, a wheel circumference of 1 m and a tolerance of less than 0.02%, it delivers reliable measurement results. The rail guide ensures stable and accurate guidance – even on curved tracks – and can be adjusted to different track radii without tools, as it is foldable and variable. Robust materials and ‘Made in Germany’ quality guarantee durability and precision, ideal for professional track and rail construction.

Scope of Delivery

NESTLE measuring wheel MR-52, solid wheel version with rail guide
Black case
