NESTLE Measuring wheel - Model MR-41 spoked-wheel include bag

Precision over long distances

Top Features

  • Due to the high quality production, our measuring wheels often provide decades of service in tough daily use.
  • As a quality certificate, you will receive a test sticker on each measuring wheel that indicates the tolerance of the wheel. This is only available with measuring wheels from Gottlieb NESTLE!
  • Easy handling - top precision
  • Toleranz < 0.02%

Variants

Variant

Technical Data

Tolerance < 0.02 %
Colour red RAL 3020
Weight 3.4 kg
Wheel aluminium spoked wheel
Wheel diameter 318.5 mm
Measuring range 9999.99 m / cm reading
Resolution 0.01 m
Wheel circumference 1 m
Additionally for official use (declaration of conformity) Item no. 70100120
Product Number (PID) 12040001

Highlights at a Glance

  • For official use, a version with official declaration of conformity is optionally available (formerly known as calibration).
  • Quality counter mounted above the measuring wheel, easy to read from a standing position.
  • Counter also counts backwards, subtractions are possible.
  • Zeroing lever directly next to the counter enables a quick reset.

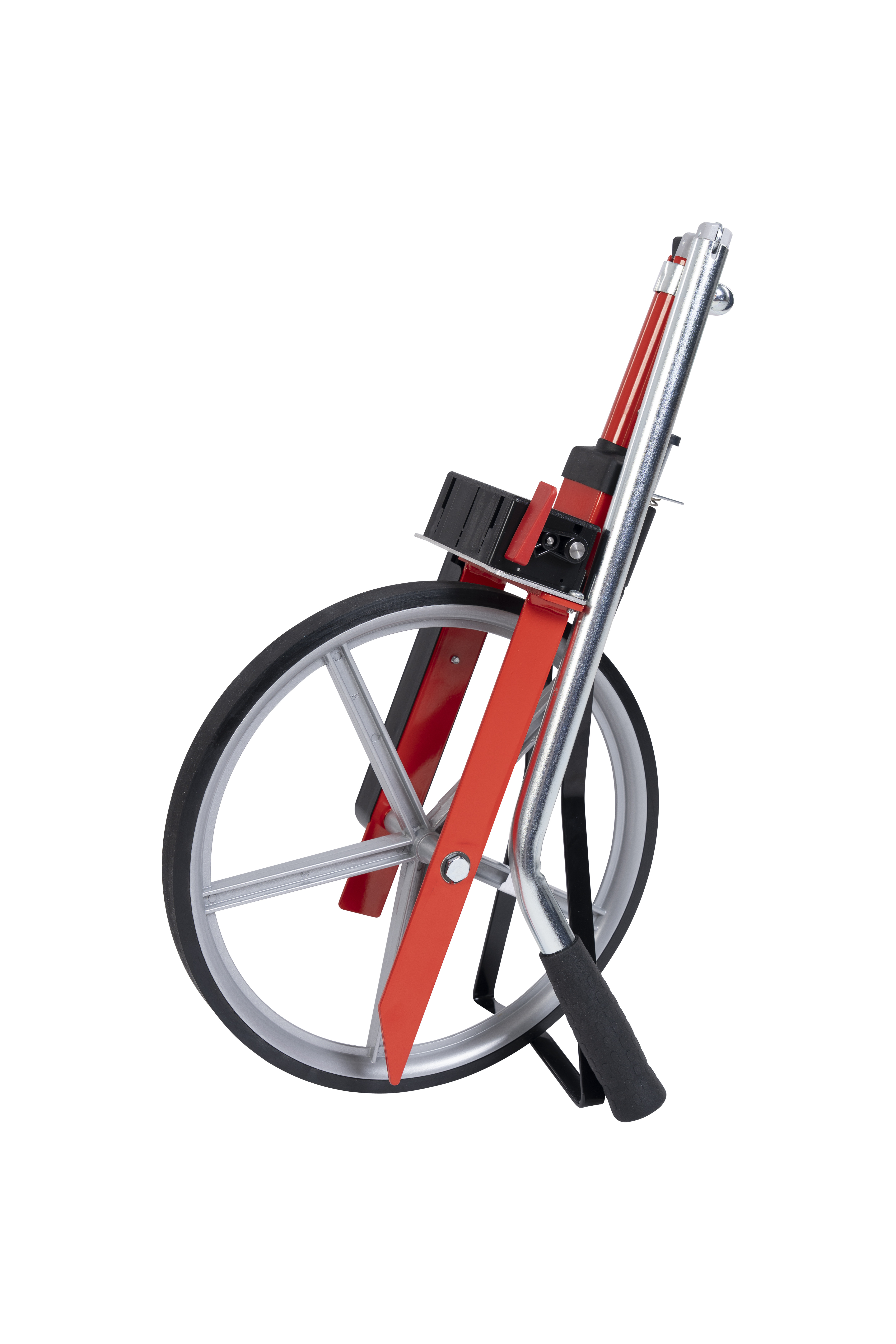

  • Stable and generous storage bar, easy to fold out to the rear.

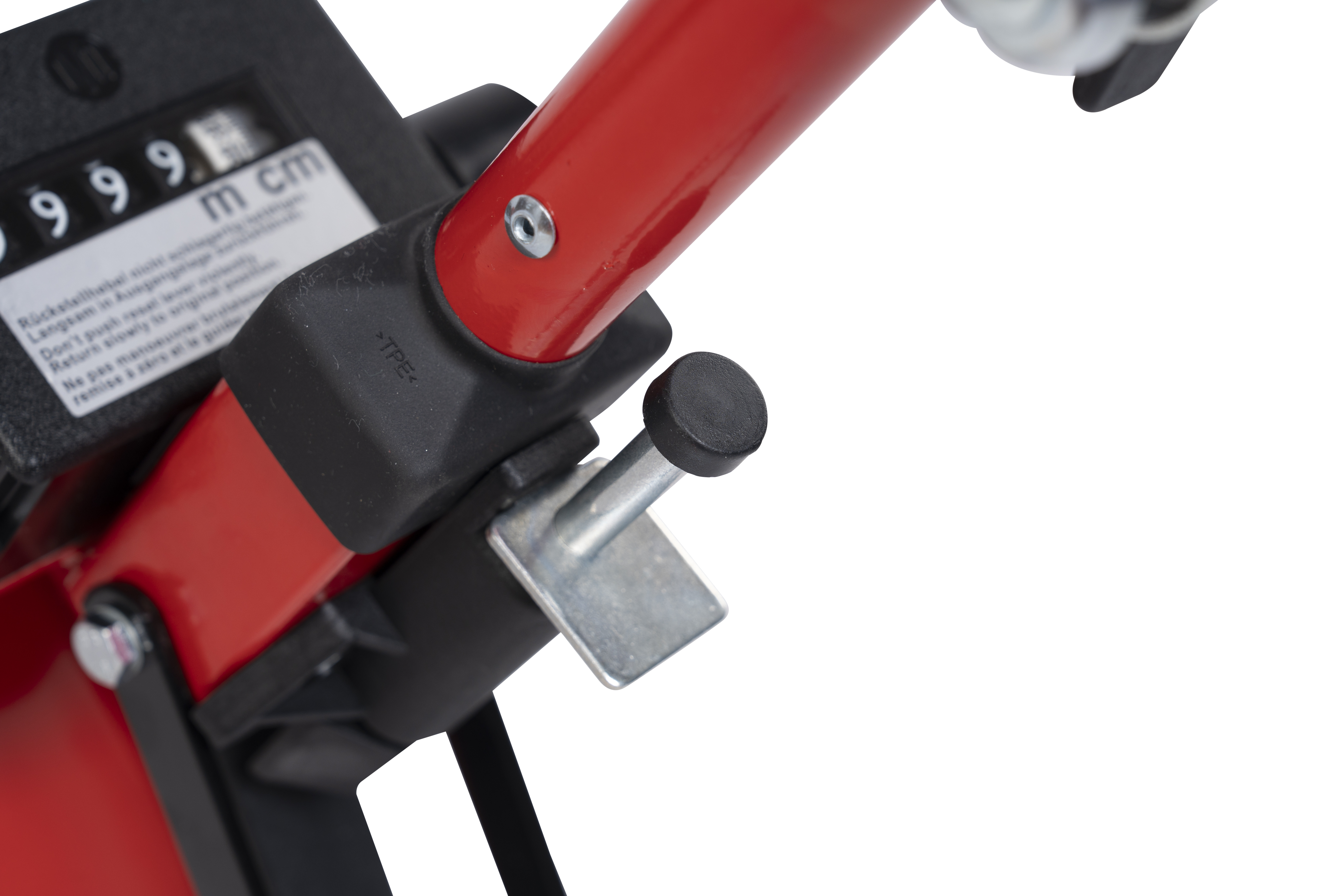

  • Integrated brake prevents unintentional falsification of the measurement result.
  • Foldable guide rod.
  • Spoke wheel.
  • The rubber is ground to exactly 318.5 mm diameter.
  • The wheel´s framework is robot-welded and guarantees for lasting quality and durability.

Description

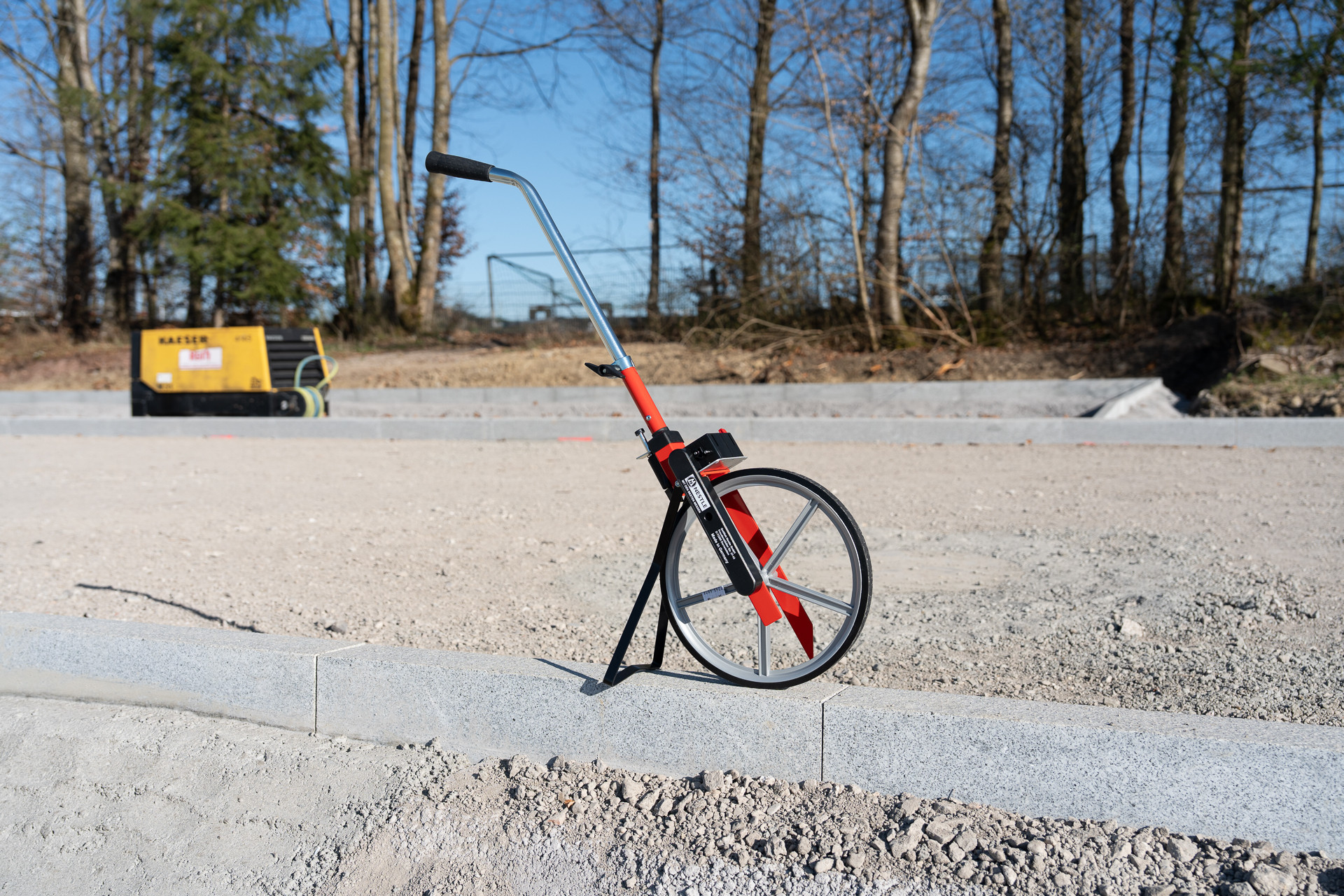

Measuring wheels are used for measuring distances on level ground. The wheel is rolled along the measuring distance while being held forward by a handle. The distance travelled is displayed by means of a counter. Typical applications are: official use, road and track construction, agriculture and forestry, landscaping and everywhere where distance measurements over medium to long distances are required. Choose measuring wheels with spoked wheel with low transport weight. The quality counter records the distances in the direction of travel and subtracts against the direction of travel. This measuring wheel is equipped with a parking bracket, integrated brake as well as a foldable handle. NESTLE measuring wheels are always "Made in Germany".

Scope of Delivery

NESTLE measuring wheel, spoke wheel version
bag 12901001
