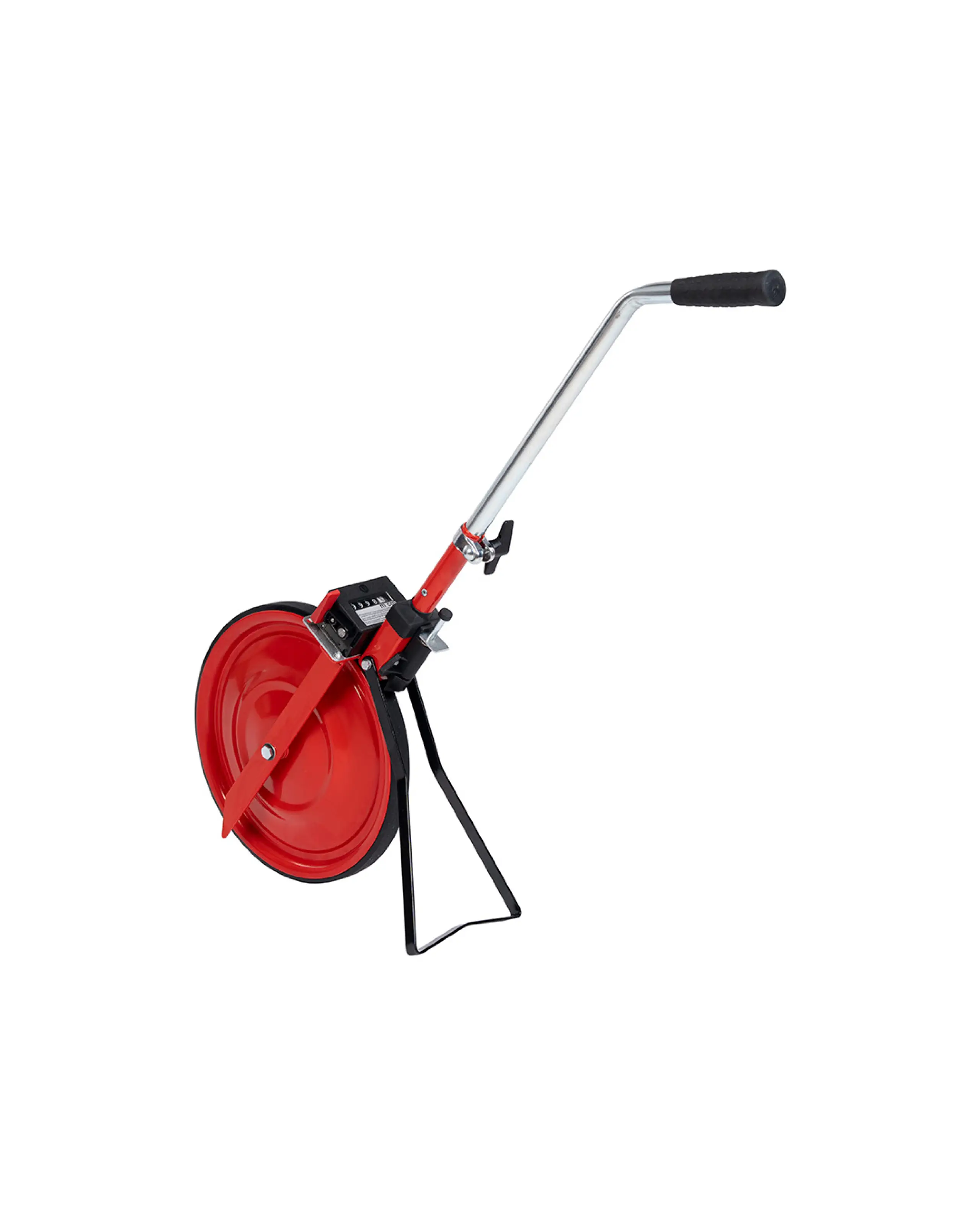

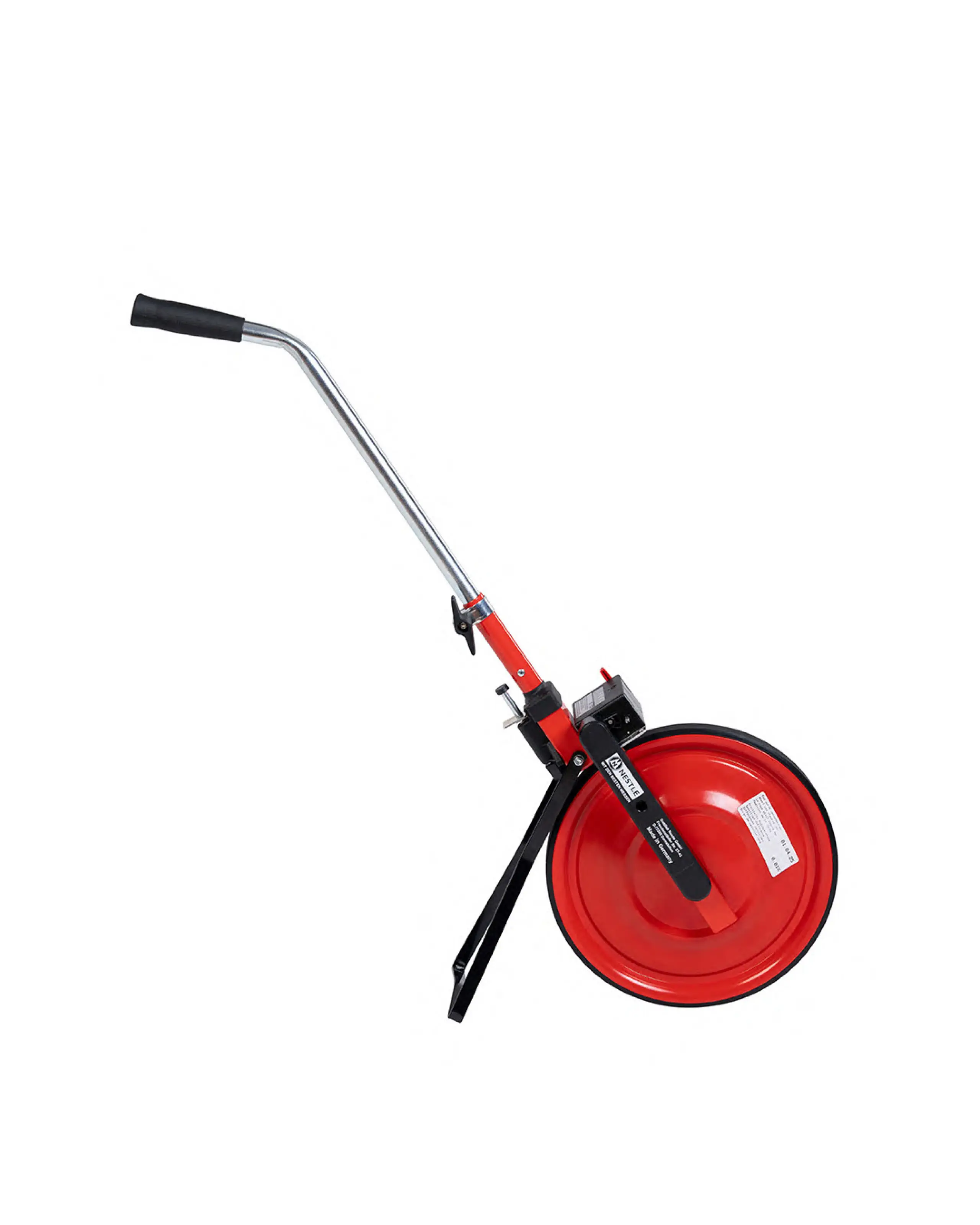

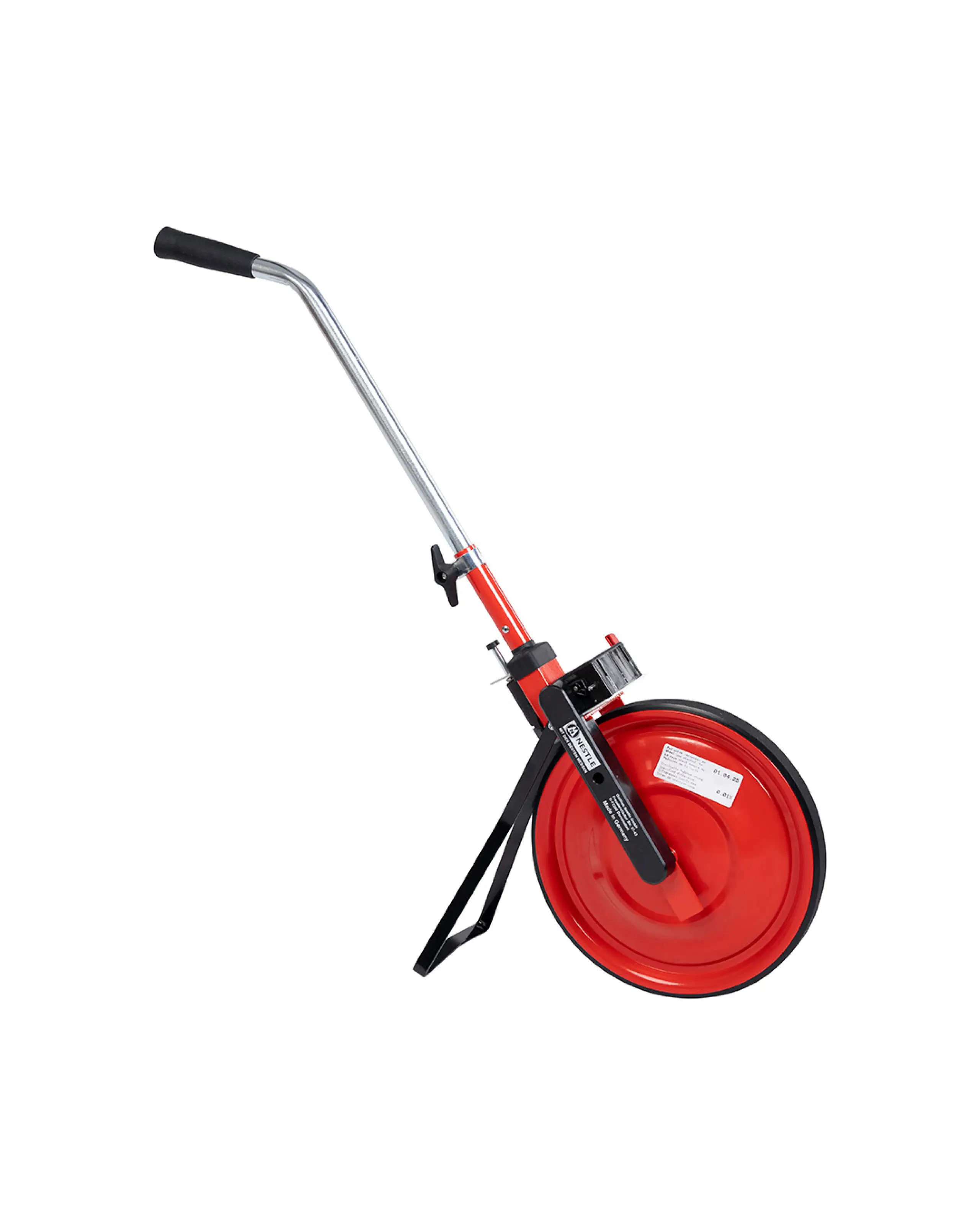

NESTLE Measuring wheel - Model MR-51 steel-full-wheel

Precision over long distances

Top Features

  • Due to the high quality production, our measuring wheels often provide decades of service in tough daily use.

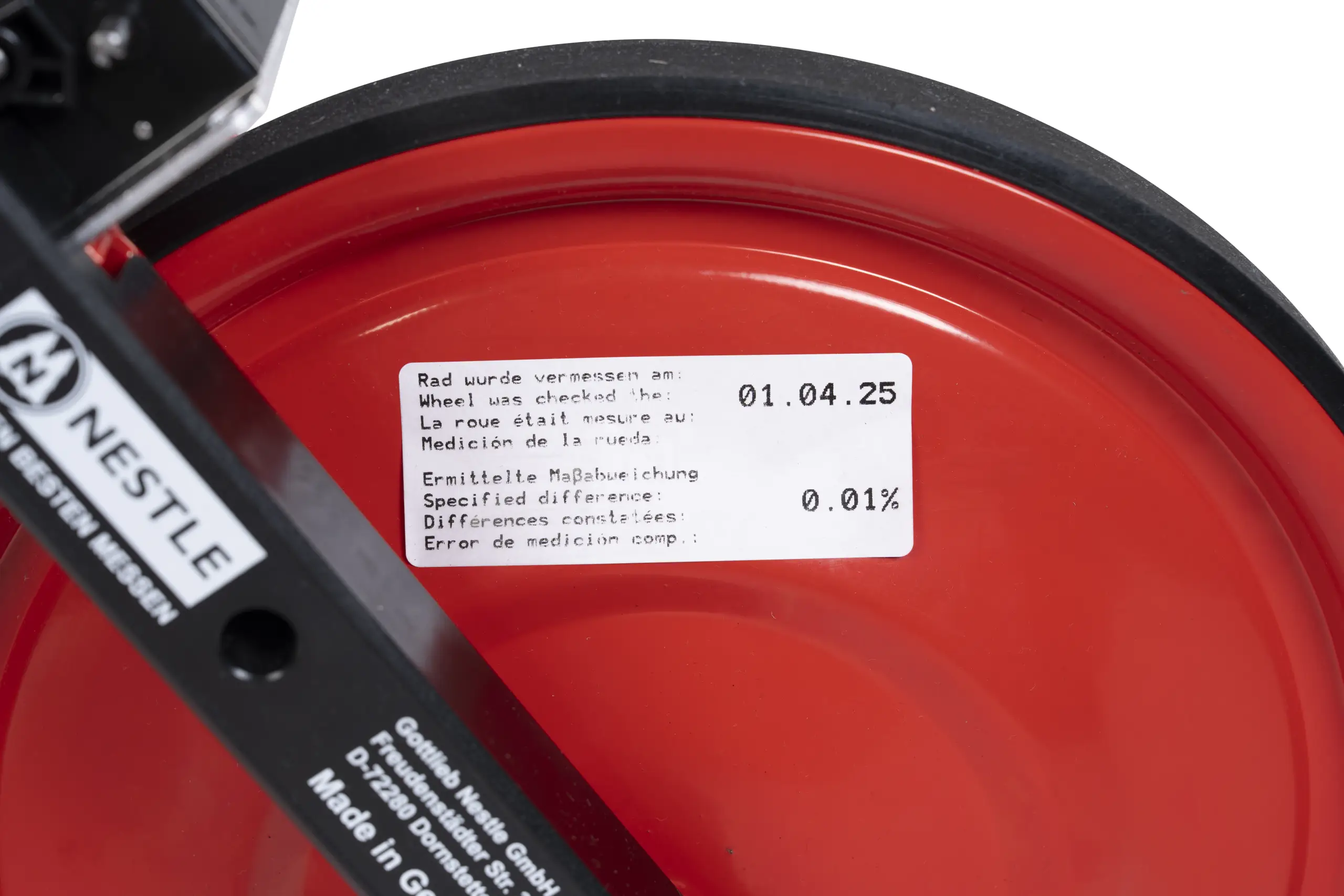

  • As a quality certificate, you will receive a test sticker on each measuring wheel that indicates the tolerance of the wheel. This is only available with measuring wheels from Gottlieb NESTLE!
  • Easy handling - top precision
  • Toleranz < 0.02%

Variants

Equipment

Technical Data

Tolerance < 0.02 %
Colour red RAL 3020
Weight 4,4 kg
Wheel Solid steel
Wheel diameter 318,5 mm
Measuring range 9999,99 m
Wheel circumference 1 m
Additionally for official use (declaration of conformity) Item no. 70100120
Product Number (PID) 12038001

Highlights at a Glance

  • For official use, a version with official declaration of conformity is optionally available (formerly known as calibration).

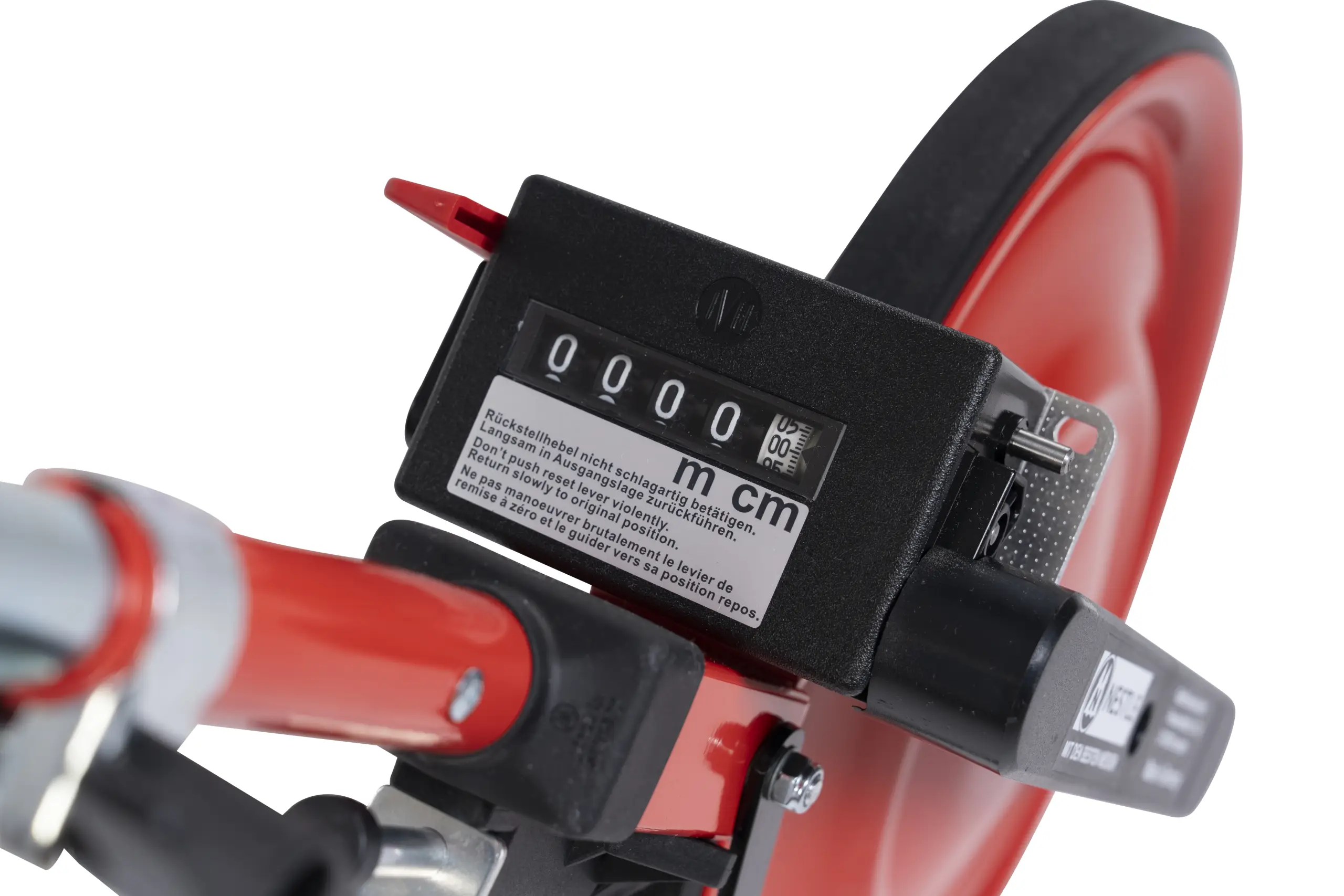

  • Quality counter mounted above the measuring wheel, easy to read from a standing position.
  • Counter also counts backwards, subtractions are possible.
  • Zeroing lever directly next to the counter enables a quick reset.
  • Stable and generous storage bar, easy to fold out to the rear.
  • Integrated brake prevents unintentional falsification of the measurement result.

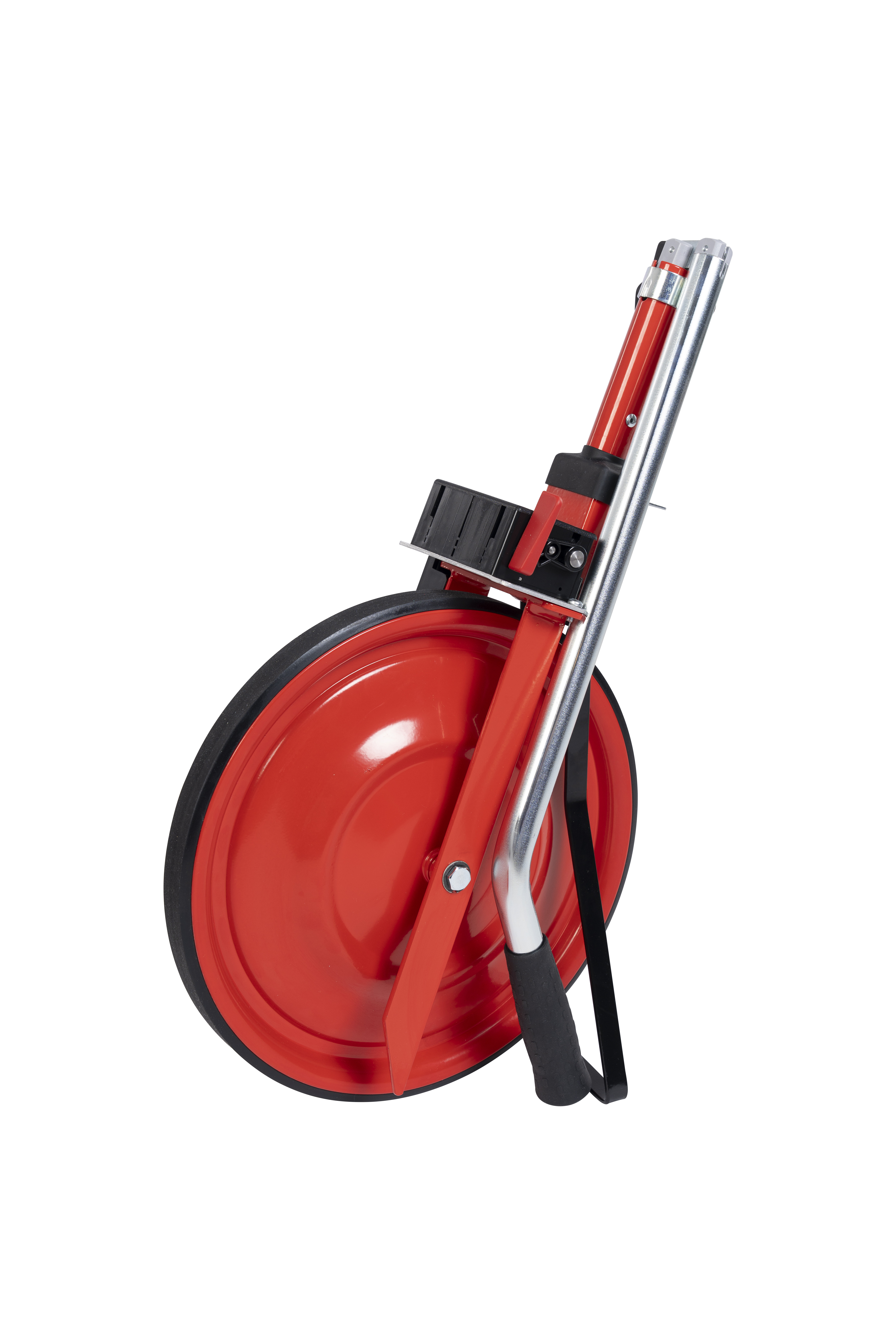

  • Foldable guide rod.
  • Sturdy solid disc wheel keeps the measuring wheel securely on track and ensures maximum running smoothness.
  • The rubber is ground to exactly 318.5 mm diameter.
  • The wheel´s framework is robot-welded and guarantees for lasting quality and durability.

Description

The NESTLE measuring wheel is a precision-modelled solid wheel developed for mechanical metrology. The wheel is solid and has a measuring range of 9999.99 m / cm. The impeller diameter is 318.5 mm and the wheel circumference is 1 m. The tolerance is less than ±0.02 %. The weight of the measuring wheel is 4400 g. The colour of the measuring wheel is traffic red. The measuring wheel is also suitable for official use. The measuring wheel is supplied with a test sticker indicating the tolerance of the wheel. The measuring wheel is precise and easy to handle. NESTLE measuring wheels are always "Made in Germany".

Scope of Delivery

NESTLE measuring wheel, solid wheel version
