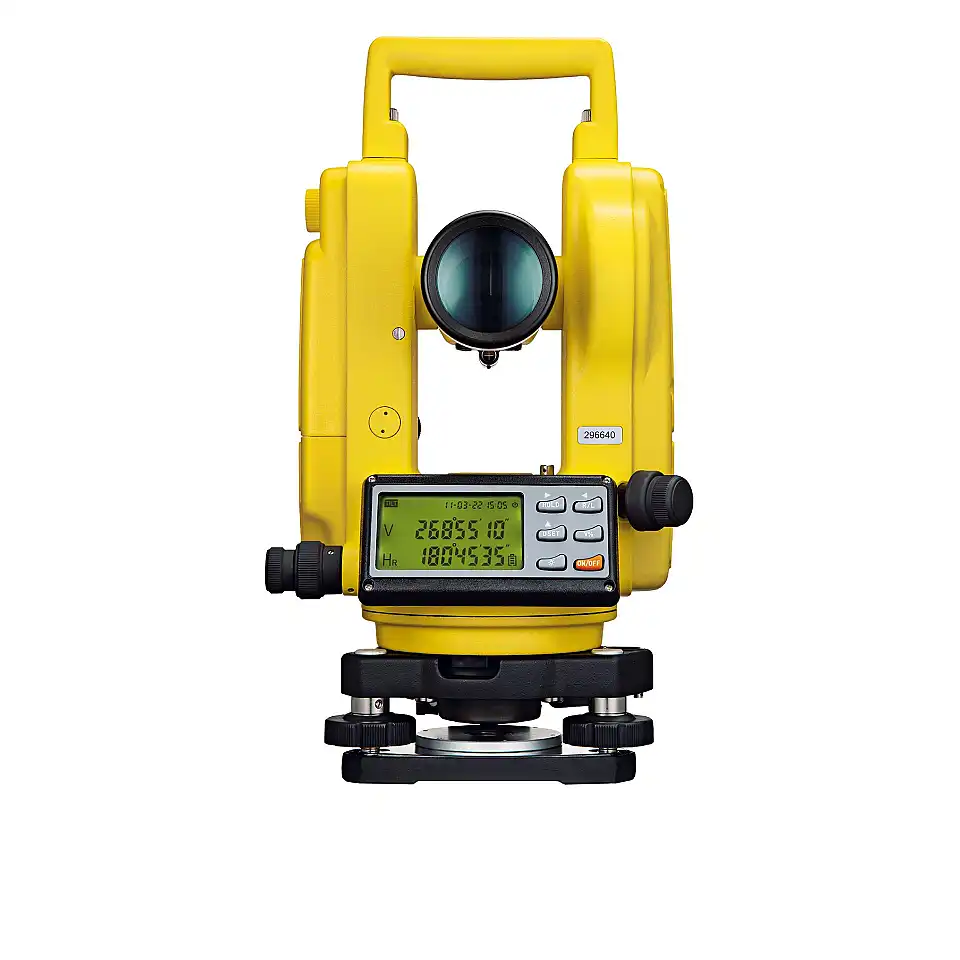

GEOMAX Zipp02 Theodolite, electronic 30x magnification, IP54
Digital building theodolite for the most demanding tasks
Top Features
-
Ideal for staking out and alignment work (vertical and horizontal).
-

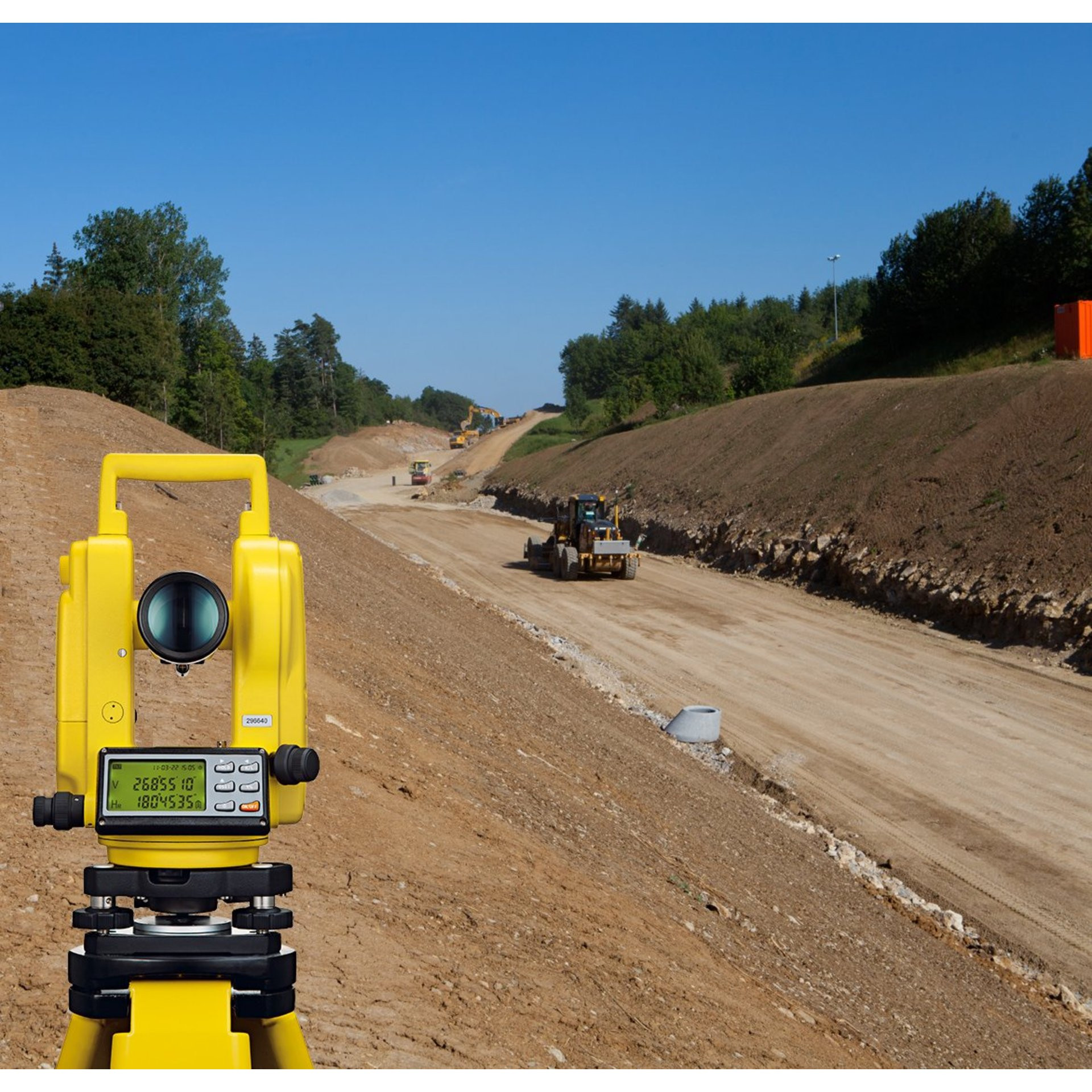

Determination of slopes and gradients in road construction.
-
Laser plummet
-
With 2" angular measuring accuracy for demanding tasks.
Variants
Variant
Equipment
Execution
Technical Data
| Addition constant | |
|---|---|
| Operation temperature | - 20°C to + 50°C |
| Display | on both sides |
| Weight with battery + tribrach | 4500 g |
| Shortest target distance | 1.35 m |
| Lot | Laser plummet, visible |
| Multiplication constant | 100 |
| Lens aperture | 45 mm |
| Power supply | Rechargeable NiMH, spare alkaline battery pack |
| Environmental conditions | Dust and waterproof, IP54 |
| Enlargement | 30 times |
| Angular accuracy | 2 " |
| Product Number (PID) | 27011000 |
Highlights at a Glance
-
With vertical compensation and 2 accuracy, Zipp02 delivers the accuracy you need for your most demanding tasks
-

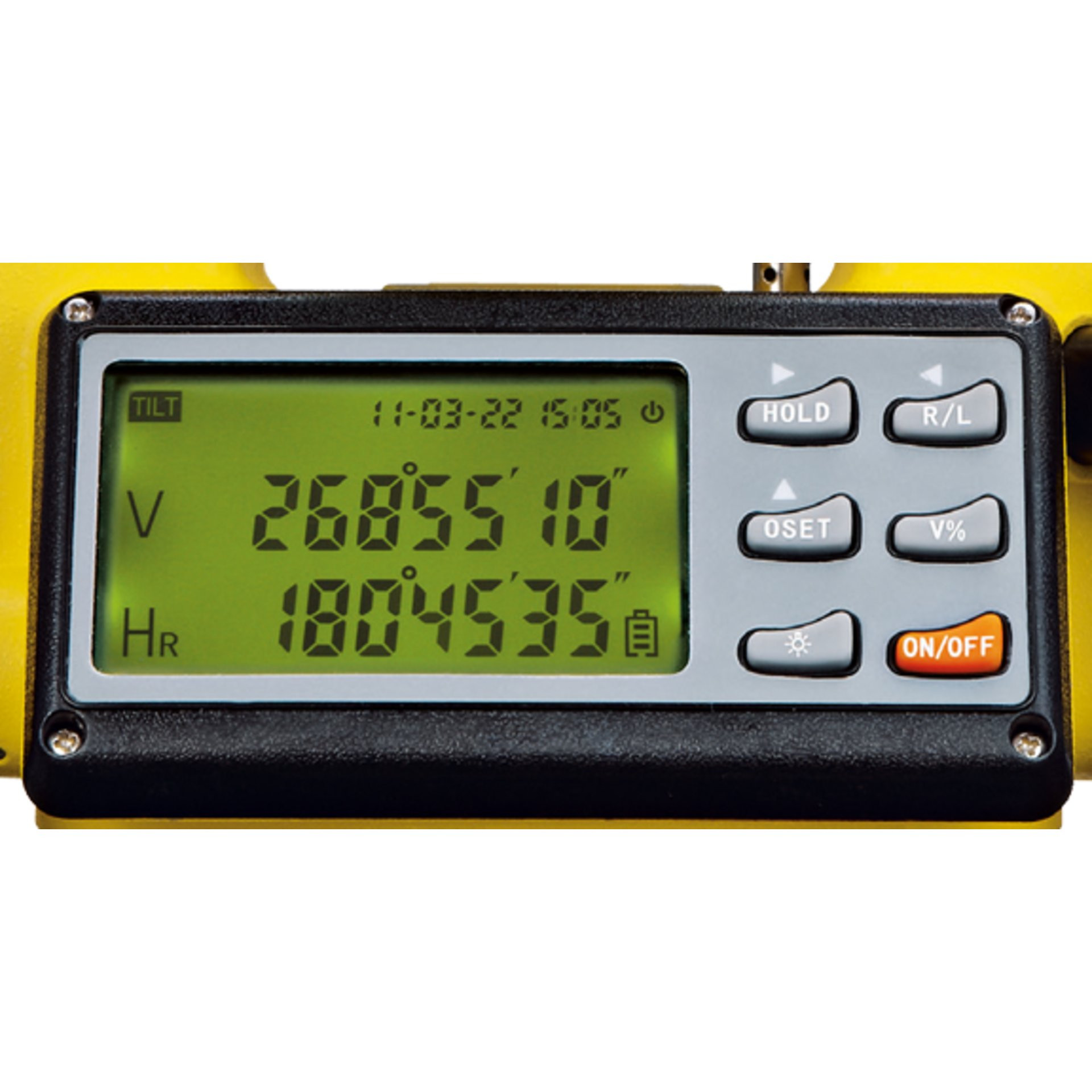

Different display modes
-
The visible laser plummet makes setup over a point easy and faster than ever before.
-
No complexity
-
Simple operation
Description
A theodolite is an angle measuring instrument used to measure horizontal and zenith or vertical angles and for alignment work. The GeoMax Zipp02 digital theodolite is particularly suitable for general site work that requires accurate angle measurements. With angle error compensation and 2" accuracy, the Zipp02 delivers the accuracy needed for even the most demanding tasks. The simple operating concept with only six buttons, consistently dispenses with superfluous complexity. The visible laser plummet allows the Zipp02 to be quickly and safely stationed over a point, making it the perfect tool for checking angles and alignments, as well as for short-range work such as slope work and levelling.

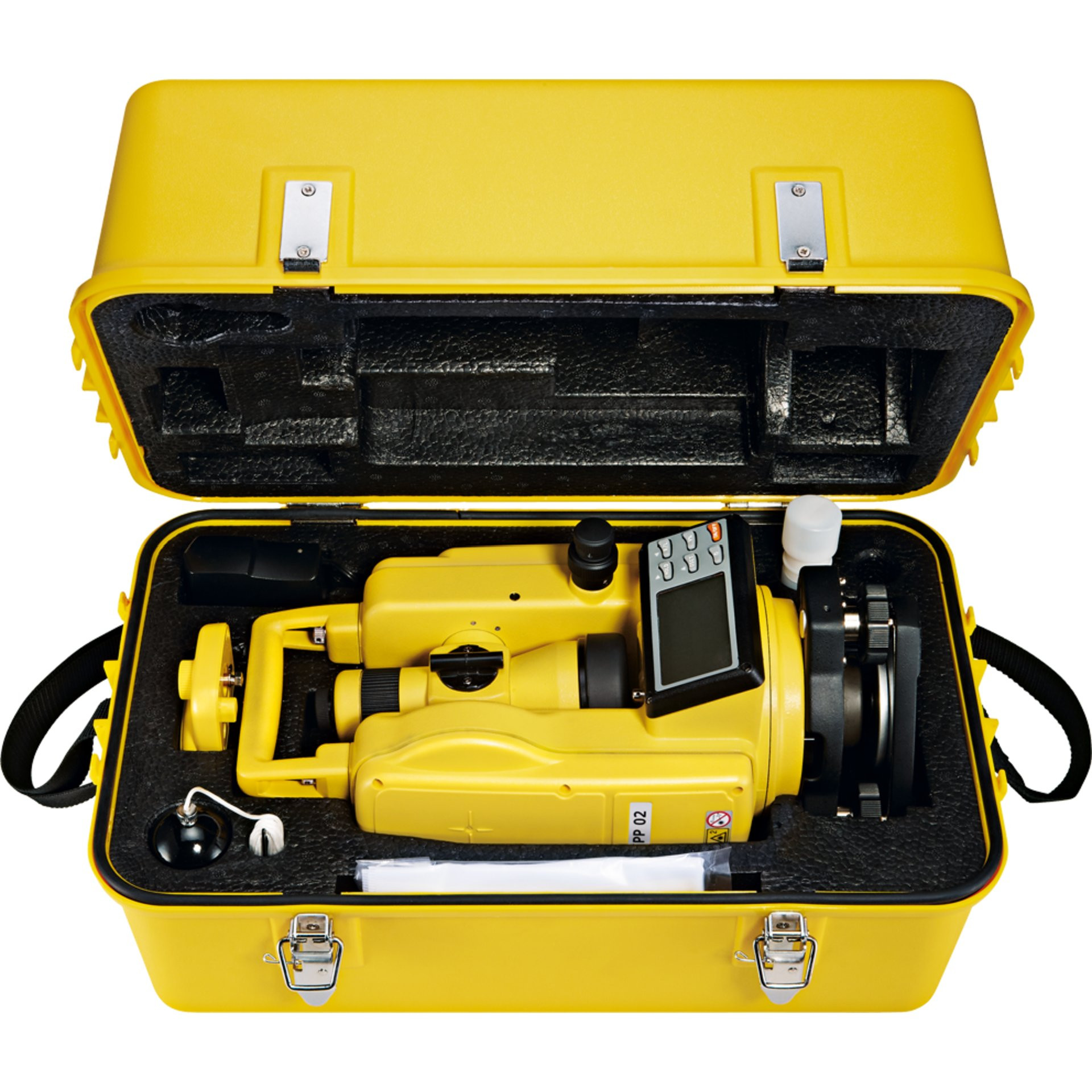

Scope of Delivery
GeoMAX Zip02
Rain cover
Plumb bob
Sun visor
Drying cloth
Tool set
Manual
Transport case
