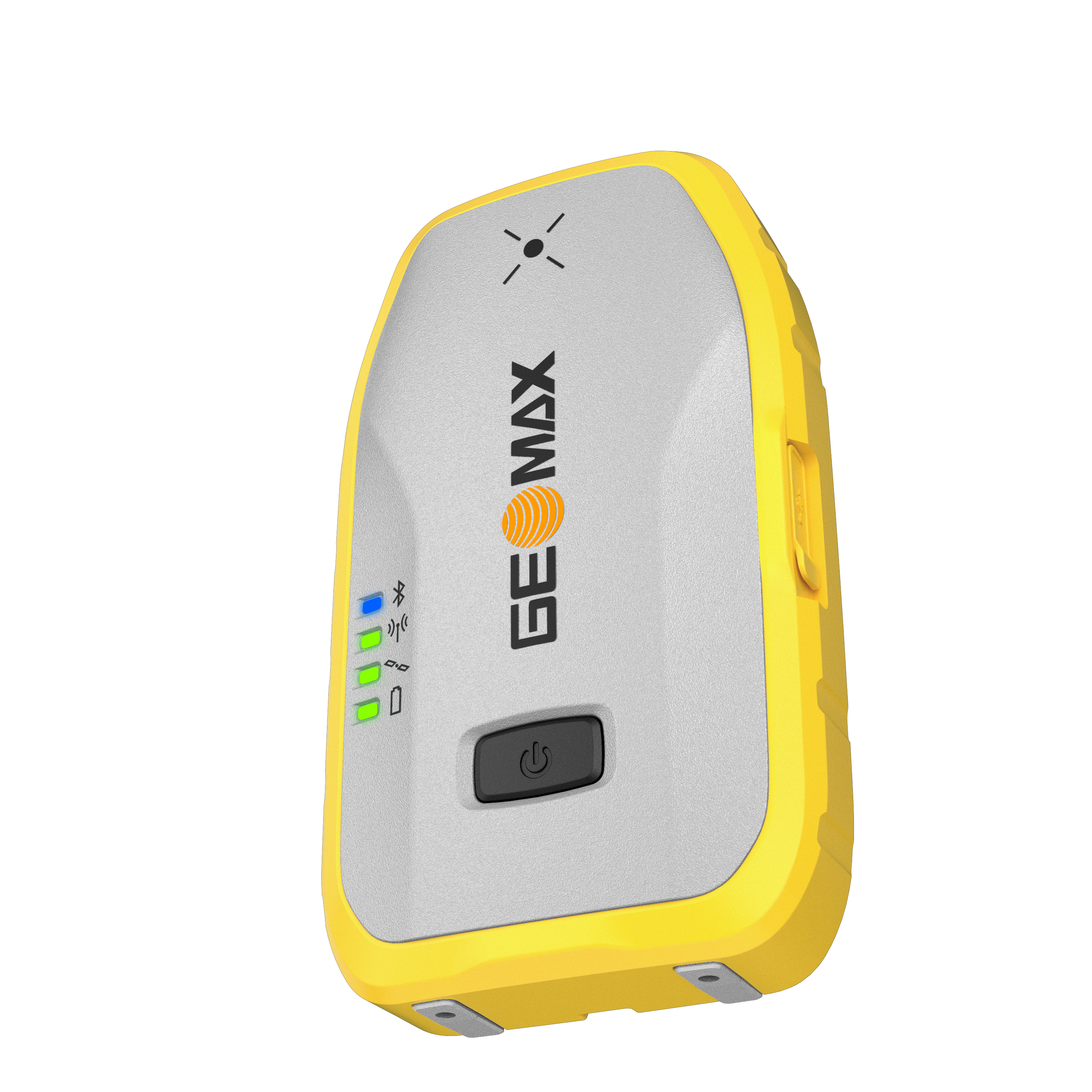

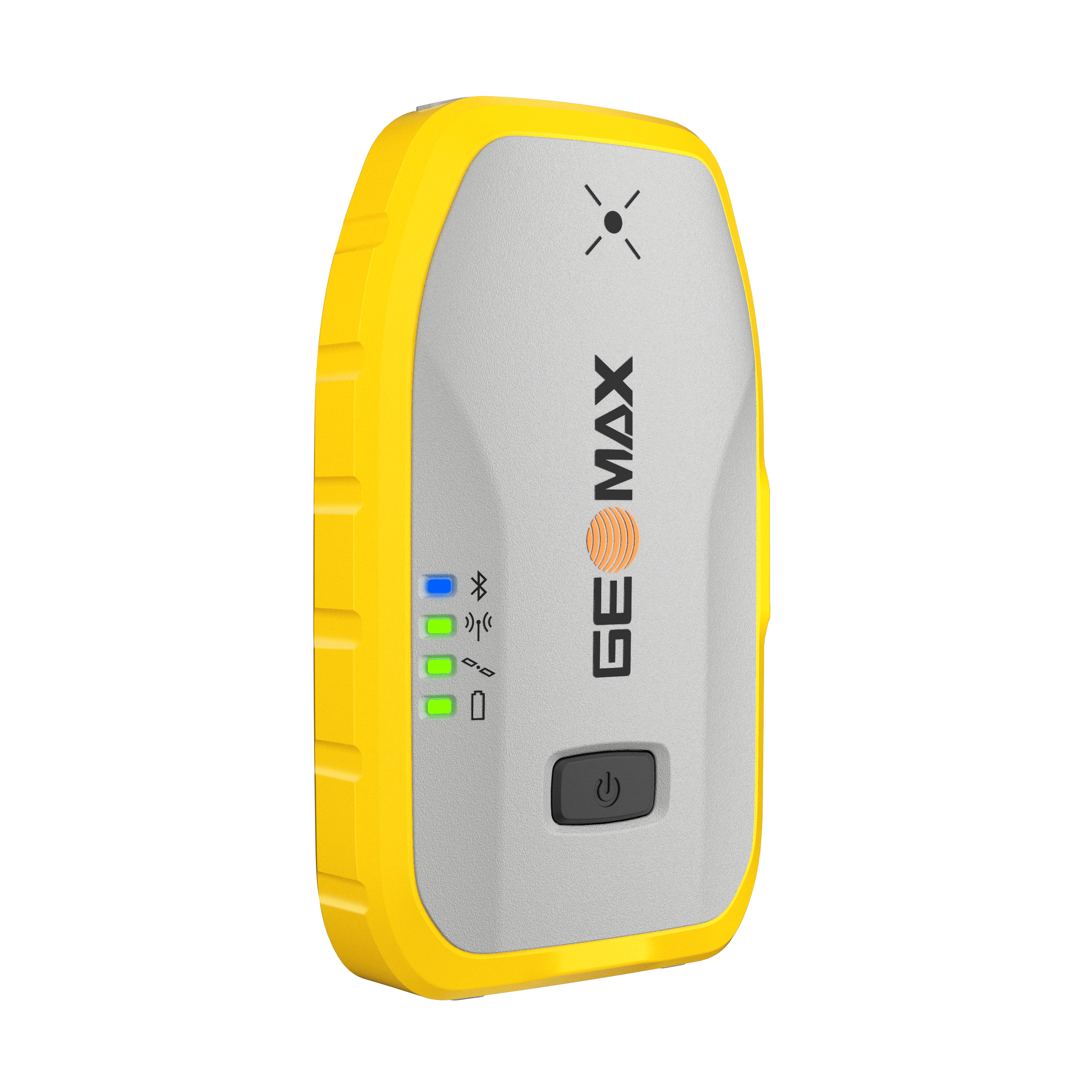

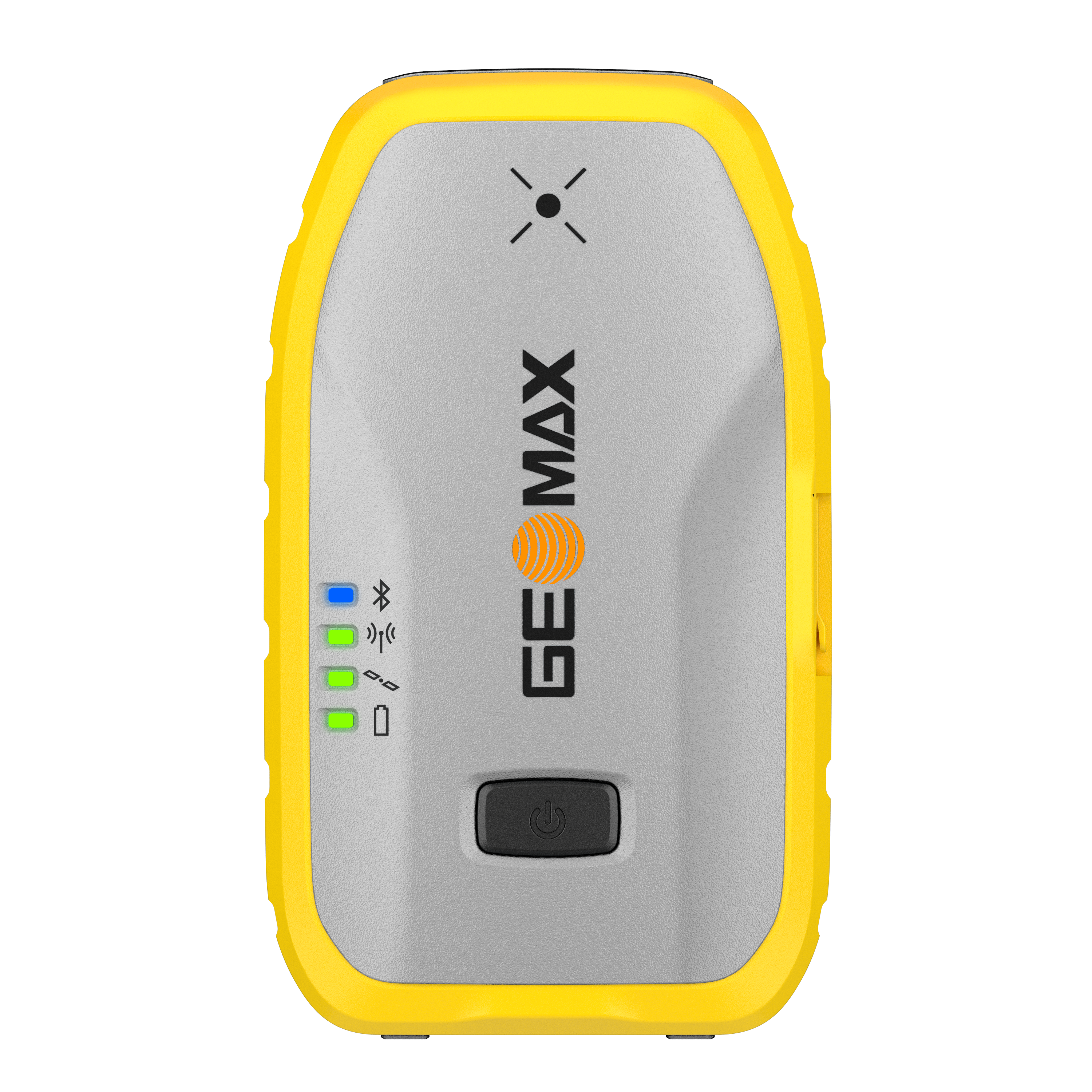

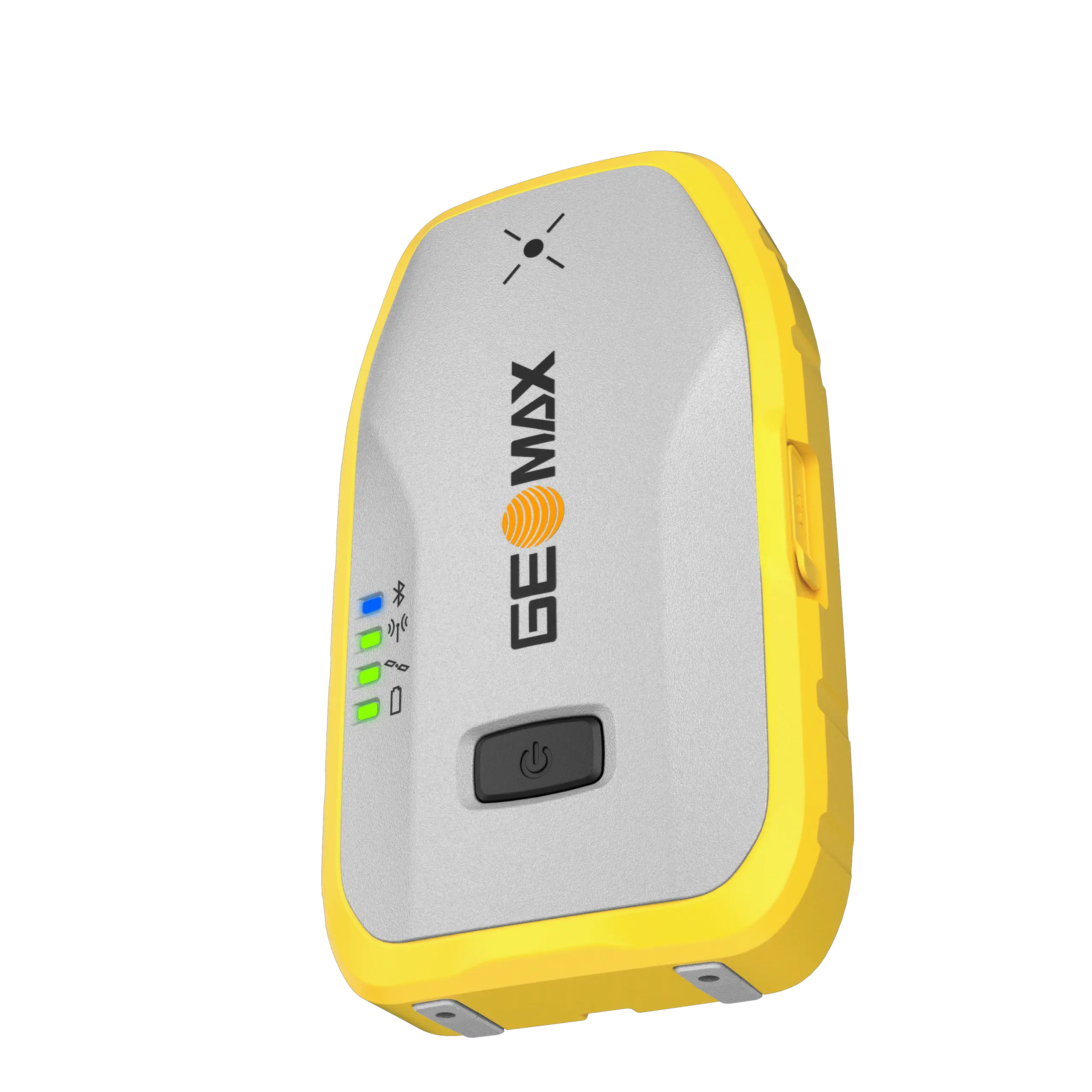

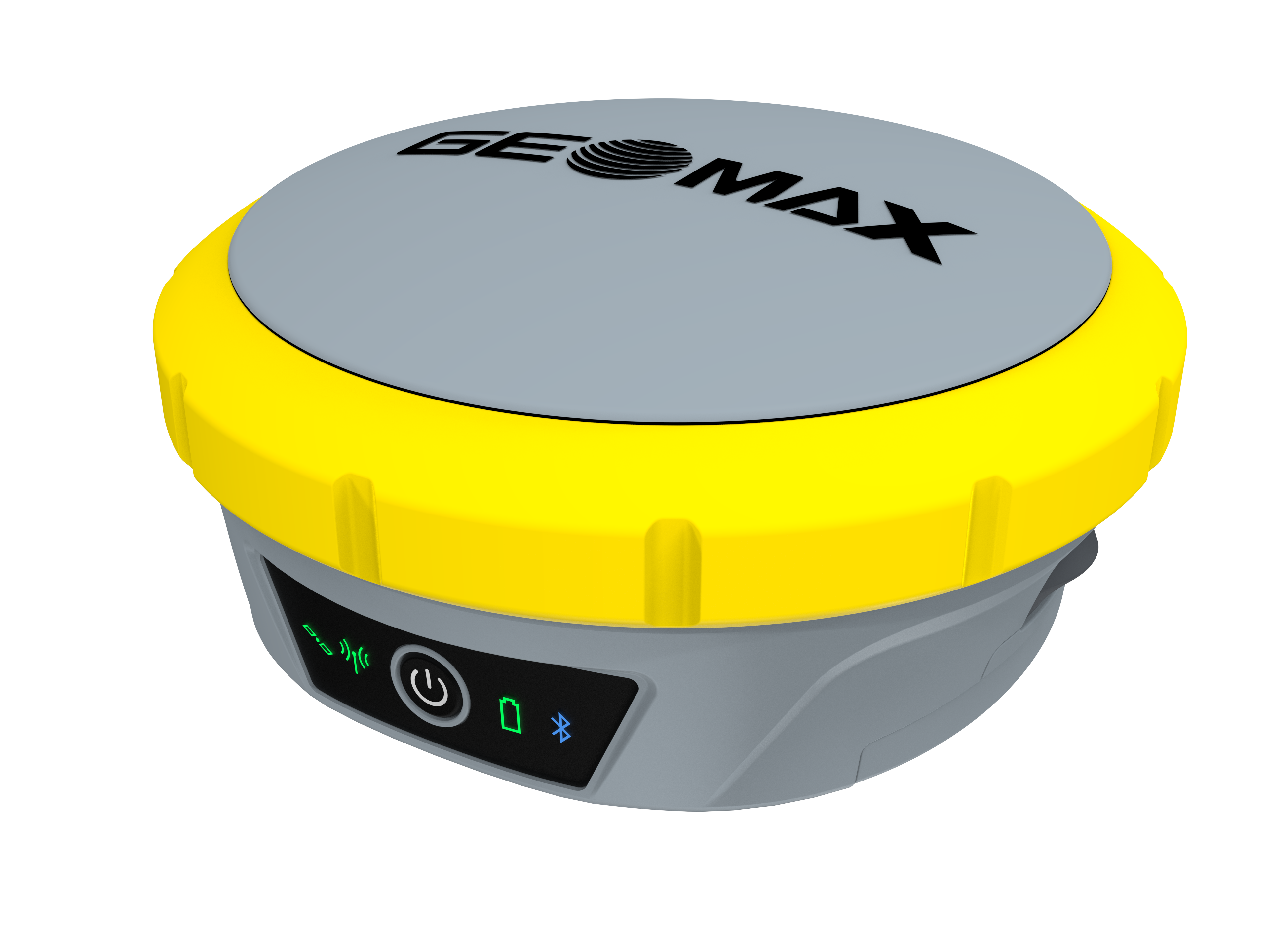

GeoMax Zenith06 Pro

Tilt easy, measure fast

Top Features

  • Calibration-free tilt compensation
  • 184 channels, multi-constellation
  • Fully integrated into the Geomax product environment
  • Compact and lightweight design

Variants

Variant

Technical Data

GNSS Tracking GPS, Glonass, Galileo, BeiDou, QZSS, SBAS
Channels 184, multi-constellation
Tilt compensation Calibration-free, Resistant to magnetic interferences
Interfaces and connection Power button, LED status indicator, Bluetooth, USB Type C
Working time > 20 hours
Working temperature -40°C to +65°C
Accuracy RTK Hz 20 mm + 1 ppm, V 30 mm + 1 ppm
Accuracy RTK - tiltmode additional Hz uncertainty 2 cm up to 30° inclination
Protection class IP67
Dimensions 139 mm x 81 mm x 31 mm
Weight approx. 340g
Product Number (PID) 29538000

Highlights at a Glance

  • Measure quickly and flexibly without holding the pole vertically.
  • Benefit from the tools of the X-PAD field software, which simplify common GNSS positioning tasks.
  • Protection class: IP67 protection against dust and water.

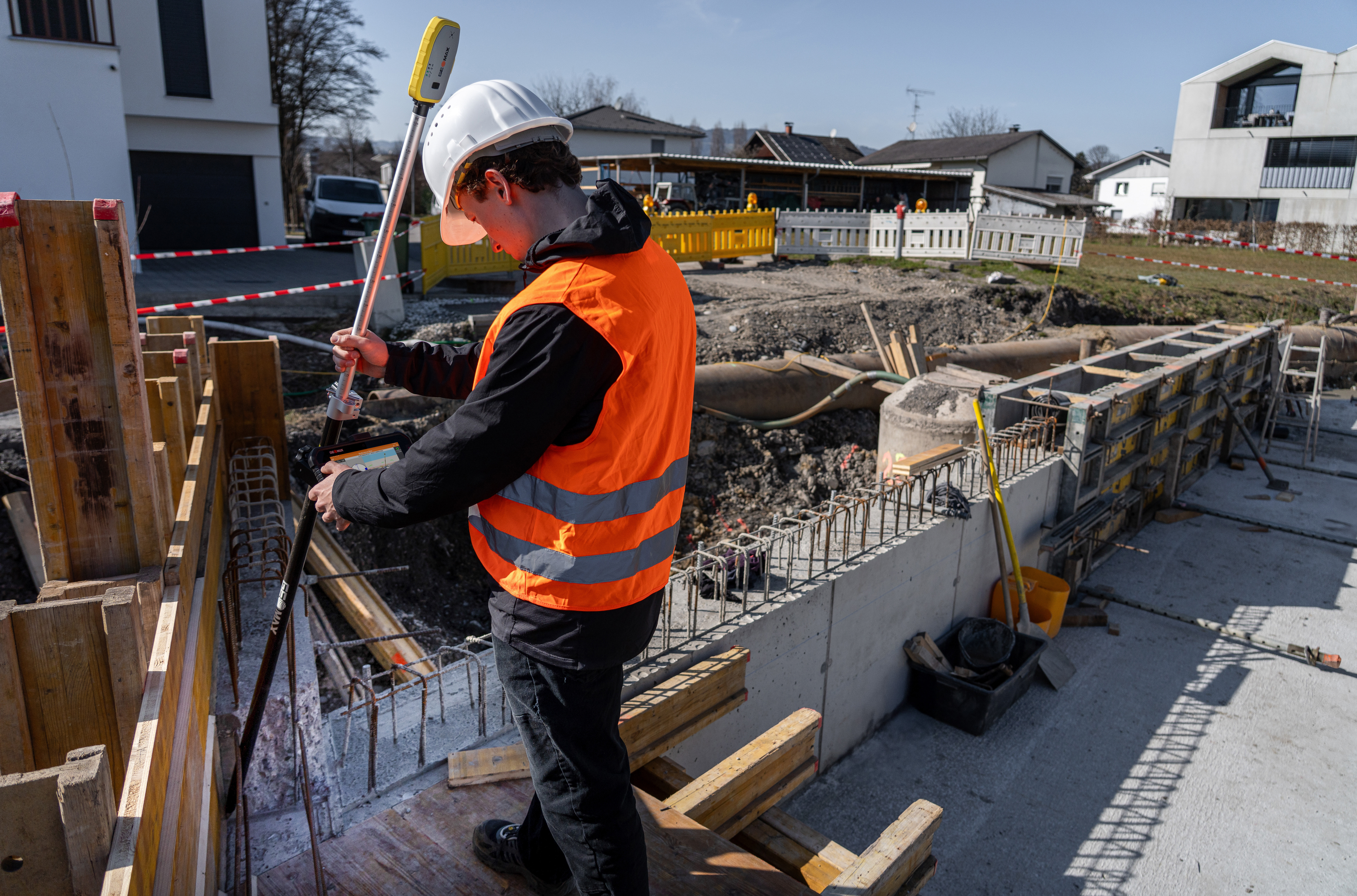

  • Work with confidence even in demanding construction environments thanks to the durable construction.
  • GPS, Glonass, Galileo, BeiDou, QZSS, SBAS satellite tracking

Description

The Zenith06 Pro is an easy-to-use and compact GNSS smart antenna with tilt compensation that offers professional-grade positioning accuracy in the field. Get reliable results quickly and gain access to difficult points for overall productivity gains.

Fully integrated with user friendly X-PAD Ultimate field software, the Zenith06 Pro streamlines your workflow, making construction tasks like stake-out, grade checking, and data collection faster and easier.

Scope of Delivery

Zenith06 Pro
power adapter
USB-C charging cable
soft bag
pole mount 5/8"
Quick Guide
