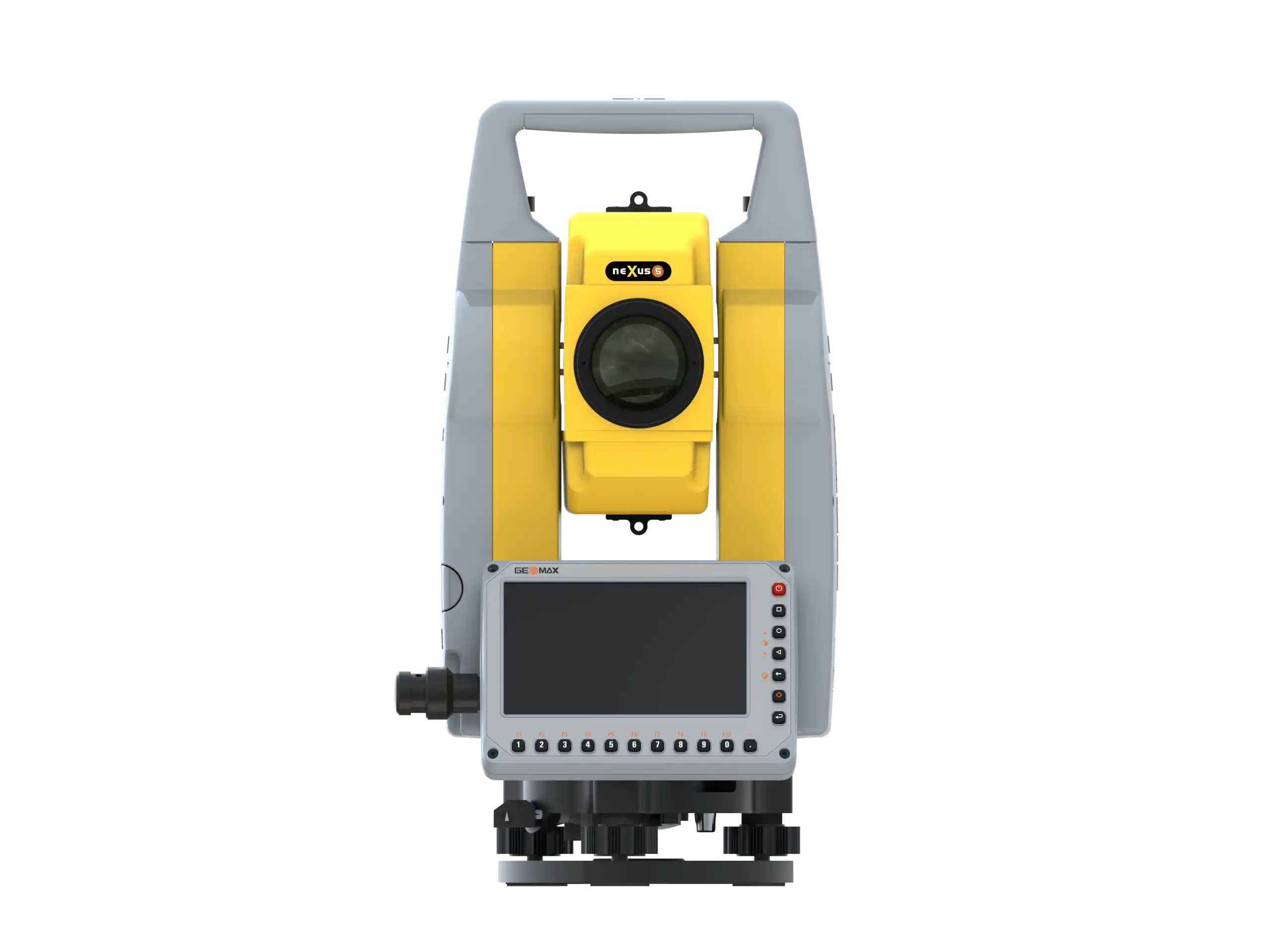

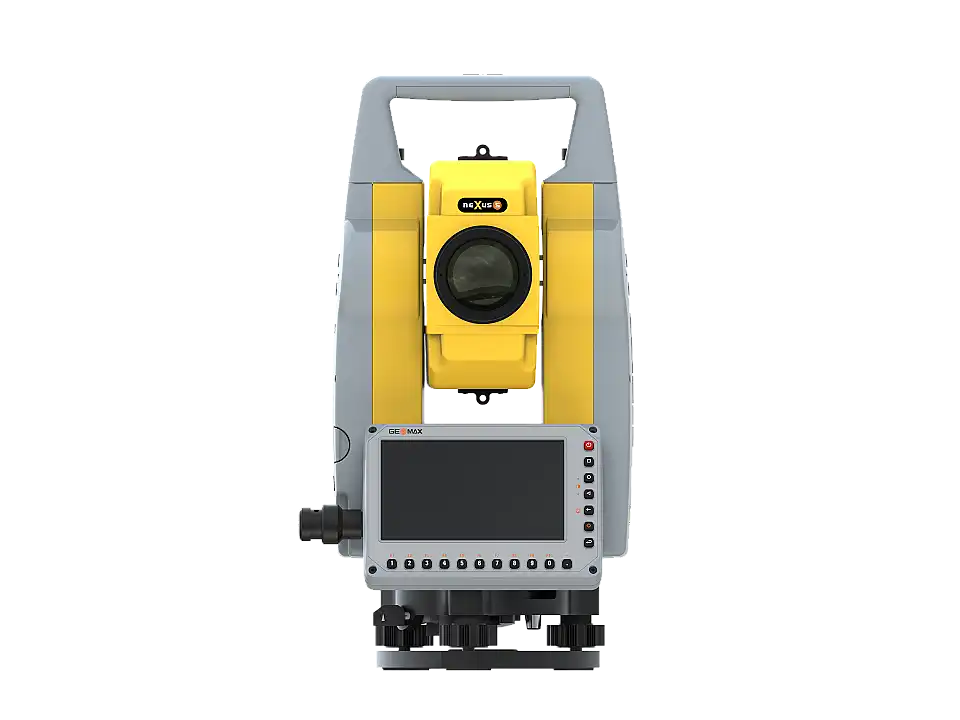

Total Station GeoMax Zoom45, neXus5
Die manuelle Totalstation für The manual total station for surveying and layout tasks
Top Features
-
Robust design combined with high precision
-
Large 5" screen and 18 buttons
-
Android 11 operating system
-
Laser plummet
-
5" version (29061000) or 2" version (29062000)
Variants
Variant
Technical Data
| Power / Operating time | Li-Ion 6.4 Ah / 7.4 V / up to 8 hours |
|---|---|
| Interface | USB mini, Bluetooth, WLAN |
| Accuracy prism measurement | 2 mm + 2 ppm |
| Accuracy reflector less | 3 mm + 2 ppm |
| Accuracy angle measurement | 5“ (29061000) or 2" (29062000) |
| Weight | 5.1 kg (without battery) |
| Range reflector less / one prism | up to 500m / up to 5000m |
| Protection class | IP55 |
| Operating temperature | -20°C to +50°C |
| Operating System | Android 11 |
| Product Number (PID) | 29061000 |
Highlights at a Glance
-
The Zoom45 offers accuracy, rapid point measurements and a digital workflow, enhancing the value for your investment.
-
The Zoom45 with Android 11 operating system easily connects to software and devices across the GeoMax ecosystem, including X-PAD Ultimate field software.
-

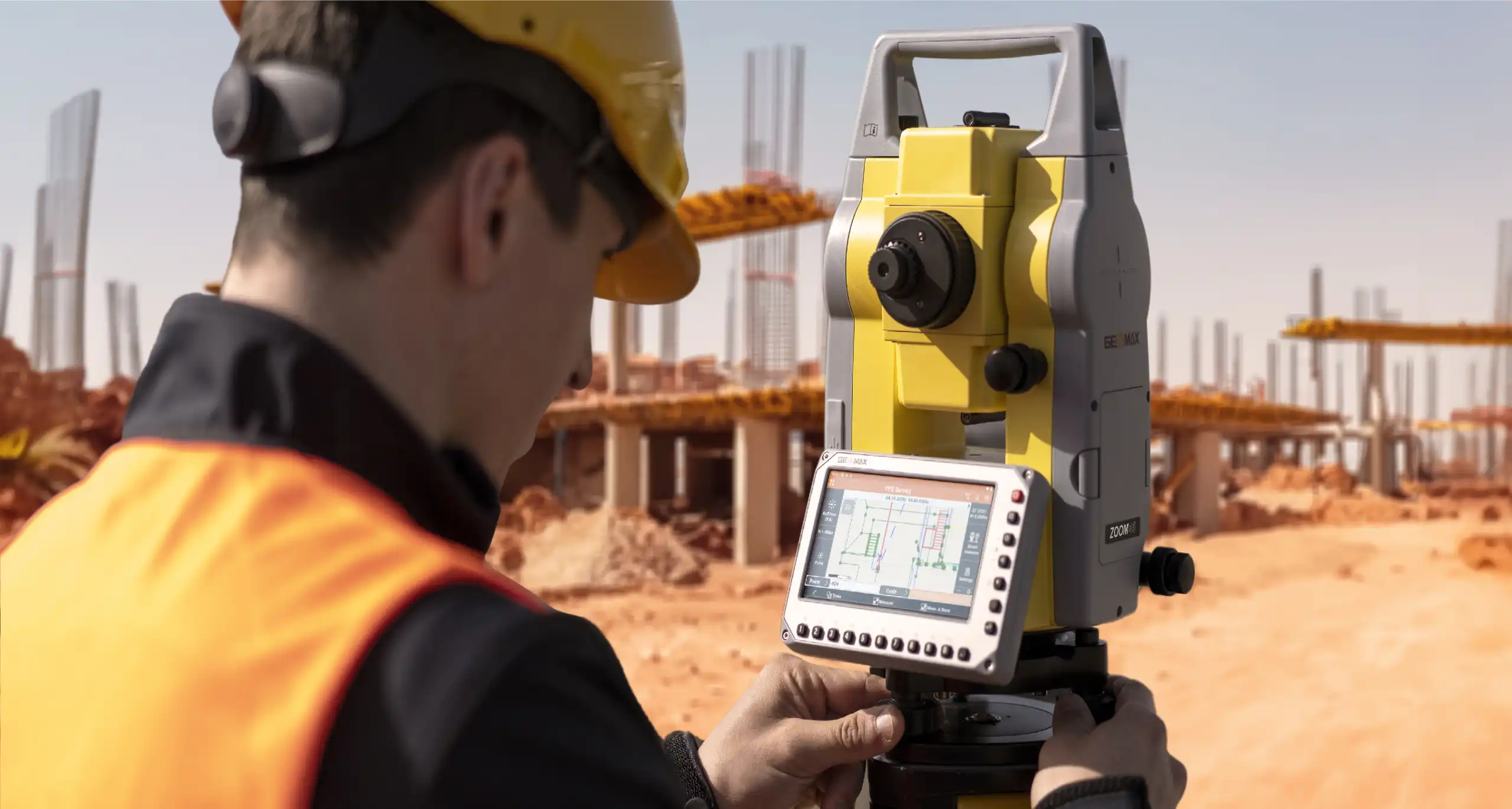

The Zoom45’s 5-inch touchscreen display is optimal for working with graphics in X-PAD on construction sites and across environmental conditions.
-
Second display available as an option.
-
Measure up to 500m reflectorless.
Description
The Zoom45 is the go-to manual total station for construction surveyors and operator crews, combining rapid point measurements, durability, and straightforward operation. An ideal companion for the construction site, the Zoom45 runs X-PAD Ultimate field software with a large screen for graphical views, enabling fast measurements and layout using the instrument alone or paired with a field controller.
Additionally, easily exchange data with the office via X-PAD 365 and continue working in the same software ecosystem, bringing an efficient digital dataflow to your work with manual total stations.
Scope of Delivery
Zoom45
1 x battery
charging cradle with power supply
12V plug for charging cradle
tribrach
rain cover
quick guide
transport case
