NESTLE PULSAR 2S

Fully automatic tilt laser with intuitive operating concept

Top Features

  • Including laser receiver PDRG95 with mm display.
  • Set up, switch on, let's go! No tedious adjustment.
  • Complete package with receiver and target plate.
  • Sturdy aluminium housing
  • High visibility

Variants

Execution

Technical Data

Working area with receiver Ø 600 m
Operating time 20 Hours
Weight 3100 g
Laser diode / colour 635 nm, class 2 / red
Dimensions 215 x 190 x 210 mm
Tilt ± 8% two axes simultaneously
Rotation speed 0; 60; 120; 300; 600 Rpm
Protection class IP65
Self-levelling range ± 5°
Temperature range -20 °C to +50 °C
Tolerance (Defined at 25°C in horizontal application) ±1 mm per 10 m
Product Number (PID) 16018001

Highlights at a Glance

  • Highest quality workmanship.
  • Ideal for tough construction use, thanks to its solid and thick-walled aluminium housing.
  • Laser diode used significantly increases visibility indoors.
  • Battery charge level indicator in the display.
  • The laser can also be operated vertically.

Description

The NESTLE PULSAR 2S is a fully automatic multi-function laser with an intuitive operating concept and clearly laid out function programme and display. Its horizontal and vertical operation make this rotating laser ideal for all measuring tasks for indoor and outdoor work. Before rotation, the 2S automatically levels itself; all functions are possible both vertically and horizontally. Complete package with remote control, including laser receiver PDRG95 with mm display, unique in this class!


Further compact information:

Info case PULSAR

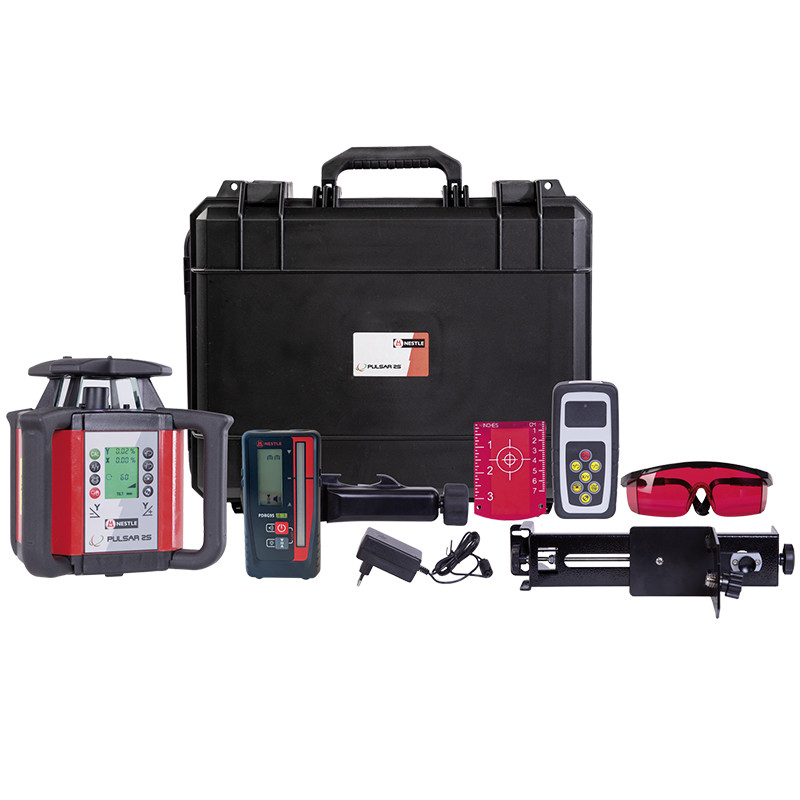

Scope of Delivery

NESTLE PULSAR 2S
Carrying case
Laser receiver PDRG95 with clamp
Charger
Target board
Wall mount
Laser goggles
Remote control
