NESTLE PULSAR 2S SET

Tilt laser for quick and easy measurements

Variants

Execution

Technical Data

Working area with receiver Ø 600 m
Operating time 20 Hours
Weight laser 3100 g
Laser diode / colour 635 nm, class 2 / red
Dimensions laser 215 x 190 x 210 mm
Rotation speed 0; 60; 120; 300; 600 Rpm
Protection class IP65
Self-levelling range ± 5°
Temperature range -20 °C to +50 °C
Tolerance (Defined at 25°C in horizontal application) ±1 mm per 10 m
Tilt two axes simultaneously ± 8 %
Product Number (PID) 16022001

Highlights at a Glance

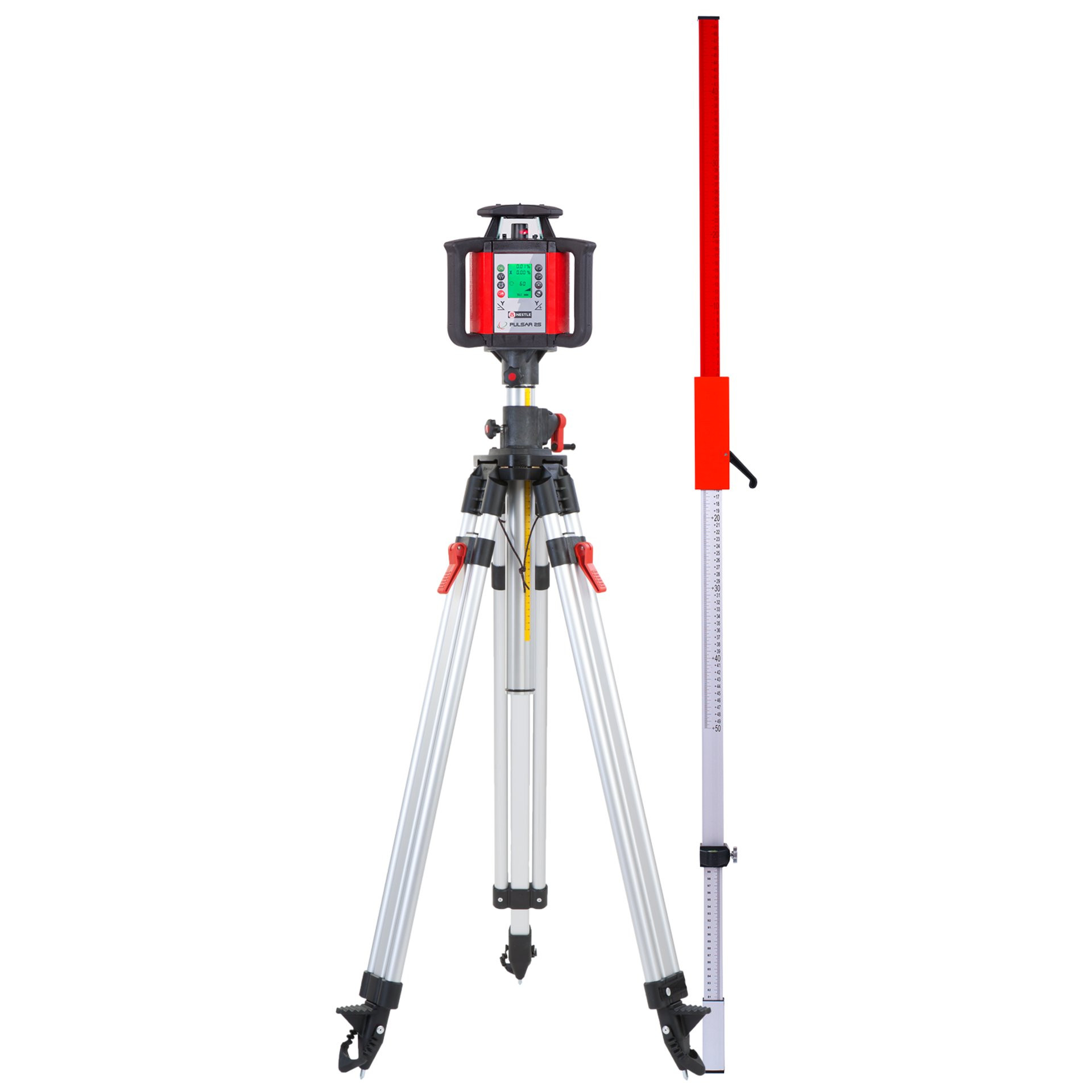

  • Practical set consisting of:
  • NESTLE Multifunction Laser PULSAR 2S

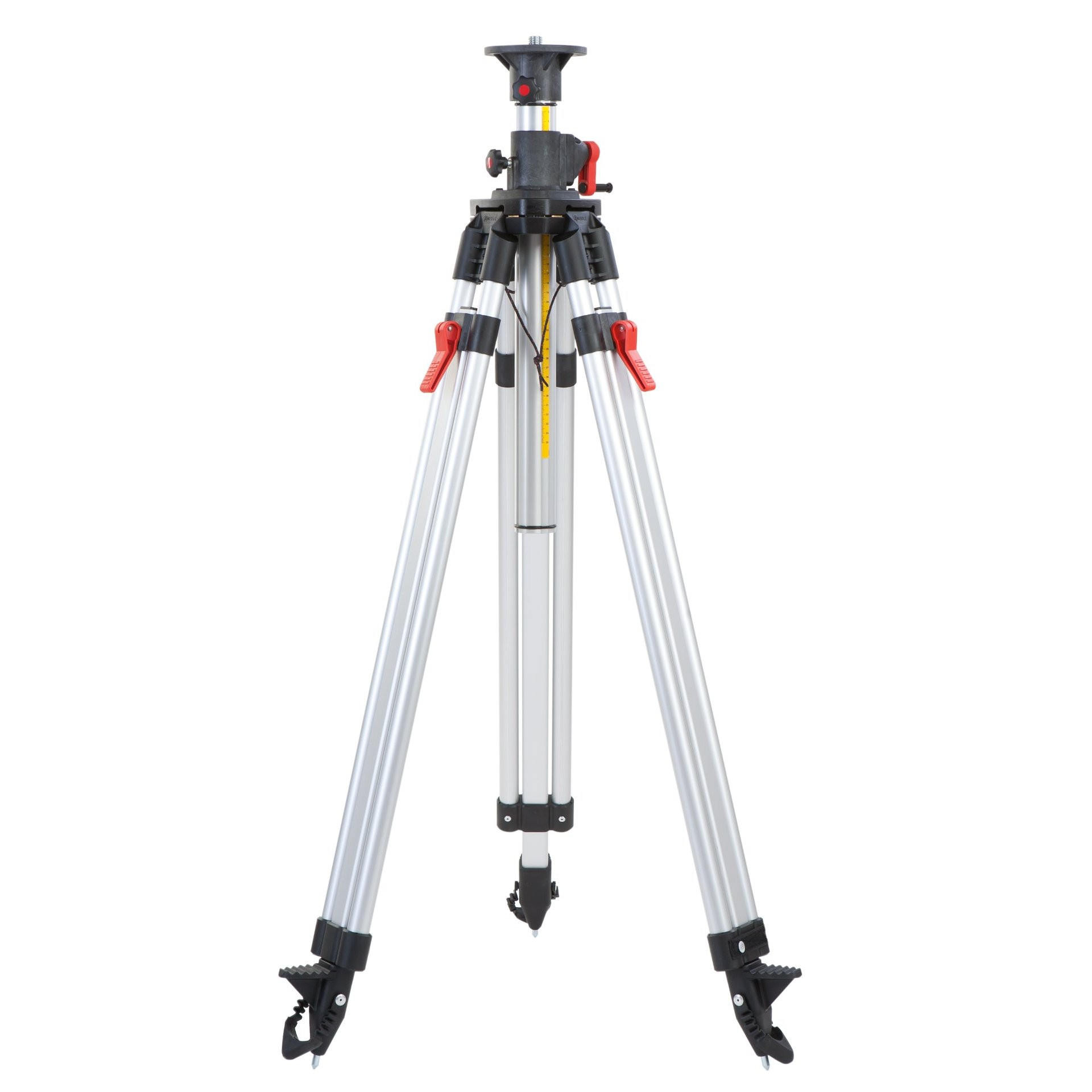

  • NESTLE elevating tripod, medium aluminium version, self-impending

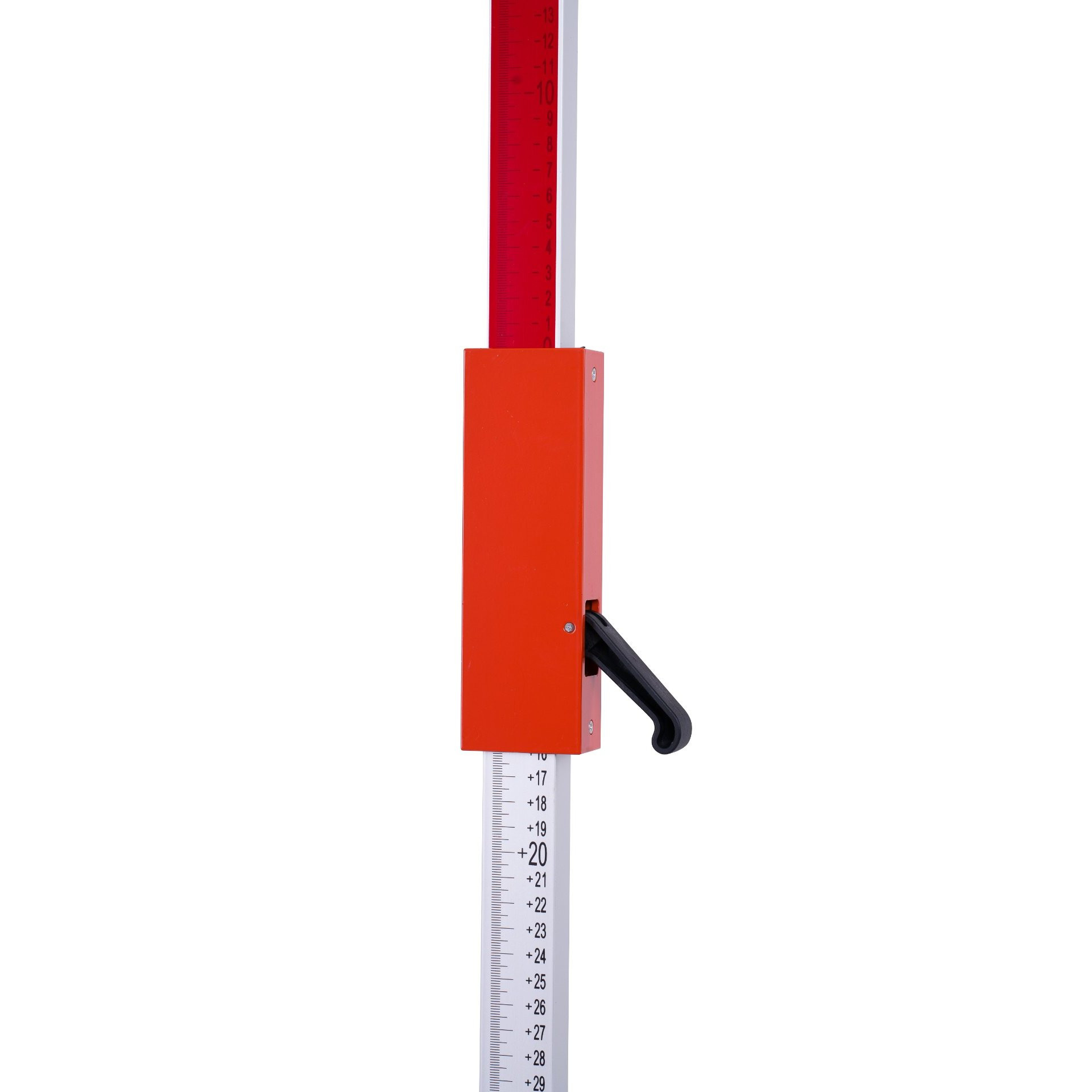

  • NESTLE laser bar with sliding adapter and clamping lever (length 130 240 cm)
  • NESTLE laser receiver PDRG95 with mm display.

Description

The NESTLE Pulsar 2S is a fully automatic multifunction laser with an intuitive operating concept and clearly laid out function programme and display. Its horizontal and vertical operation make this rotating laser ideal for all measuring tasks for indoor and outdoor work. Before rotation, the 2S automatically levels itself and all functions are possible both vertically and horizontally. The Pulsar 2S is supplied as a set with tripod and laser rod. Complete package with remote control, including laser receiver PDRG95 with mm display, unique in this class!


Further compact information:

Info case PULSAR

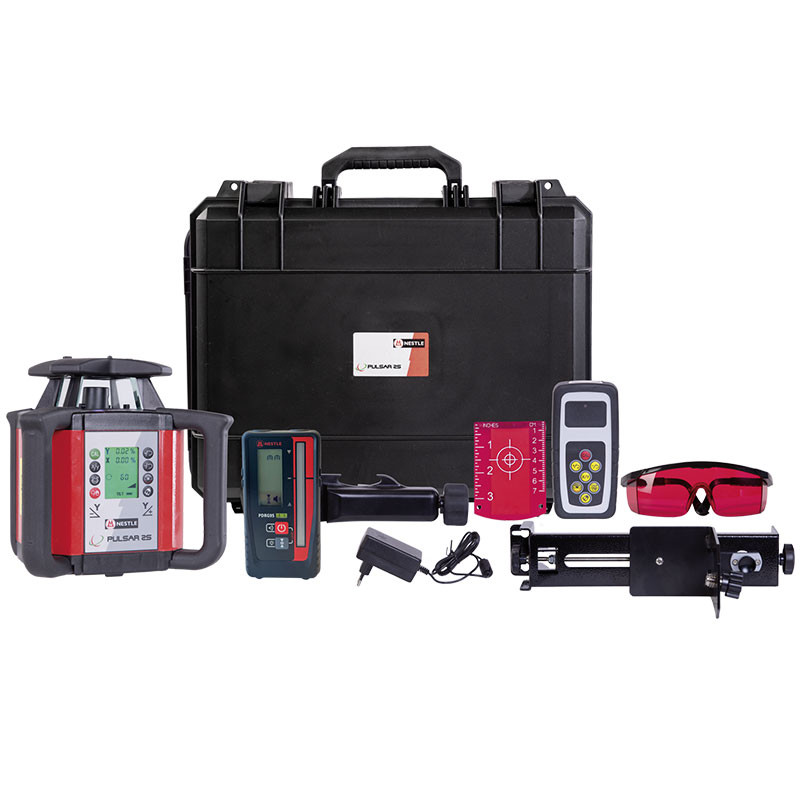

Scope of Delivery

NESTLE Multifunction Laser PULSAR 2S
NESTLE laser bar with sliding adapter and clamping lever (length 130 240 cm)
NESTLE elevating tripod, medium aluminium version, self-impending
Carrying case
Laser receiver PDRG95 with clamp
Charger
Target board
Wall mount
Laser goggles
Remote control
